Summary of Contents for Aratek Biometrics Technology BM7500

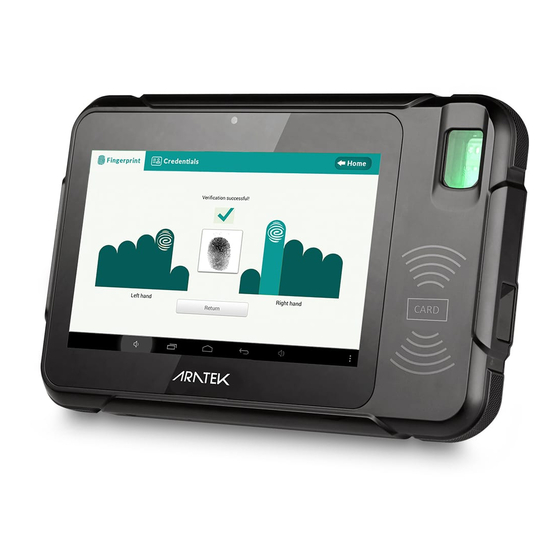

- Page 1 Fingerprint Smart Terminal Model No.: BM7500 User’s Manual V1.3 - 1 -...
-
Page 2: Table Of Contents
Thank you for your purchase of the fingerprint smart terminal BM7500 series (hereinafter referred to as "the device"). Please read the manual carefully to ensure safe and satisfactory operation, and keep the manual for future reference. This manual is applicable to following type of products:... -
Page 3: Warm Tips
1. Warm Tips (1) The manual is subjected to change without prior notice. (2) The manual is a general guide for the product. Functions might be increased or reduced due to customized needs. Please contact local distributors for details. 2. Warning ★... - Page 4 c). Carapace of the product (2) Components Name Function Front camera 2 mega pixels Fingerprint To place the fingers on the window capture sensor the fingerprint Reading area Put the ID card near the zone Power On/off Reset Restart the machine forcefully Microphone For call or recording UART port...
-
Page 5: The Quick Start Guide
4. The Quick Start Guide (1) Charging operation AC adapter is USB port adapter. Plug the USB connector into adapter’s USB port while the other side into the device’s Micro-USB port. Plug in AC adapter for Charging. (2) On/off operation When the device is power-off, long press the power key for 5 seconds, and the device vibration or screen-on indicates start-up. -
Page 6: The Index
5. The Index Hardware Parameters Items Detailed description 1.3GHz GHz Quad-Core Processor Display 7.0 Inch Display ，1280× 720 pixels Touch Screen Capacitive Touch Screen 1G RAM SIM card Standard dual Micro SIM Card Onboard 8G ROM Data Expandable TF Card（up to 64G) Memory Camera Front... - Page 7 Wi-Fi support Wireless Bluetooth4.0 support support Power Battery Li-polymer6000mAh/10000mAh AC supply DC 5V/1.5A USB cable OS（Operating System） Android 4.4 Accessories AC adapter USB Cable Machine Weight 780g Dimension 235mm*147mm*28mm Extensive Function Built-in QR decoder (Optional) Working temperature ：0℃～70℃ Operating Environment Relative humidity≤90% Temperature for Storage and -40～60℃...
-
Page 8: About The Battery
Image sensor 752*480 CMOS illumination Red Light LED 625± 10nm QR code identification 2Dbarcode PDF417, Data Matrix, QR Code； code system 1Dbarcode UPC/EAN,Code39,Code128,code93； Recognition Revolve 360*, incline +50*,deflection+50* view Second technical Meet the standard of ISO/IEC 14443 type B, The generation standard General Technique Requirements of GA450-2003... - Page 9 7. Optional Genuine Accessories (1) USB data cable (2) AC adapter (3) Battery (4) Carapace 8. Simple Troubleshooting Guide phenomenon Cause Operation Not full insertion of AC Check plug insertion Abnormal Charge adapter into household outlet Poor contact of USB port Ensure good contact of USB port Normal phenomenon under Avoid using in a too hot...
- Page 10 If abnormal situation of any accessory happens, contact local authorized agent for replacement or maintenance. reference number ：BM7500-manual-V1.3 version number:V1.3 issue date: 29- march-2016 Manufacture ：Aratek Biometrics Technology Co.,Ltd. Model No.：BM7500 Address: 2F, T2-A Building, ShenZhen Software Park, South Area, Hi-Tech Park, ShenZhen, Guangdong, China Website: www.aratek.com.cn...
- Page 11 The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: (FCC ID: 2AGUJ-BM7500) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 0.620W/kg. This device was tested for typical body-worn operations with the back of the handset kept 0mm from the body.
