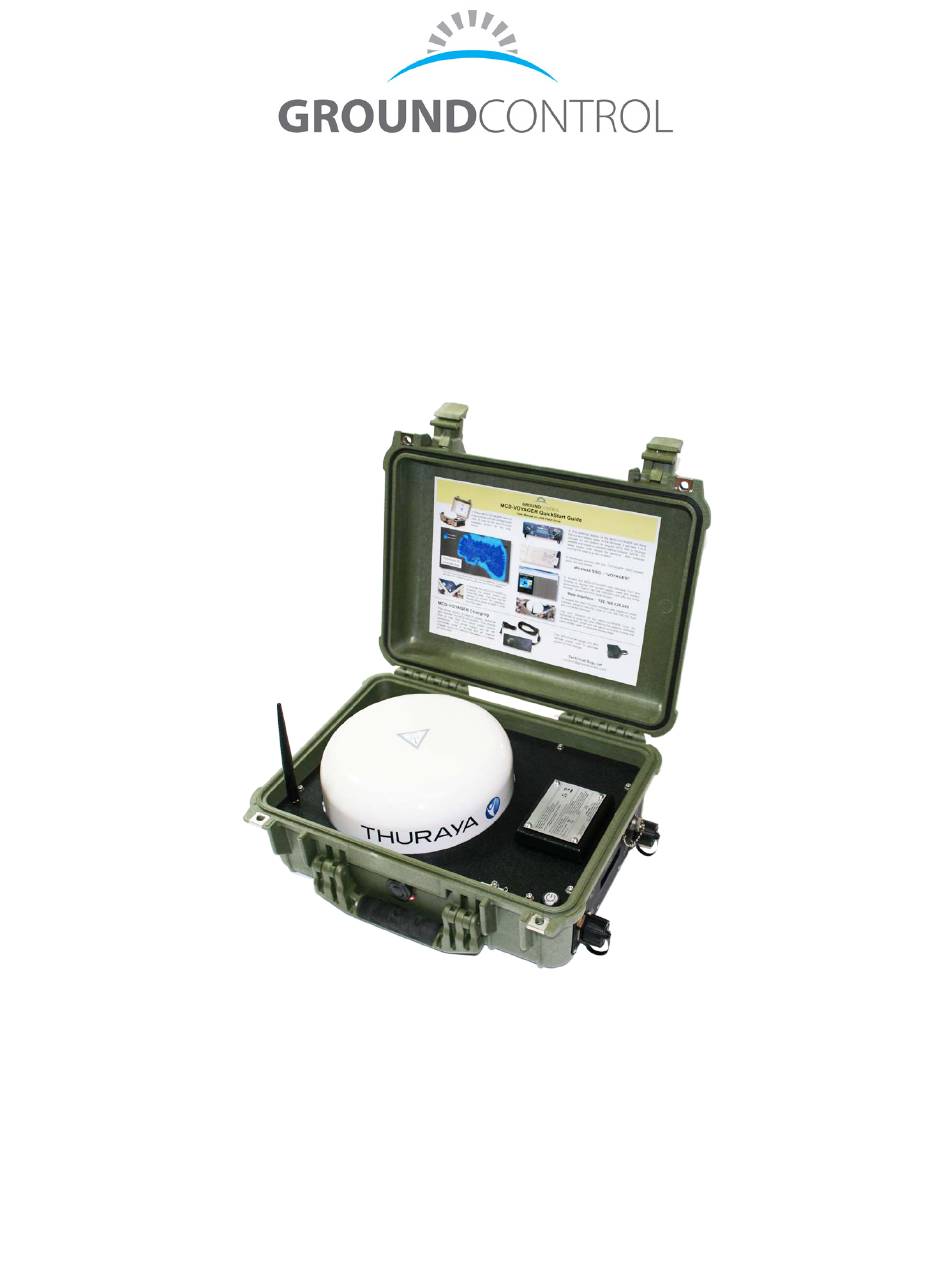

Page 1 MCD-Voyager User Manual MCD-VOYAGER USER MANUAL Ground Control v1.3...
Page 2: Table Of Contents
MCD-VOYAGER SYSTEM CONTENTS ..................7 INSIDE THE MCD-VOYAGER ....................... 8 SYSTEM OPERATION ......................... 10 WIFI SECURITY ........................... 12 ACCESSING THE MCD-VOYAGER WEB INTERFACE ............... 13 USING THE LAN PORT ....................... 13 MONITORING USAGE ........................ 14 CHARGING FACTS ........................15 MCD-VOYAGER ACCESSORIES....................16 MCD-VOYAGER TECHNICAL SPECIFICATIONS ..............
Page 3 Important Safety Information for the Ground Control MCD-VOYAGER System Like all Thuraya IP systems, the MCD-VOYAGER is a transmitting satellite device. All persons should stay at least 1 meter from the case when it is operational. If you have additional questions regarding connecting or operating your...
Page 4: Mcd-Voyager Owner Identifiers
MCD-VOYAGER User Manual Ground Control MCD-VOYAGER Owner Identifiers Please fill out the information on this page with the account information supplied to you from Ground Control and keep this manual available in the field. Thuraya IP Service Provider: ______________________ MCD-VOYAGER Web Interface: 192.168.128.200...
Page 5: Mcd-Voyager Overview
- no pointing necessary. Within a minute, the MCD-VOYAGER becomes a wireless hotspot for any wireless device up to 100 meters from the case for up to 5 hours on the internal battery. The auto-pointing case uses the auto-acquire in-motion Thuraya terminal integrated with our proprietary mobile electronics for a ruggedized self-contained, in-field, user-friendly solution.
Page 6 PoE-IEEE 802.3af standard). Light Sensor – This sensor will backlight the display in darkness so the display can be read. From the MCD-VOYAGER control panel, the sensitivity of this sensor can be set, including always off. Display – Shows power up status and battery level.
Page 7: Mcd-Voyager System Contents
The MCD-VOYAGER includes the MCD-VOYAGER terminal, a USB flash drive with software and user manuals, a miniature compass, a mini-inverter, an AC/DC power supply/charger, an international plug kit that allows the MCD-VOYAGER to be charged from any country’s wall power, and an accessory bag to hold all loose accessories.
Page 8: Inside The Mcd-Voyager
We recommend having the case lid opened slightly in hot locations. WiFi Antenna – When raised, the WiFi antenna adds extra range to the MCD-VOYAGER wireless connection. This antenna is a standard RP-SMA type antenna and larger higher gain antennas can easily be mounted. Note the antenna needs to be folded down in order to close the case lid.
Page 9 Power – On/Off – When pressed, the power button will light up when the terminal is turned on. To power the system off, simple press the button again. The MCD-VOYAGER may be used on a moving vessel, even during heavy seas...
Page 10: System Operation
Ground Control System Operation STEP 1 – FIND AN OPEN AREA Lay the MCD-VOYAGER flat (top side up, as if to open the case), under an open sky. The terminal needs to have line-of-sight with one of the two Thuraya satellites.
Page 11 The MCD-VOYAGER will begin to search for a satellite, as well as attain a GPS location. A GPS signal will be quickly acquired if there is a wide sky above the terminal, otherwise it make take up to 3 minutes for GPS to be found.
Page 12: Wifi Security
MCD-VOYAGER User Manual Ground Control WiFi Security By default, wireless security is NOT enabled when the terminal is shipped. We recommend enabling WiFi security as soon as possible to keep the terminal from being used by unauthorized devices. To access the WiFi security screens, type in 192.168.128.100 into any connected browser window.
Page 13: Accessing The Mcd-Voyager Web Interface
An Ethernet cable may connect to the waterproof jack on the external LAN port of the MCD- VOYAGER. Twist off the weather cap and connect a standard Ethernet cable. The MCD-VOYAGER is normally set to DHCP (Dynamic Routing), which means it will automatically issue an IP address to any computer that connects to it.
Page 14: Monitoring Usage
MCD-VOYAGER User Manual Ground Control Monitoring Usage The amount of Megabytes transferred is shown on the Usage Statistics screen of the Voyager Web Interface. This screen is reached by entering 192.168.128.100 into any connected browser and selecting “Statistics” from the side menu.
Page 15: Charging Facts
Charging Facts Recharging the MCD-VOYAGER Internal Batteries The MCD-VOYAGER will operate about 5 hours on a single battery charge. To charge the system, simply connect the charger to the system. Charge time will take less than four hours if fully discharged.
Page 16: Mcd-Voyager Accessories
This lightweight 60+ watt solar panel will connect directly to the MCD- VOYAGER for both power assist and recharging. Recharge time is 10-12 hours in full sunlight. If the MCD-VOYAGER is turned on, the solar panel will power assist up to 75% of the power needed, extending the 5 hour battery life 300% to 400%.
Page 17 VOYAGER from any vehicle power port or battery or any DC power source. Includes quick-connecting alligator clips & vehicle power port connector. Input - 12VDC (vehicle battery) Output 24VDC. This accessory is essential for charging the MCD-VOYAGER in no-power locations. MPN: MCDVOYDCVEHICLE Battery Connector Cable 36"...
Page 18 Ground Control MCD-VOYAGER 5 Year Extended Warranty This is a 48 month extension on the standard 12 month warranty. Standard & Extended warranties include replacement parts & labor. SKW: MCDVOY5YWAR The MCD-VOYAGER is watertight, and operates with the case lid closed.
Page 19: Mcd-Voyager Technical Specifications
Ground Control MCD-VOYAGER Technical Specifications MCD-VOYAGER Contents The MCD-VOYAGER integrates with Thuraya Voyager terminal enclosed in a hardened Pelican 1450 case (Flyaway Case) with our proprietary electronics and software. System components include an AC/DC power-supply / charger with international plug adapters (US, UK, AU, EU, China, N.
Page 20 1 year standard warranty. Extended 3 year and 5 year extended warranties available. Made In The USA The Thuraya Voyager transceiver and the MCD-VOYAGER case are U.S. manufactured Compliance & Certification CE, EMC 301 444, 301 489, IEC 60950, FCC ID: U9R-W2CBW0015...
Page 21: Troubleshooting System Overheating
When the temperature reaches 130 Fahrenheit (54 , the terminal will shut off automatically. To avoid this, move the MCD-VOYAGER to shade and open up the case lid for venting. WIRELESS ACCESS ISSUES If you are unable to connect to the wireless access point, use an Ethernet cable to directly connect to the system, and access the web interface screen (192.168.128.100).
Page 22 Ground Control shall not be liable for errors contained herein. The information in this document is subject to change without notice. Ground Control makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
