Summary of Contents for Lu Interactive Playground MOBILE
- Page 1 INTERACTIVE PLAYGROUND MÖBIL EN - User manual...
-
Page 2: About This Guide
About This Guide The Lü Interactive System User Manual has basic product information such as safety and operation. Disclaimer Thie information and specifications contained in this user manual are subject to change without notice. Important Safety Instructions 1. Read and keep these instructions. 2. - Page 3 Lü Limited Warranty One-Year System Limited Warranty. What Is Covered: Lü Interactive Playground inc. (“Lü”) warrants to the original purchaser of the system this limited warranty statement that the product will be free from defects in workmanship and materials for a period of one (1) year from the date of original purchase.
-
Page 4: What Is Included

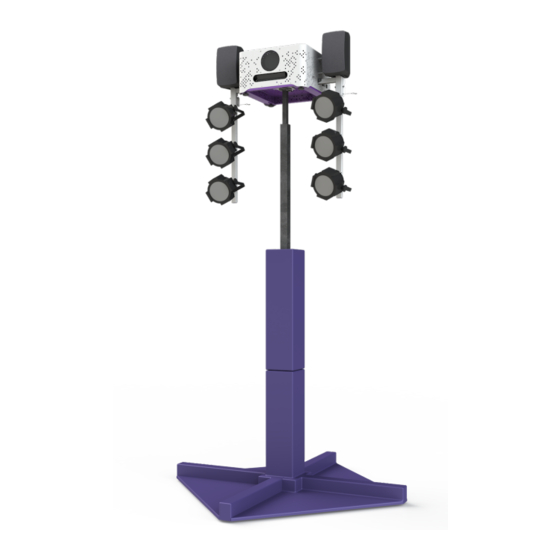

Congratulations on your purchase of this Lü Interactive Playground! This system was crafted with passion by our team in Canada and we really hope you will enjoy using it for many years to come! What Is Included (1) Main Module (5) parts: 1x Main Module 6500 lumen WXGA projector and 3D camera system protected in a custom enclosure... - Page 5 Operation Playground dimensions and specifications Interactive screen Maximum size: 18’ (5.5m) Large x 10.1’ (3.1m) High Must be a flat, solid, bright surface. Game Area Centred in front of the interactive screen Recommended size: 30’ (9m) Large x 20’ (6m) Long Minimum ceiling heights: 10’...
- Page 6 Operation Site and screen preparation Mark the (4) corners of your projection location on the wall Ideal position is to set the bottom of the screen at 1 feet (30cm) from the floor. Maximum Width of 18’ (5,48m), height of 10.1 feet (3,1m). ***Always respect a ratio of 16:9 for your screen.
-
Page 7: Assembling The Unit
Operation Assembling the unit Install main module on stand The pin beneath main module has to fit inside the pole from the lifting tower. ***Make sure you screw the lock bolt in place. Install speaker brackets on main module Lock brackets in place using locking pins. Install light brackets on speaker brackets Lock brackets in place using locking pin. - Page 8 Operation Projector and system calibration Focus projector into position **Make sure the projector is turned on, on the right input (you should see Lü’s interface from the computer), and the aspect ratio of the projector should be on FULL. REMOTE CONTROL BUTTON A.
-
Page 9: Remote Controller
Operation Remote controller 1. Mute 2. Left Click Button Move Selection (and Click for drag) 3. Right Click Button Volume Select Button Quit game or program Confirm Choices & Start Games Pause / Start On/Off USB charging Switch port INTERACTIVE PLAYGROUND... -
Page 10: General Operations
Operation Remote controller - Shortcuts General operations Turn ON/OFF lights (Main Menu): F1 Volume UP: V+ Volume DOWN: V- Exit Game: Esc + ENTER Pause Game: SPACE BAR Choose Game: ←, ↑, →, ↓ Move Selection: ←, ↑, →, ↓ Begin Game: ENTER or OK Select : ENTER or OK Exit Lü... - Page 11 Operation Lighting Application With the Lü system, you can control the different spotlights for personalized lighting of the room according to the ongoing event (corporate event, school activity, intra-company challenge, fair, gala, show, etc.). To personalize lighting, follow these steps: 1.
-
Page 12: Troubleshooting
Troubleshooting How to turn computer ON? Computer will automatically boot connected to a power alimentation. To reboot it, shutdown the power alimentation, wait one minute, and turn it back on. How to turn the projector ON? To turn the projector ON, first make sure the modules are powered. Then, press the “ON”... -
Page 13: Technical Specifications
Technical Specifications LIGHT SPEAKER MAIN MODULE LIFTING TOWER CUSHION KIT BRACKET BRACKET 19’ (5.8m) centred INSTALLATION Over the lifting On the speaker On the main On the lifting tower in front of interactive POSITION tower bracket module screen SIZE 2 bags of: 2 brackets of: 2 brackets of: 23 x 28 x 16 ‘’... -
Page 14: Contact Information
Complete components documentation For more detailed information about key Lü MOBILE system components: Video projector - Epson G7000w projector https://files.support.epson.com/docid/cpd5/cpd51161.pdf Loudspeakers - DB Technology K330 speakers http://www.dbtechnologies.com/public/CMS/Files/777/K300- MAN_rev5_27072010.pdf PC Computer - Intel NUC https://www.intel.com/content/www/us/en/products/boards- kits/nuc/kits/nuc6i5syh.html Contact information For support, any questions or comments on this product: +1 418 781-0797 support@play-lu.com...
