Tycon Power Systems Gigabit PoE Extender User Manual

Gigabit PoE Extender
Gigabit Power-over-Ethernet Extender
User's manual
Gigabit Power-over-Ethernet Extender

Product

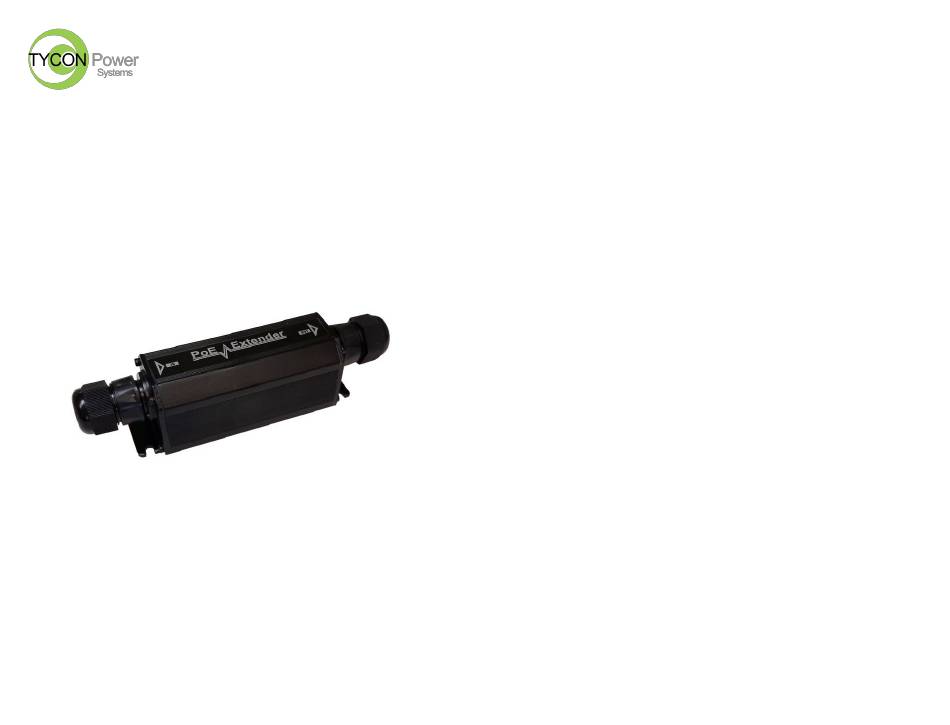

Outdoor waterproof Gigabit PoE Extender 1(PoE IN) into 1(PoE OUT) 25W

Description

Ethernet and PoE connections both restrict cable distances to 100 meters be-
tween network ports. To overcome this distance limit, network installers can
simply connect a PoE Extender in-line with the Cat-5e or Cat-6 cable (Outdoor
type).
With a Gigabit PoE Extender, PDs (such as IP Security Cameras, wireless ac-
cess points) can be installed at greater distances than 100 meters from one
another. By connecting the PoE Extender for every extra 100 meters of cable,
both Ethernet and PoE can be extended up to 300 meters, depending on PDs
power required and power source.
The Gigabit PoE Extender does not require any additional power supply and
the connected PDs are fed by a single PoE switch or mid-span, which simplifies
installation. The PoE Extender offers two Gigabit Ethernet ports, which are both
configured automatically for link speed, duplex and crossover and the full-rate
network throughput is maintained.
The PoE IN connection accepts power on pins 1,2.3,6 and 4,5.7,8 and con-
forms to IEEE802.3af/at PoE specification, Mode A and Mode B. PoE OUT
connection provides up to 25W with an IEEE802.3AT 30W input. PoE Out pro-
vides power on pins 1,2(V+) and 3,6(V-).

Features:

•
Compatible with IEEE802.3af and IEEE802.3at.
•
Extends the range of PoE and Gigabit Ethernet an additional
100 meters.
•
No additional power supply is required.
•
Automatically detects and protects equipment from being
damaged by incorrect installation.
•
Gigabit Full-rate network throughout the whole extended
distance.
•
Wall-Mountable design.
•
Easy plug-and-play installation.
•
IP66 Rated (Fully Weatherproof and Outdoor Rated).
