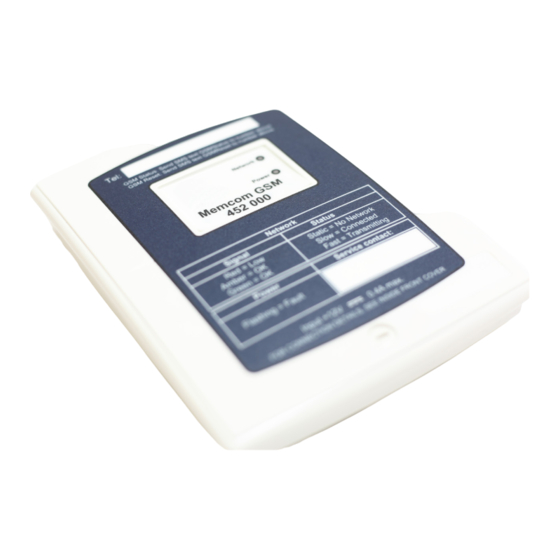

Memcom GSM Gateway
Installation Guide
Ref No. 452 850 (GB) Version 8
The Memcom GSM Terminal provides the interface between the Memcom Lift Emergency telephone and the mobile
telephone network. This guide assumes that the Memcom has already been installed. The installer/customer needs to
provide a suitable SIM card to activate.
Installation
The GSM terminal would normally be installed in the lift motor room or lift shaft with the Memcom on top of the lift car or
inside the car operator panel. The antenna should be mounted where a good signal can be received; this may require a
risk assessment of antenna position.

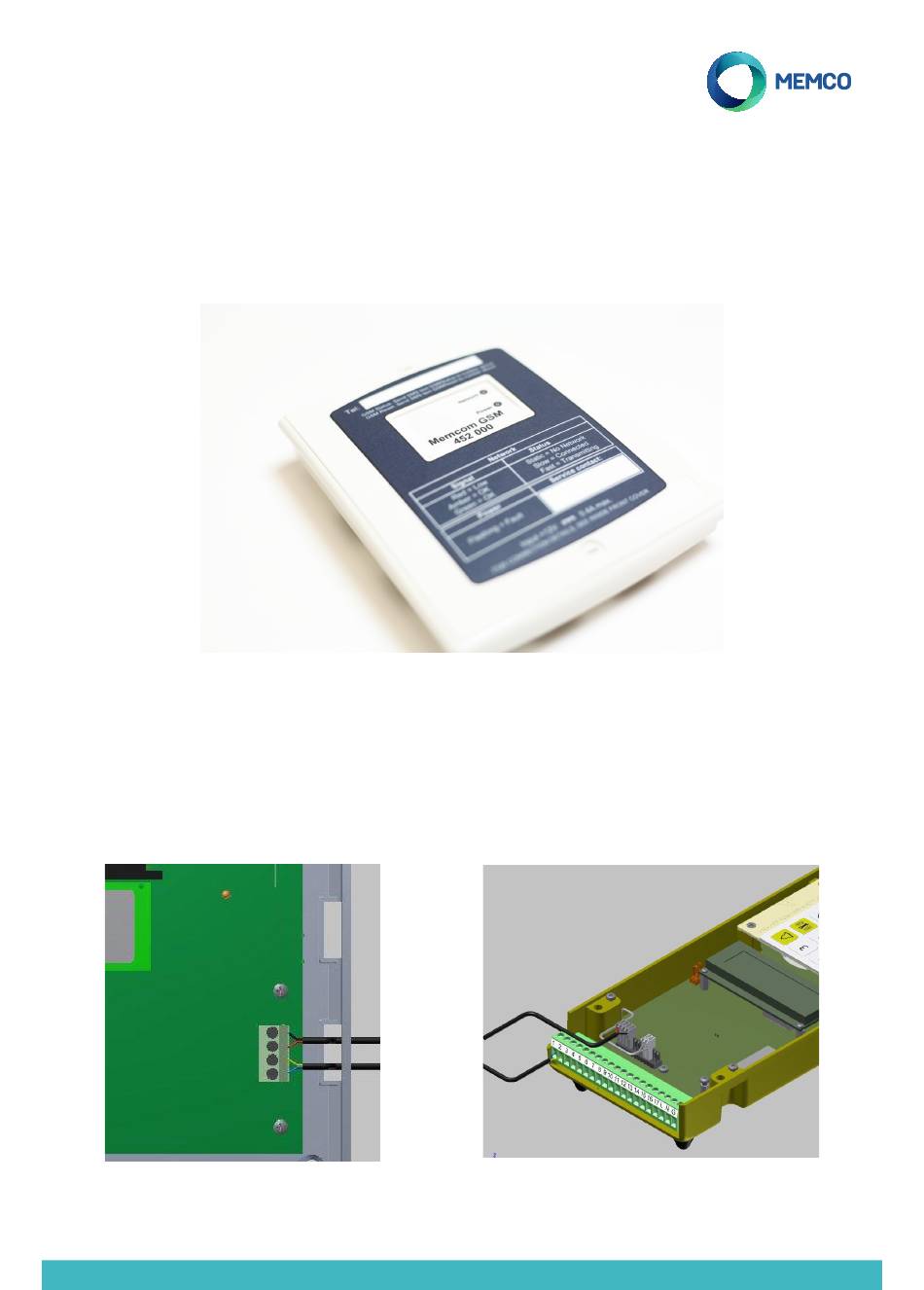

Connections GSM Gateway
12V DC Power
Memcom PSTN
Tip & Ring
Connections to Memcom
Advertisement
Table of Contents
Related Manuals for Memco Memcom GSM 452 850
Summary of Contents for Memco Memcom GSM 452 850
-
Page 1: Installation Guide
Memcom GSM Gateway Installation Guide Ref No. 452 850 (GB) Version 8 The Memcom GSM Terminal provides the interface between the Memcom Lift Emergency telephone and the mobile telephone network. This guide assumes that the Memcom has already been installed. The installer/customer needs to provide a suitable SIM card to activate. -
Page 2: Status Indicators
“Memcom GSM Terminal Installation Manual” (Part No. 452 851), which is available from our website at: http//www.avire-global.com Avire Ltd Unit 1, The Switchback 01628 540 100 Gardner Road 01628 621 947 Maidenhead sales.uk@avire-global.com Berkshire SL6 7RJ, UK www.memco-global.com Memco is a brand of Avire www.avire-global.com...
