Summary of Contents for Mobile Devices C4D-4GMUSAA_V6

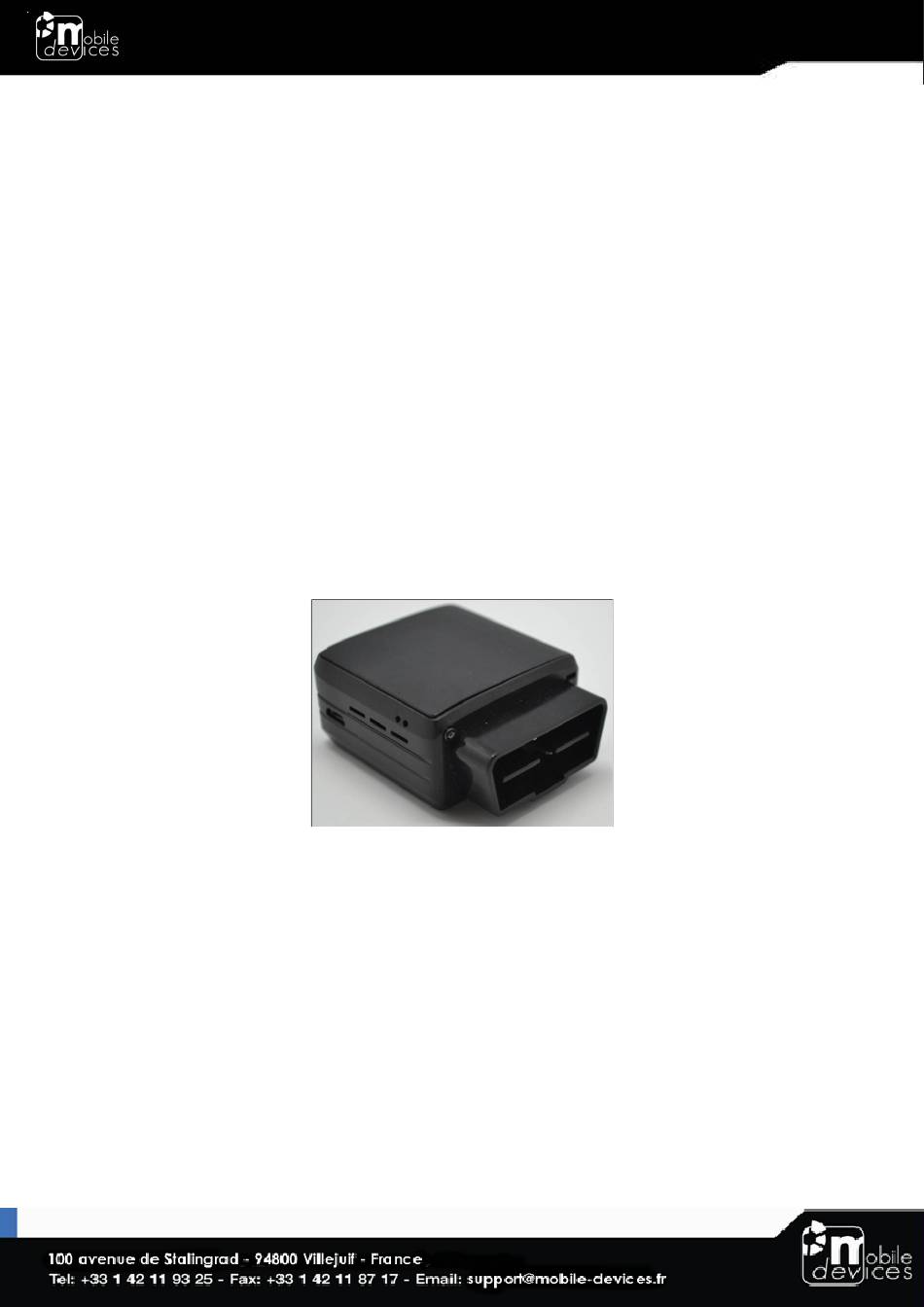

- Page 1 C4D-4GMUSAA_V6 - INSTALLATION GUIDE V 1.0 19/03/2018...
-
Page 2: Table Of Contents
Table of contents Preface ...........................3 Warnings and notices ......................3 FCC Regulations ........................3 FCC RF Exposure Information (SAR) ..................4 1. Hardware features ......................3 2. Hardware description ......................6 2.1. External view .......................6 2.2. Internal view .......................6 2.3 OBD connector pin out ....................7 3. -
Page 3: Preface
The information contained in this installation guide is subject to changes in order to improve the reliability, design or features without prior notice. Mobile Devices Ingénierie reserves the right to make changes in the content without obligation to notify any person or organisation of such changes or improvements. Mobile Devices Ingénierie can in no event be held liable for technical or editorial errors or omissions herein, nor for... -
Page 4: Fcc Rf Exposure Information (Sar)
FCC RF Exposure Information (SAR) This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device is set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage near the body with the separation of 5 mm. -
Page 5: Hardware Features
1. Hardware features OBD Dongle Performance Processor Cortex A5 - 500MHz 128 Mbytes NAND Flash 256 Mbytes Power supply External power supply range 8-18V External voltage ● measurement Li-pol battery* 450mA.h Communication Modem 4G Cat-M1data module (ME910C1-NA) Modem antenna Internal Positioning GNSS receiver U-blox M8 (GPS, GLONASS, BeiDou) -
Page 6: Hardware Description
2. Hardware description 2.1. External view ODB connector microUSB connector 2.2. Internal view Modem antenna GNSS antenna SIM holder Internal battery* Please read warnings section at the beginning of the installation guide... -
Page 7: Obd Connector Pin Out
2.3 OBD connector pin out Pin # Comment J1850+ (PWM/VPW) Chassis ground Signal ground CAN High K line J1850- (PWM) CAN low L line Battery voltage... -
Page 8: Preparing/Installing The Device
3. Preparing/installing the device 3.1. Open the device to insert a SIM card... -
Page 9: Properly Close The Device
3.2. Properly close the device First, check that the hole of the electronic card is correctly inserted in the plastic part. If it’s not inserted proceed as shown below. GOOD NOT GOOD Second, insert the GPS antenna as shown below. - Page 10 Third, check that the micro USB port is correctly inserted on its place. If it’s not inserted proceed as shown below. NOT GOOD GOOD Finally, insert the battery and place the screw.
-
Page 11: Install The Obd Dongle
3.3. Install the OBD Dongle Connect the OBD Dongle on your vehicle OBD connector. 4. LED sequences The Dongle has a two-coloured LED, green and red. When both colours are brightened, you can see an orange light. Green LED Red LED Sequence Meaning Sequence...
