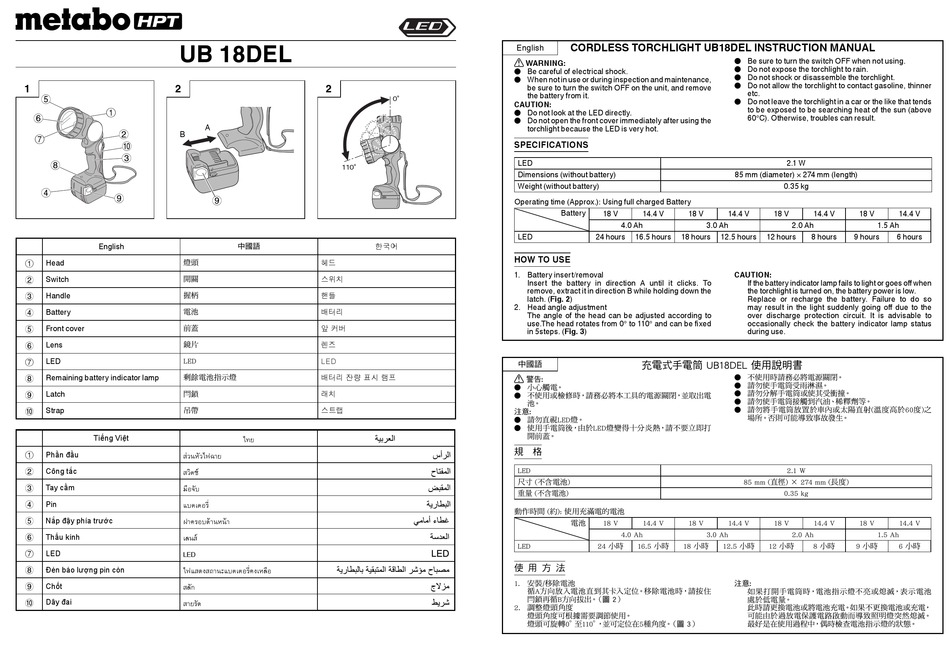

Metabo UB18DEL Instruction Manual

UB 18DEL
1 2
5
1
6
A
B
2
7
0
3
8
4
9
English
Head
1 燈頭
Switch
2 開關
Handle
3 握柄
Battery
4 電池
Front cover
5 前蓋
Lens
6 鏡片
LED
7 LED
Remaining battery indicator lamp
8 剩餘電池指示燈
Latch
9 閂鎖
Strap
0 吊帶
Tiếng Việt
Phần đầu ส ว นหั ว ไฟฉาย
1
สวิ ต ช
2 Công tắc
3 Tay cầm มื อ จั บ
Pin แบตเตอรี ่
4
ฝาครอบด า นหน า
5 Nắp đậy phía trước
เลนส
6 Thấu kính
LED LED
7
ไฟแสดงสถานะแบตเตอรี ่ ค งเหลื อ
8 Đèn báo lượng pin còn
สลั ก
9 Chốt
0 Dây đai สายรั ด
2
9
中國語 한국어
헤드
스위치
핸들
배터리
앞 커버
렌즈
LED
배터리 잔량 표시 램프
래치
스트랩
ไทย
CORDLESS TORCHLIGHT UB18DEL INSTRUCTION MANUAL
English
WARNING:
● Be careful of electrical shock.
● When not in use or during inspection and maintenance,
be sure to turn the switch OFF on the unit, and remove
the battery from it.
CAUTION:
● Do not look at the LED directly.
● Do not open the front cover immediately after using the
torchlight because the LED is very hot.
SPECIFICATIONS
LED
Dimensions (without battery)
Weight (without battery)
Operating time (Approx.): Using full charged Battery
Battery
18 V 14.4 V 18 V
4.0 Ah
LED 24 hours 16.5 hours 18 hours
HOW TO USE
1. Battery insert/removal
Insert the battery in direction A until it clicks. To
remove, extract it in direction B while holding down the
latch. (Fig. 2)
2. Head angle adjustment
The angle of the head can be adjusted according to
use.The head rotates from 0° to 110° and can be fi xed
in 5steps. (Fig. 3)
中國語 充電式手電筒 UB18DEL 使用說明書
警告:
● 小心觸電。
● 不使用或檢修時，請務必將本工具的電源關閉，並取出電
池。
注意:
● 請勿直視LED燈。
● 使用手電筒後，由於LED燈變得十分炎熱，請不要立即打
開前蓋。
規 格
LED
尺寸 (不含電池)
重量 (不含電池)
動作時間 (約): 使用充滿電的電池
電池 18 V 14.4 V 18 V
4.0 Ah
LED 24 小時 16.5 小時 18 小時
使 用 方 法
1. 安裝/移除電池
循A方向放入電池直到其卡入定位。移除電池時，請按住
閂鎖再循B方向拔出。 （圖 2）
2. 調整燈頭角度
燈頭角度可根據需要調節使用。
燈頭可旋轉0° 至110° ，並可定位在5種角度。 （圖 3）
● Be sure to turn the switch OFF when not using.
● Do not expose the torchlight to rain.
● Do not shock or disassemble the torchlight.
● Do not allow the torchlight to contact gasoline, thinner
etc.
● Do not leave the torchlight in a car or the like that tends
to be exposed to be searching heat of the sun (above
60°C). Otherwise, troubles can result.
2.1 W
85 mm (diameter) × 274 mm (length)
0.35 kg
14.4 V 18 V 14.4 V 18 V
3.0 Ah 2.0 Ah 1.5 Ah
12.5 hours 12 hours 8 hours 9 hours
CAUTION:
If the battery indicator lamp fails to light or goes off when
the torchlight is turned on, the battery power is low.
Replace or recharge the battery. Failure to do so
may result in the light suddenly going off due to the
over discharge protection circuit. It is advisable to
occasionally check the battery indicator lamp status
during use.
● 不使用時請務必將電源關閉。
● 請勿使手電筒受雨淋濕。
● 請勿分解手電筒或使其受衝撞。
● 請勿使手電筒接觸到汽油、稀釋劑等。
● 請勿將手電筒放置於車內或太陽直射(溫度高於60度)之
場所。否則可能導致事故發生。
2.1 W
85 mm (直徑) × 274 mm (長度)
0.35 kg
14.4 V 18 V 14.4 V 18 V
3.0 Ah 2.0 Ah 1.5 Ah
12.5 小時 12 小時 8 小時 9 小時
注意:
如果打開手電筒時，電池指示燈不亮或熄滅，表示電池
處於低電量。
此時請更換電池或將電池充電。如果不更換電池或充電 ，
可能由於過放電保護電路啟動而導致照明燈突然熄滅。
最好是在使用過程中，偶時檢查電池指示燈的狀態。
14.4 V
6 hours
14.4 V
6 小時
