www.ziehlabegg.com
english

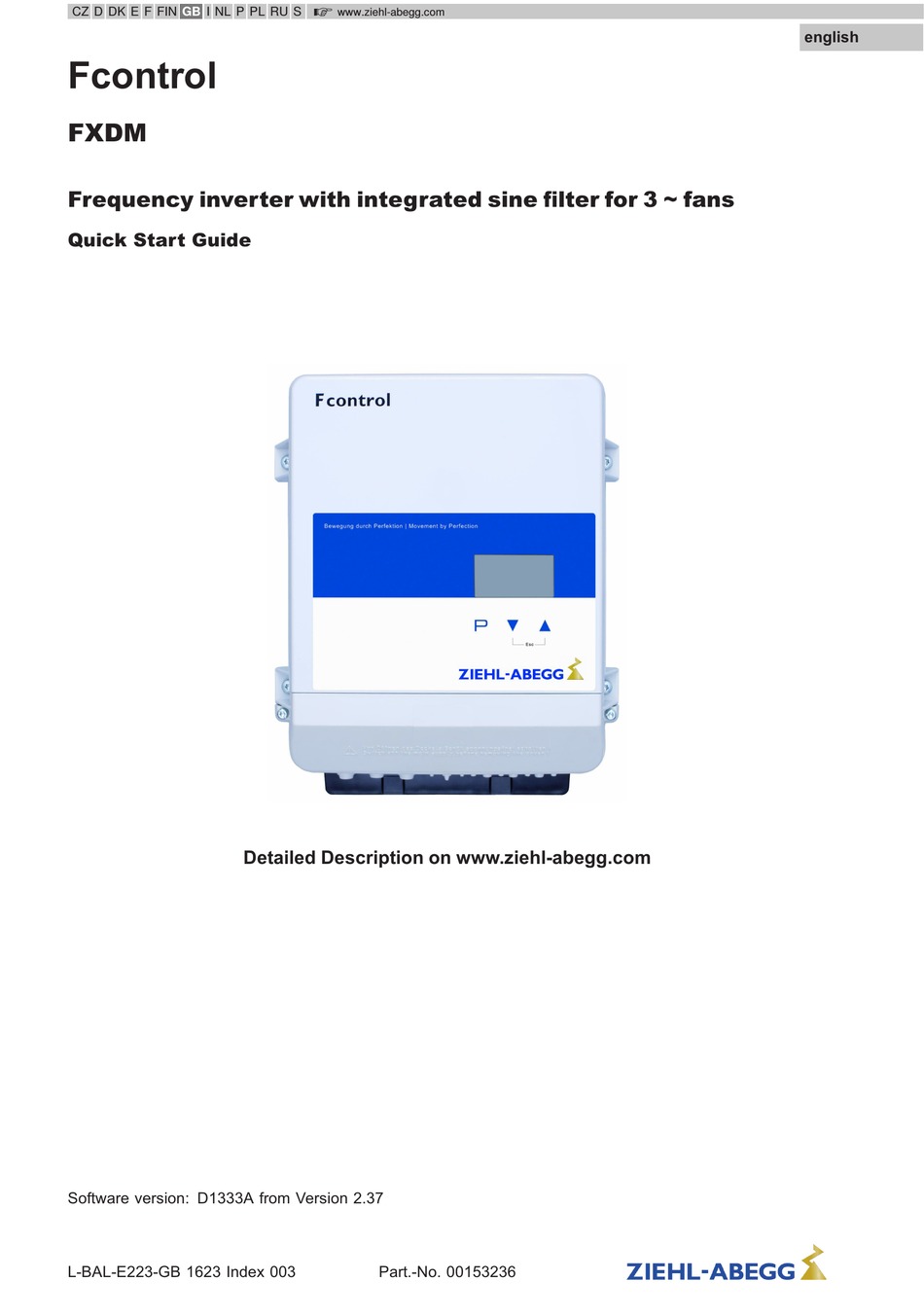

Fcontrol
FXDM
Frequency inverter with integrated sine lter for 3 ~ fans
Quick Start Guide
Detailed Description on www.ziehl-abegg.com
Software version: D1333A from Version 2.37
L-BAL-E223-GB 1623 Index 003
Part.-No. 00153236
Advertisement
Table of Contents
Summary of Contents for Fcontrol FXDM series
- Page 1 ☞ www.ziehlabegg.com english Fcontrol FXDM Frequency inverter with integrated sine lter for 3 ~ fans Quick Start Guide Detailed Description on www.ziehl-abegg.com Software version: D1333A from Version 2.37 L-BAL-E223-GB 1623 Index 003 Part.-No. 00153236...
-
Page 2: Table Of Contents
Versions type-lines Fcontrol ........ -
Page 3: General Notes
Quick Start Guide Fcontrol – model series FXDM General notes 1 General notes Structure of the short operating instructions Attention! This Quick Start Guide contains basic information on safety, use, installation and quick commissioning. The detailed Operating Instructions can be found on our website. The additional information they contain must be observed. -
Page 4: Work On The Device
Quick Start Guide Fcontrol – model series FXDM Product overview Work on the device Information Mounting, electrical connection, and start-up operation may only be carried out by an electrical specialist in accordance with electrotechnical regulations (e.g. EN 50110 or EN 60204)! Danger due to electric current •... -
Page 5: Maintenance
Quick Start Guide Fcontrol – model series FXDM Mounting Maintenance The device must be checked for soiling and, if necessary, cleaned in periodic intervals. The ventilation grilles on the bottom and on the top of the device must be free to ensure adequate cooling of the device. -
Page 6: Minimum Space Requirement
Quick Start Guide Fcontrol – model series FXDM Mounting Minimum space requirement In order to ensure sufficient ventilation of the device, clearance on all sides of at least 50 mm has to be maintained to the housing walls, switch cabinet doors, wiring ducts, etc. The same clearance applies to the installation of several devices next to each other. - Page 7 Quick Start Guide Fcontrol – model series FXDM Mounting Type FXDM5...18 (FXDM22) Fastening at 4 points GM00005A_M 15.12.2015 Drill fastening points “1” - “4”. " " Fasten device with screws. Type FXDM32...50 (IP54 / IP65) Fastening at 8 points GM00002A_M 15.12.2015...
-
Page 8: Cable Inlet
Quick Start Guide Fcontrol – model series FXDM Mounting Type FXDM32...50 (IP20) Fastening at 4 points GM00001A_M 15.12.2015 Drill 4 fastening points. " Screw in screws “1” - “4” up to a distance of approx. 5 mm and mount the device. -
Page 9: Electrical Installation
Quick Start Guide Fcontrol – model series FXDM Electrical installation Sheet metal housing IP54 IP20 1 Inlet mains connection (32 mm) 1 Inlet mains connection (40 mm) 2 Inlet motor connection (32 mm) 2 Inlet motor connection (40 mm) 3 Ridges for connecting the control cables... - Page 10 Quick Start Guide Fcontrol – model series FXDM Electrical installation Example: Position of terminals for devices in sheet metal housing 1 Line 2 Motor 3 Modulation 4 Indication relays 5 MODBUS Terminal Information Mains connection Here, it must be strictly observed that the mains voltage lies within the allowable tolerance specifications (see Technical data and nameplate affixed to the side).
- Page 11 Quick Start Guide Fcontrol – model series FXDM Electrical installation Terminal Information 24V - GND Voltage supply 24V DC Out For external devices, e.g. for sensors, terminal. E1 - GND, E2 - GND Analog inputs Analog In 1 / 2 For speed setting signal or sensor signal.
-
Page 12: Base Setup
Quick Start Guide Fcontrol – model series FXDM Base setup 6 Base setup Jumper for the input signal Jumper position factory setting for 0 - 10 V signal. For temperature sensors (TF..) or sensors with 4 - 20 mA bring the internal jumper for the external signal in the correct position. -
Page 13: Select Operation Mode
Quick Start Guide Fcontrol – model series FXDM Base setup Select operation mode Information Simple installation is possible through the selection of the preprogrammed mode of operation. This determines the basic function of the device; factory setting 1.01 = Speed controller (activation via 0 - 10 V signal). -
Page 14: Start-Up
Quick Start Guide Fcontrol – model series FXDM Start-up 7 Start-up Prerequisites for commissioning Attention! 1. You must mount and connect the device in accordance with the operating instructions. 2. Double check that all connections are correct. 3. The mains voltage must match the information on the rating plate. -
Page 15: Menu Mode 1.01
Quick Start Guide Fcontrol – model series FXDM Start-up Switch Motor to ON in menu group “Start” ▲ Menu Mode 1.01 Base Controller Motor Start Info Setting Events IO Setup Limits Diagnostic setup Setup Setup 50.0 Hz 8.0 A 1.01 0.0 Hz... -
Page 16: Controls And Menu
Quick Start Guide Fcontrol – model series FXDM Controls and Menu 8 Controls and Menu Multipurpose LC display and keyboard 2 3 4 5 6 7 8 9 19.02.2014 v_display_erklaerung_fcontrol.vsd 1. Numeric display 5 digit Program key and open menu 2. -
Page 17: Menu Structure
Quick Start Guide Fcontrol – model series FXDM Controls and Menu In the menu point “Language” display language can be selected. One returns to the menu group “Start” using the ESC (▼ + ▲) shortcut keys. Menu structure PIN 0010 STOP ←... -
Page 18: Enclosure
Quick Start Guide Fcontrol – model series FXDM Enclosure 9 Enclosure Technical data Rated cur- Rated cur- Rated tem- max. line Max. heat Noise ap- Weight Housing rent* rent perature fuse dissipation prox. [kg] protec- approx. tion Output (I fundamen- tal compo- [°C]... - Page 19 Quick Start Guide Fcontrol – model series FXDM Enclosure Rated cur- Rated cur- Rated tem- max. line Max. heat Noise ap- Weight Housing rent* rent perature fuse dissipation prox. [kg] protec- approx. tion Output (I fundamen- tal compo- [°C] [dB]...
-
Page 20: Versions Type-Lines Fcontrol
Quick Start Guide Fcontrol – model series FXDM Enclosure For devices > 16A and ≤ 75A according to EN61000-3-12 (see Electrical Installation / Harmonics current and line impedance) Please ask manufacturer for the individual harmonic oscillation levels of the current as a percentage of the fundamental oscillation of the rated current. -
Page 21: Connection Diagram
Quick Start Guide Fcontrol – model series FXDM Enclosure Connection diagram Fcontrol FXDM...(A)M Kontaktbelastung Contact rating Adressierung max. AC 250 V 2 A °C Addressing TB/TP Digital Analog 24 V DC Analog Analog Digital Normal In 1 Out 1 In 1... -
Page 22: Manufacturer Reference
Quick Start Guide Fcontrol – model series FXDM Enclosure Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: ZIEHL-ABEGG SE Heinz-Ziehl-Straße...
