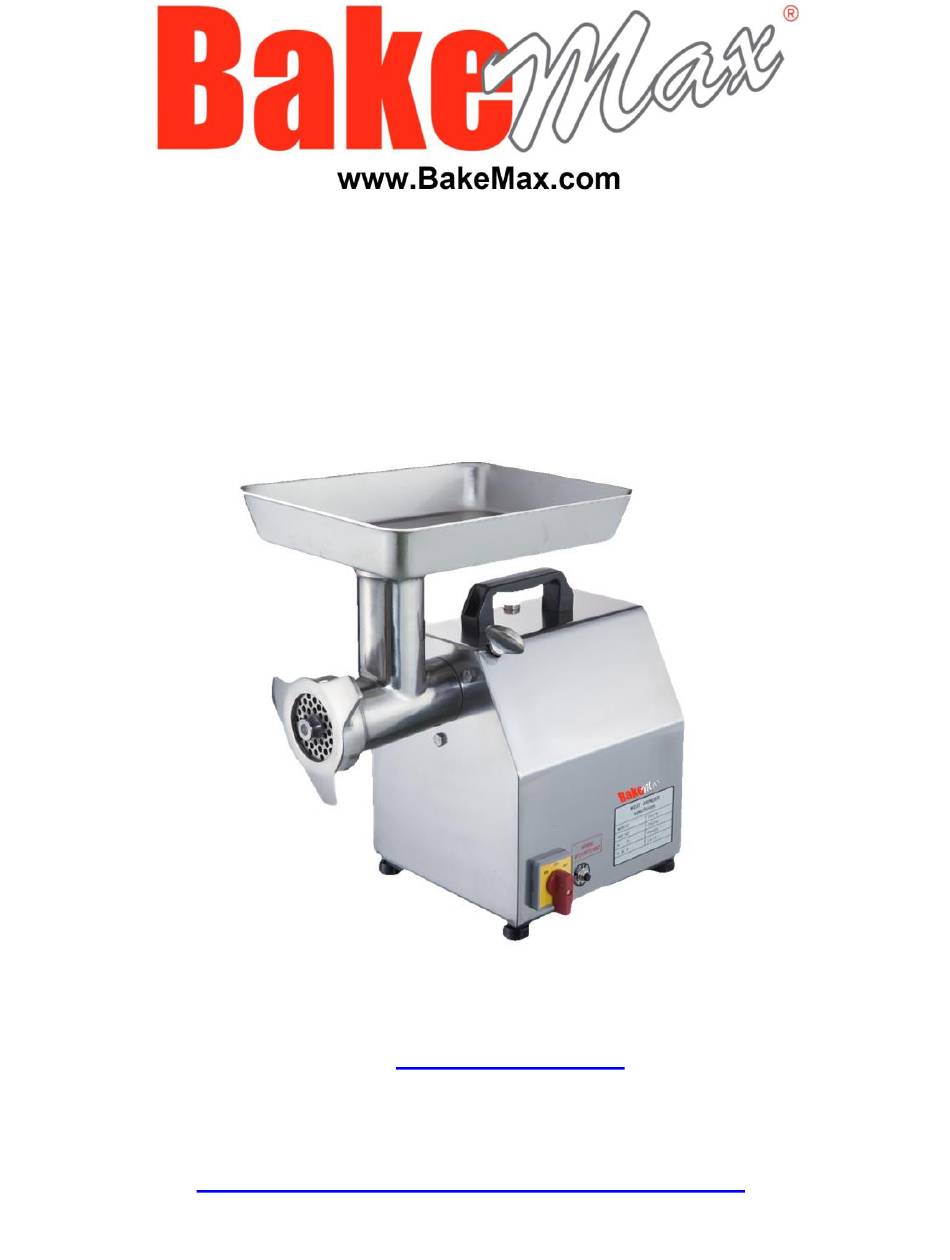

- Page 1 BMMG001/BMMG002 MEAT GRINDER Operations Manual Questions? Contact Us: Toll Free: 1-800-565-2253 Email: Info@BakeMax.com www.BakeMax.com Warranty Registration www.BakeMax.com/Warranty-Registration...
-
Page 2: Warning & Safety
Warning & Safety PLEASE READ AND FOLLOW INSTRUCTIONS BELOW TO PREVENT INJURY OR DAMAGE TO THE PRODUCT BakeMax® (a registered trademark of Titan Ventures International Inc or TVI) is not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. - Page 3 • Follow any additional cleaning / maintenance listed below. BMMG001 Features The BakeMax BMMG001 Meat Grinder is intended for heavy duty work in commercial food processing applications. It is reliable under the most demanding conditions. Capable of grinding up to 485 lb of meat per hour with its powerful 1 HP motor.
-
Page 4: Operation
OPERATION IMPORTANT: Before connecting your unit to your power supply, be sure your machine's electrical specifications, printed on the unit's nameplate, match those of your local power. 1. For first-time use, remove the grinder head and wash parts thoroughly. Reassemble according to the diagram included in these instructions. - Page 5 BMMG001 PARTS LIST ILLUS. NO. 1 DESCRIPTION OR NAME PARTS NO. BMMG001 FEEDER PAN 712-001 MEAT PUSHER 712002 BALL BEARINGS 1915 BR-1915 GRINDING CHAMBER 712-004 COUPLING COVER 712-005A PRESSURE PLATE 712-006 REAMER 712-007 HOLDER 712-008 SPIRAL PROPELLER 712-009 PLUNGER 712-010A...
- Page 6 BMMG01 Parts List Continued THUB SCREW 712-027 CENTRIFUGAL GOVERNOR PLATE 712-028 CENTRIFUGAL GOVERNOR 712-029 SWITCH 712-030 BALL BEARING#6205 BR-6205 RESET 712-032 BALL BEARING#6203 BR-6203 OIL SEALTC20*40*8 OS-TC20*40*08 OIL SEALTC30*45*8 OS-TC30*45*08 C-TYPE SNAP RING S17 CR-S17 MEAT FUNNEL 712-037 SPRING PIN 8*30 SPP-8*30 KEY 6*6*15 KRR-6*6*15...
- Page 7 Image 1 BMMG001...
- Page 8 BMMG002 PARTS LIST ILLUS. NO. 2 DESCRIPTION OR NAME PARTS NO. BMMG002 FEEDER PAN 722-001 MEAT PUSHER 712-002 BALL BEARING#1915 BR-1915 GRINDING CHAMBER 722-004 COUPLING COVER 722-005 PRESSURE PLATE-4,/6/8/10/12mm 722-006A-4/6/8/10/12mm REAMER 722-007 HOLDER 722-008 SPRIAL PROPELLER 722-009 PLUNGER 722-010 GEARBOX 722-011A HOUSING J 722-01 IB...
- Page 9 BMMG002 Parts List Continued CAP SREW 5/16*1-1/4 S-C-5/16*l-l/4 OIL BAFFLE 11012-04-008 BOLT 5/16*3/8 S-5/16*3/8 RUBBER FOOT WITH SCREW 712-045 ELECTRIC WIRE 712-048 HANDLE 712-049 OIL COCK 712-050 WRENCH 712-051 CAP SCREW 5/16*1/2 S-C-5/16*l/2 SPACER 722-053...
- Page 10 Image 2 BMMG002...
