- Page 1 SiViB Record 1500 SiViB Record Control Installation Instructions Operation Manual Version: 3.1/2012...
-
Page 2: Table Of Contents
................................. 42 RBIT ......................43 UNCTIONS OF THE RAPHICAL LOTS Auto Scaling ............................43 Pointing Tool ............................43 IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... - Page 3 : ......................... 52 YPES AND PART NUMBERS ..................... 52 ECORD ONTROL OFTWARE ERSIONS ......................... 53 REQUENTLY SKED UESTIONS IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
-
Page 4: System Description

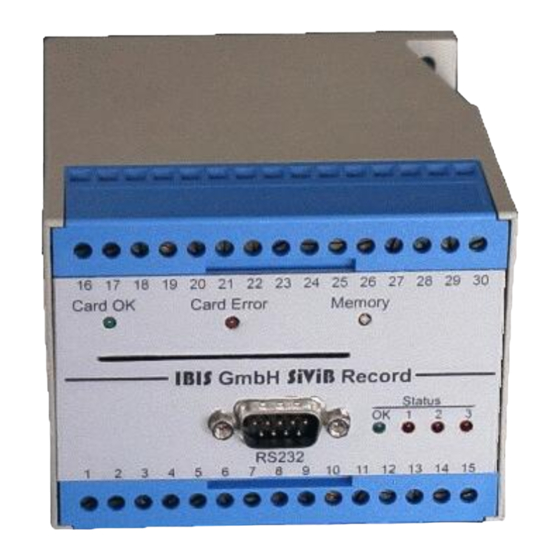

SiViB GmbH Record 1500 / Record Control Manual Page 4 System Description SiViB Record 1500 is a compact unit for complete machine condition monitoring. The most important condition indicators vibration, speed, temperature, and other process parameters are handled in only one monitor. -
Page 5: Hardware Installation
11 must be connected for use of all alarm outputs). 6: Alarm Output B (see above) 7: Alarm Output C (see above) IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... - Page 6 Motor drives, unshielded power cables or inductive transformers could be such sources, which should be avoided. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
-
Page 7: Wiring Terminals For Type 1502, 1512
DIG IN 4 (store) DIG GND CAN Ser + (Option) CAN Ser – (Option) For further descriptions see above IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 8: Wiring Terminals For Type 1503, 1513
DIG IN 4 (store) DIG GND CAN Ser + (Option) CAN Ser – (Option) For further descriptions see above IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 9: Terminals Of Instruments For Eddy Current Probes
22 and 25 Analog outputs 0 – 10 Volts for the dynamic (vibration) component of the probe signal. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 10: Software Installation
Engine Setup“ will start automatically. The runtime engine is necessary for running Record Control. Follow the dialogue screens for completing the process. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 11: Install Chipcard Reader
Record Control. The chip card reader is not supported under Windows 7. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 12: Starting The Software
Control, the main window will appear on top. If you want to switch to another window in the background, just click on the Record Control button in the task bar repeatedly. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 13: Basic Software Configuration
For a cluster of SiViB Instruments and a Gateway module talking to the PC via Ethernet. Multibus For multiple monitors with Ethernet connector IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 14: Setup Procedure For Sivib Record 1500E
• Set the PC with Record Control software to a free IP adress in the same adress range. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... - Page 15 Type in IP adress and Port, check the active flag and click Store changes This stores this settings in the online parameters file of the software IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
- Page 16 First do step 1 for all instruments, then step 2 for all and so on. Step 4 is common for all instruments. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
-
Page 17: Online (Record Control Net Only)
After each unload procedure, the interval will be added to the unload time and stored as new next unload time. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... - Page 18 Attention: If you plan to use the write to file option in life mode for a longer time without user attendance, it is recommended to set this option to off. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
-
Page 19: Configuration And Commissioning
Now you will find the instrument’ s name in the selection box in the main window. Select the required instrument. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 20: Instrument Setup
If you want an output to be effected by only one unit, set the alarm levels of all other units to maximum for this colon. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... - Page 21 Defines if the alarm outputs should be high (1) on alarm or low (0) on alarm. Using “ 0 on alarm” gives you the possibility to check for broken wires. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
- Page 22 The offset value is added to the measured value of the channel. Negative offsets are allowed as well. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
- Page 23 Click “ store” to write the calibration for this input channel to the setup file. Repeat the procedure for the second input channel, if you use it too. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
- Page 24 1. Select the instrument which shall get configured from the instrument selection dropdown box. 2. Select the configuration set from the settings database by clicking into the desired row. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
-
Page 25: Send Setup To Sivib
Sending a new setup will erase all data stored in the instrument, as otherwise they could get inconsistent. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 26: Set Sivib Date / Time
If you want to delete any unvalid data records in the instrument, you can do this by sending the configuration. This will reset all data memory blocks. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 27: Operation Of The System
The upload process via memory card always transfers all data (trend, event table, event trend, spectrum). IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... - Page 28 When the data upload is finished, you will be asked it you want to proceed with another card. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
-
Page 29: Formatting Memory Cards
You can reuse cards for other instruments or as other card type after reformatting them according to your needs. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 30: Live Display
Seconds since start of recording (or seconds since 01.01.1904 12:00) Vibration velocity in [mm/s RMS] Bearing condition in [gSE] Analog 1 (or velocity channel 2) IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 31: Converting Seconds Since 1904 To Time And Date String
3. In the new colon, type in the formula stated above and copy it to the other lines. 4. Format the new colon as date or time according to your needs. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 32: Log To File
Alternatively you can use the function “ View Live File” for reviewing and working with the zoom and cursor options. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 33: Tend Graph
From main screen, click Show Trend to get to the graph. Activate the curve(s) for the data of interest by checking the box. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 34: Trend Table
Analog 2 (or bearing condition channel 2) Analog 3 Analog 4 Machine speed in RPM [min Status Digital inputs (Bit wise) IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 35: Event Memory
Click Event Trend to get a trend graph showing the traced values recorded during an event. You might need to use the zoom fuction of the graph to expand the time of interest. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 36: Digital Inputs - Status In Trend Table
DigIn3 (Tool Change Counter) DigIn4 (store) Example: DigIn2 and DigIn4 set, all other Bits 0: 32 + 128 = 160 IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 37: Elapsed Time Counter, Tool Change Counter
Reset oft he counters is done in the window Instrument Setup. Use the tab “ Counters” . There is a password protection preventing unauthorized changes. Use the same password as fort he other protected options. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 38: Bargraph Window
For not used channels the bar will be invisible, if the input is set to not used. It is possible to open the bargraph window automatically on system startup, if required. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 39: Frequency Spectras
You can store a FFT by clicking the “ Store FFT” button. These FFTs can be reviewed in the Spectrum Display window, which you can open from the main window. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... - Page 40 . In the window “ frequency marker setup” you can set multipliers and labels for the bearing frequency markers. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
-
Page 41: Export Of Time Waveforms Or Frequency Spectras
Exported TWFs and FFTs can be opend and reviewed using Record Control. Use „ show exported FFT” in the main screen. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 42: Orbit
Remark: For machine speed = 0, or without speed reference pickup, triggered measurements are not possible. The control is set back to “ free run” automatically. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 43: Functions Of The Graphical Plots
Use this tool to drag the plot. Grab the object holding the left mouse button down and drag by moving the mouse. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 44: Zoom Tool
Cursor Curve Selection This tool selects the curve the cursor refers to for the digital display of cursor values. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 45: Graph Colors
Attention: We recommend to leave the option Fill Base Line to none, as otherwise other lines could get masked and seem to disappear. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 46: Record Control Net
The software can send alarm notification via email. The main window has an additional button Show Status Tables, which gets you to the overview table IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 47: Overview Table
Clicking the Download button manually starts a download of the trend data from the instruments to the If the checkbox “ alarm mails after download” is activated, email(s) are sent, notifying of alarm conditions. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 48: Setting Update Rate And Time
The colon active can be set to 0 for disabling mails to the address in this row temporarily. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 49: Configuration Of Network Connections And Adresses
CAN parameters in the instrument get effective after a reboot (power cycle) of the instrument. The CAN parameters for the PC are set in the System Options window, tab P-CAN IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 50: Ethernet/Can Gateway
Active and Traffic are blinking when there is traffic on the system Error Ethernet and Error CAN go on or blinking when there are errors in the communication. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 51: Annex
0 – 10 VDC temperature: 0 – 200 degrees Celsius speed: 0 – 60 000 min (1 pulse per rev) IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 52: Types And Part Numbers
Live Phase • • Orbit-Display • • • Online Functions via bus system • Status-Overview Mail on Alarm • IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de... -
Page 53: Frequently Asked Questions
You will be prompted for a file name. These files can not be used by Record Control for showing trend graphs. IBIS Ingenieurbüro für Instandhaltungs- und Schwingungsmeß-Systeme GmbH Reinheimer Str. 17, 64846 Groß-Zimmern, Germany; www.ibis-gmbh.de Tel. +49 6071/42222, Fax +49 6071/71707, Email: info@ibis-gmbh.de...
