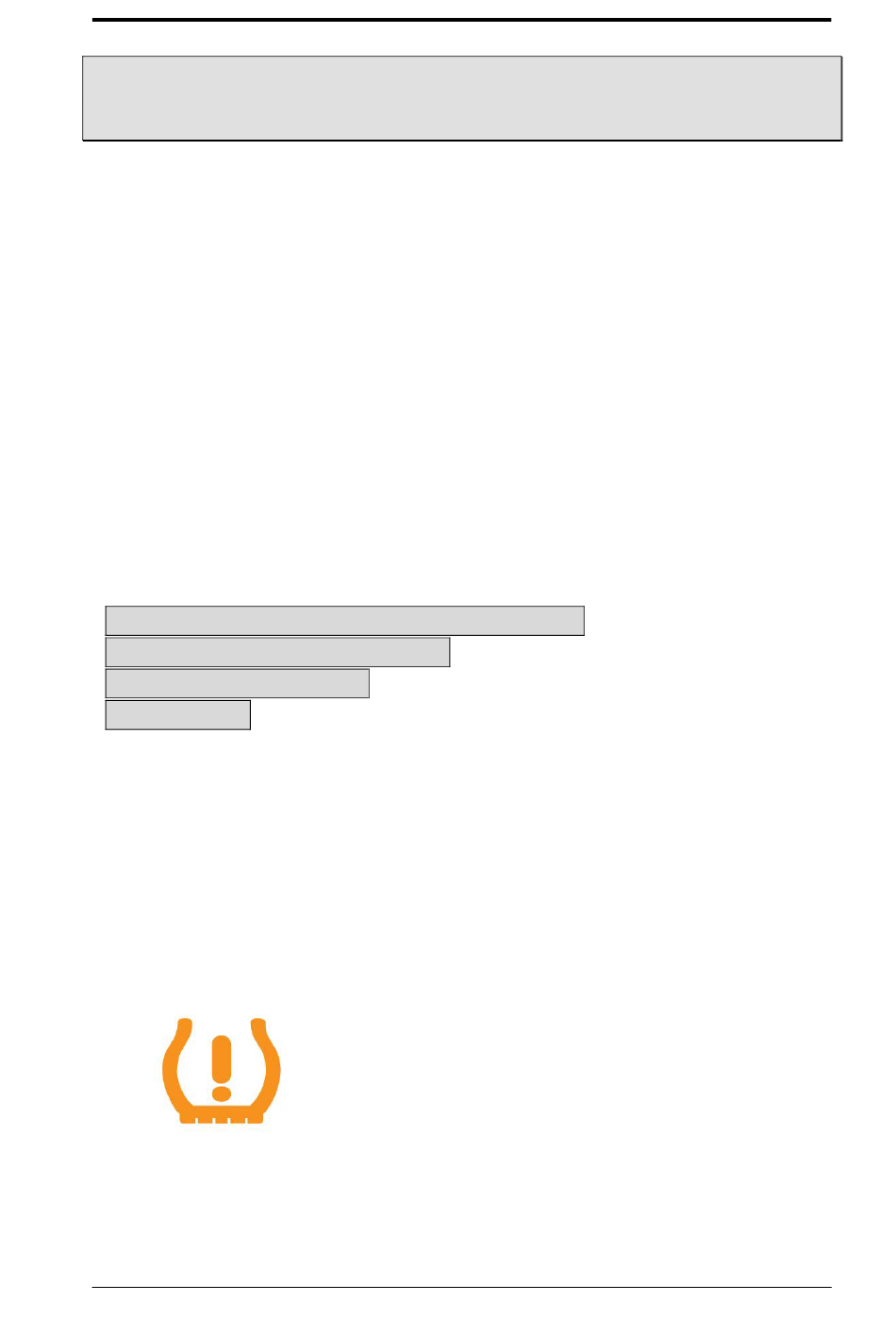

Manual for Tire Pressure Monitoring Systems, TPMS
Mazda New CX-5 TPMS Pressure by Location Display
NOTICE ........................................................................................ 2
SPECIFICATIONS OF TPMS ......................................................... 4
ACCESSORIES .............................................................................. 4
SYSTEM OPERATION .................................................................. 4
SENSOR RELEARN METHOD ...................................................... 5
SYSTEM ALARM .......................................................................... 8
SETUP METHOD .......................................................................... 8
Choosing preferred Pressure Units and Temperature Units ........................................... 9
Standard Front/Rear Tire Pressure Setting ..................................................................... 10
Tire Over Temperature Warning ...................................................................................... 11
Alarm Instruction ............................................................................................................... 12
APPENDIX 1 ............................................................................... 13
APPENDIX 2 ............................................................................... 14
WARRANTY POLICY .................................................................. 15
TROUBLESHOOTING GUIDE .................................................... 15

TABLE OF CONTENTS

To ensure correct operation and service, please read
these instructions before installing and operating the TPMS
1/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mazda CX-5 TPMS and is the answer not in the manual?

Questions and answers

Summary of Contents for Orange Electronic Mazda CX-5 TPMS

  • Page 1: Table Of Contents

    Manual for Tire Pressure Monitoring Systems, TPMS Mazda New CX-5 TPMS Pressure by Location Display TABLE OF CONTENTS TIRE PRESSURE MONITORING SYSTEMS, TPMS ...... 2 NOTICE ..................2 SPECIFICATIONS OF TPMS ............4 ACCESSORIES ................4 SYSTEM OPERATION ..............4 SENSOR RELEARN METHOD ............
  • Page 2: Tire Pressure Monitoring Systems, Tpms

    Manual for Tire Pressure Monitoring Systems, TPMS Tire Pressure Monitoring Systems, TPMS Tire Pressure Monitoring Systems (TPMS) improves safety while driving. Once installed in your vehicle, the system will automatically monitor your tires in real-time for pressure and temperature. When any tire’s pressure and/or temperature appear abnormal, the system will, in real-time, transmit signals to active an alarm and show a digital figure to warn the driver of a problem.
  • Page 3 Manual for Tire Pressure Monitoring Systems, TPMS System Scope of Use and Warnings Tire Pressure Monitoring System, TPMS This system is a sensing device designed to measure and display tire operation and / or activate an alert to the driver when pressure and temperature irregularities are detected. It is the responsibility of the driver to react promptly and with discretion to alerts.
  • Page 4: Specifications Of Tpms

    Manual for Tire Pressure Monitoring Systems, TPMS SPECIFICATIONS OF TPMS RECEIVER SPECIFICATIONS Operating Voltage 5V DC Operating Current < 150mA Storage Temperature C to 75 Operating Temperature C to 75 ACCESSORIES Picture Description Q’ty Wireless Receiver and Display Unit Velcro for display Power Cord (with 90 degree Micro-USB;...
  • Page 5: Sensor Relearn Method

    Manual for Tire Pressure Monitoring Systems, TPMS Sensor Relearn Method When you first install the receiver and display unit, you will need to do the relearn process the learn TPMS signal. After the relearn process, the receiver and display will record the sensor’s ID inside.
  • Page 6 Manual for Tire Pressure Monitoring Systems, TPMS Mode 1: Four Sensors Replaced Step Operation process Photograph The tire shop will check the tire for abrasion and rotate tires into the appropriate position. Press both the set key and function key simultaneously 【Function】Key for 5 seconds.
  • Page 7 Manual for Tire Pressure Monitoring Systems, TPMS Mode 2:Single Sensor Replaced Step Operating Process Photograph Take off the broken sensor and replace it with a new sensor. Press both the set key and function key simultaneously for 5 seconds. The display will flash red, and a “beep” sound will be heard.
  • Page 8: System Alarm

    Manual for Tire Pressure Monitoring Systems, TPMS SYSTEM ALARM The alarm system will start, if tire pressure is too low, and if tire temperature is too high, the alarm system will start too, and tire pressure will show on display. If high tire temperature and low tire pressure situation happen at the same time, the system will show low tire pressure at first and then show tire temperature, both of tire pressure and temperature will show on the screen for six seconds by turns.
  • Page 9: Choosing Preferred Pressure Units And Temperature Units

    Manual for Tire Pressure Monitoring Systems, TPMS Choosing preferred Pressure Units and Temperature Units Step Operation process Photograph By pressing the function key, it will switch among displaying the pressure unit, displaying the temperature unit, and displaying both pressure unit and temperature unit by turns.
  • Page 10: Standard Front/Rear Tire Pressure Setting

    Manual for Tire Pressure Monitoring Systems, TPMS Standard Front/Rear Tire Pressure Setting Step Operation process Photograph Pressing the set key for over 3 seconds can change to the 【Set】Key front tire standard pressure set up mode. The wireless receiver and display unit will show the preset front tire standard pressure default (34 psi / 230 kPa / 2.3 bar).
  • Page 11: Tire Over Temperature Warning

    Manual for Tire Pressure Monitoring Systems, TPMS Press the set key to complete the front tire pressure 【Set】Key warning value setup mode. The system will automatically enter the rear tire pressure set up mode. Set up rear tire standard pressure value by using the same steps 1~5 from front tire pressure warning value set up mode.
  • Page 12: Alarm Instruction

    Manual for Tire Pressure Monitoring Systems, TPMS Alarm Instruction Type Warning Description Photograph The tire pressure of RF Tire (22 psi) is below tire pressure default (27 psi), and it will active an alarm with “Beep sound”(along with Orange light on) to warn the driver, press set key to turn off the alarm (buy Orange light still on till the pressure back to normal condition.
  • Page 13: Appendix 1

    Manual for Tire Pressure Monitoring Systems, TPMS APPENDIX 1 Pressure reading in Kilo Pasca Pressure reading in pound per square inch Pressure reading in bar ˚C Temperature reading in degrees Celsius °F Temperature reading in degrees Fahrenheit Inflating Pressure Recommended inflation pressure of a tire at ambient environment temperature of 25˚C / 77 °F by vehicle manufacturers Visual and audible warning, this is activated when the tire’s...
  • Page 14: Appendix 2

    Manual for Tire Pressure Monitoring Systems, TPMS APPENDIX 2 kPa , psi, bar Conversion Table °C / °F Conversion Table °C °F °C °F °C °F 14/17...
  • Page 15: Warranty Policy

    Manual for Tire Pressure Monitoring Systems, TPMS WARRANTY POLICY We warrant our products for one year (365 days) from the date of original purchase to be free from defects in materials and workmanship. If, during this period, the product fails under normal usage, because of a manufacturing defect, we will replace or repair the item.
  • Page 16 Manual for Tire Pressure Monitoring Systems, TPMS 2. The buttons have no response. 1. The inner circuits of the receiver failed Solution:Ask your distributor to have your receiver replaced, reconfigure its ID using the Tire Switching Mode (Mode I), and send the defected receiver back to manufacturer for repair.
  • Page 17 Solution: Ask your installation supplier to reconfigure the IDs of the tires by using the Tire Switching Mode (Mode I or Mode II). Thank you for your purchase and enjoy your TPMS! Manufacturer: Orange Electronic Co., LTD www.orange-electronic.com 5F, No.29, Keya Rd, Central Taiwan Science Park, Taichung 42881, Taiwan Phone: +886-4-2560-2766 Email: service@orange-electronic.com...
