Fig. 610XB Series Hose Retriever and Base
Installation & Maintenance Instructions
The 610X Series Hose Retriever is designed to suspend the fueling hose above the dispenser eliminating kinks
and tangles while keeping the hose up off the drive. The 360 degree smooth rotating retriever head assists the
operator in positioning the hose to the fueling point.
Failure to follow any or all of the warnings and instructions in this document could result in a hazardous
!
liquid spill, which could result in property damage, environmental contamination, fi re, explosion, serious
injury or death.
Installation
WARNINGS
!
• Any modifi cation to this unit other than those
stated in these installation instructions will void
the product warranty.
• Install in accordance with all applicable local,
state, and federal laws.
• For your safety, it is important to follow local,
state, federal and/or OSHA rules that apply to
working inside, above, or around the storage
tank and piping area. Use all personal protective
equipment required for working in the specifi c
environment.
1. Remove unit from box and remove all packaging
material. Check unit for any shipping damage. Do
NOT use if any damage is found.
2. Purchase ½" anchor bolts with a thread length
between 2" and 3".
3. Place the base on the concrete where you wish
to install the unit, and mark the location for the
anchor holes.
4. Drill the anchor holes into the concrete and install
the anchor bolts into the holes. The base can be
installed at this time.
5. Secure the base to the concrete using anchor bolts
and washers.
6. Insert hose retriever riser pipe into tube on base
and tighten set screws.
7. Make certain unit is stable.
8. Slide the Weight into the threaded end of the
post and attach the Retriever Head onto the post.
Apply a non-hardening, anti-seize sealant to the
male threads of the post. Make certain to wrench
tighten 3.25 turns after hand tight.
9. Carefully, lift the post assembly up and slide
the post into the base. For safety reasons we
recommend this part of the assembly be done by
two people.
10. Tighten set screws on base to secure post.
rev. 08-31-15

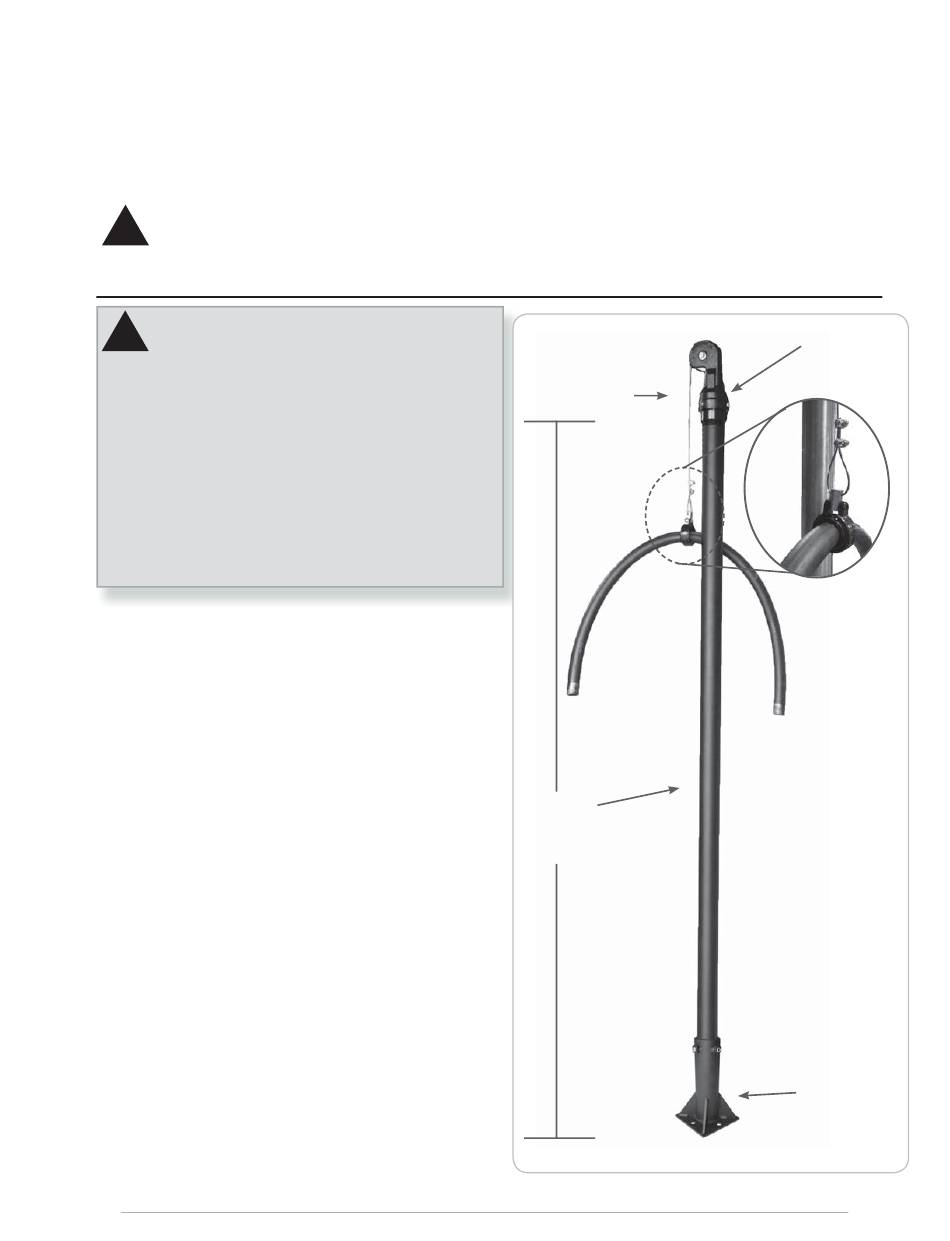

" Stainless
1
/
8
Steel Cable
Post
(80" or 100")
2" Aluminum
Schedule 40 Post
Morrison Bros. Co. - Dubuque, IA - 800-553-4840
360° Retriever Head
Closeup of
Cable Clamps and
Hose Clamp
Base
1
610XB-0110 PP
Advertisement
Table of Contents
Summary of Contents for Morrison Bros. co. 610XB-0200 AR
- Page 1 Fig. 610XB Series Hose Retriever and Base Installation & Maintenance Instructions The 610X Series Hose Retriever is designed to suspend the fueling hose above the dispenser eliminating kinks and tangles while keeping the hose up off the drive. The 360 degree smooth rotating retriever head assists the operator in positioning the hose to the fueling point.
- Page 2 11. If you want to adjust the cable length, or for any reason you need to remove the cable clamps, see Figure 1 below before reattaching clamps. Figure 1 12. With everything in the proper position and all screws and nuts tightened down, make sure Hose Retriever unit is stable.
- Page 3 Overall Height Shipping Weight Aluminum Pipe 610XB-0100 AR Schedule 40 ¾” 12’-14’ 10 lbs ” 90” 42 lbs Aluminum Pipe 610XB-0200 AR Schedule 40 ¾” 15’-20’ 12 lbs ” 110” 46 lbs Aluminum Pipe 610XB-0300 AR Schedule 40 1” 12’-14’...
