Summary of Contents for EpiValley SXT-4080

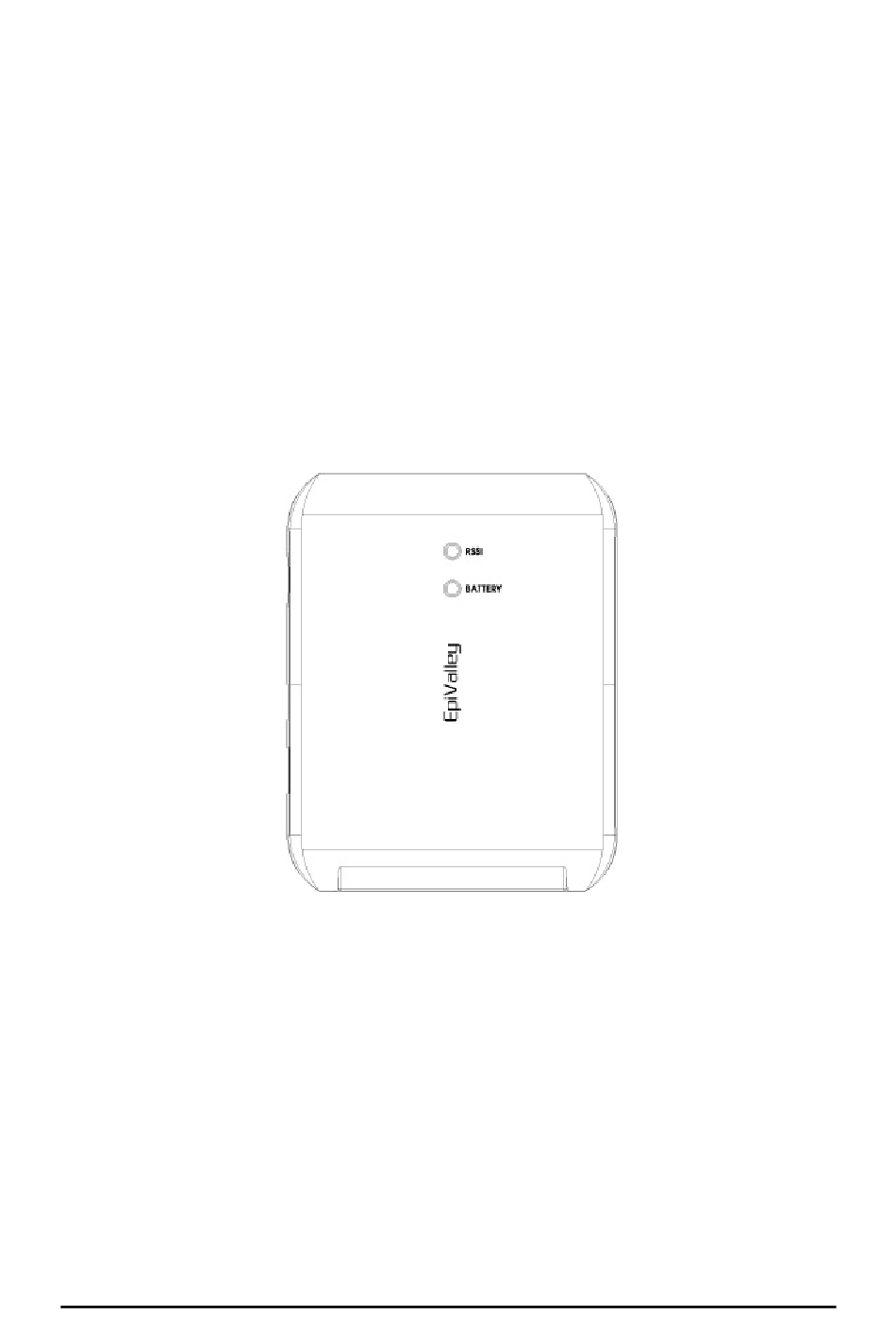

- Page 1 SXT-4080 CDMA 1XRTT FIXED WIRELESS TERMINAL 800 MHz CDMA ECHNICAL ANUAL VOICE COMMUNICATION and PCO/PTB Application CDMA FWT SXT-2180 Technical Manual...
- Page 2 IMPORTANT NOTICES TERMS AND CONDITIONS FOR USE OF SXT-4080 PRODUCTS ("Product") These Terms and Conditions are a legal contract between you and EPIVALLEY Corporation for the title to and use of the Product. BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONS INCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW.
- Page 3 1) Locate the modular line port on your telephone and plug in one end of a standard phone cord 2) Connect the other end of the phone cord to the telephone port on the side of the Unit. NOTE: The SXT-4080 does not support direct computer modem (data) operation through the phone port or fax port.
-
Page 4: Basic Operation
Basic Operation Placing a Call 1) Pick up the handset and listen for a dial tone. 2) Dial the phone number. Receiving a Call When your telephone rings, pick up the handset and begin talking. NOTE: If you hear an incoming call while picking up the handset, you can receive the call by hanging up (placing the handset on the cradle) immediately. - Page 5 Ⅱ . Hidden Menu *Note: User MUST input the security lock code when accessing below menu options. Emergency ‘##01’ - In the Emergency Menu state, you can store 3-address. - Press 1~3 key to select an address slot, and then wait until you have heard a security tone. It likes as short melody. - Enter the security lock code, and press desired Emergency Number and then press ‘...
- Page 6 Ⅲ . Ring / Sound Menu Ring Type ‘##11’ - There are 9-ring types. - When you entered this menu, you can select ‘1~9’. After select one, press ‘ ’ to store ring type. - If you choose ‘0’ key instead of ‘ ’, It will be canceled. - If you press ‘#’...
- Page 7 Ⅳ . Tools Menu Caller ID ‘##21’ - In the Caller ID menu, you can select a CID type for your phone type. - There are 3-types of caller ID. - After choose one of them and press ‘ ’, the item will be stored. - If you don’t want to set a caller ID, press ‘#’, then release.
- Page 8 Ⅴ . Time Menu Alarm ‘##31’ - In the alarm menu, you can set a alarm time that you want. - Enter 4-digits for alarm time as ‘HH-MM’ type. - If you want to set a alarm time, press ‘ ’. - When you press ‘#’, the alarm time will be released.
- Page 9 ⅤI. Setting Menu New Code ‘##41’ - You can change a lock code which is being ‘0000’ as default value. - After enter a command of ‘##41’, you can heard a lock code sound immediately. - At this time, You should enter the current lock code to get an authority to change a lock code. - If the entered current lock code is right, a confirmation tone will be heard.
- Page 10 SUPPLEMENTARY FEATURES (NETWORK DEPENDENT) Call Waiting The feature of call waiting enables you to get an incoming call while you are in a call conversation. You have an option of responding to the second call while putting the first call on hold. You can also disable the call waiting option during a particular call.
- Page 11 SXT-4080 TECHNICIAN PROGRAMMING Technician Programming Commands CDMA WIRELESS LOCAL LOOP 1X TERMINAL SERVICE MANUAL (SXT-4080) Entering service mode(NAM mode) Pick up the handset. Press “*748#96*75259#”, then you can hear a confirmation tone. Press “000000”(security code), then you can hear a confirmation tone.
- Page 12 go to main state. Edit as “0”~”9” Press : go to main state after SPC VALUE(10) “0110” save. Press # : go to main state. Press “0”: use NAM 1 Press “1”: use NAM 1 CHANGE CHANGE NAM “02” Press : go to main state after NAM(02) save.
- Page 13 Home NID6(12) “030712” Home SID7(13) “030713” Home NID7(14) “030714” Home SID8(15) “030715” Home NID8(16) “030716” Home SID9(17) “030717” Home NID9(18) “030718” “030719” Home SID10(19) Home NID10(20) “030720” Home SID11(21) “030721” Home NID11(22) “030722” Home SID12(23) “030723” “030724” Home NID12(24) Home SID13(25) “030725”...
-
Page 14: Pref System
LOCK Home SID4(07) “030807” LOCK Home NID4(08) “030808” LOCK Home SID5(09) “030809” LOCK Home NID5(10) “030810” LOCK Home SID6(11) “030811” LOCK Home NID6(12) “030812” LOCK Home SID7(13) “030813” “030814” LOCK Home NID7(14) LOCK Home SID8(15) “030815” LOCK Home NID8(16) “030816” LOCK Home SID9(17) “030817”... - Page 15 Press 2: B only Press 3:Home only Press 4:Home preferred Press : go to main state after save. Press # : go to main state. Edit as “1”~”2” Press 1: enable Press 2: disable PRL ENABLE(10) “0310” Press : go to main state after save.
-
Page 16: General Information And Safety
The power LED lamp on the front of your SXT-4080 indicates the unit’s power condition. If the LED is GREEN, your SXT-4080 is receiving power. If the power cord is connected and the LED lamp is not lit, the SXT-4080 is not receiving power. Verify that the AC power source and its corresponding circuit breaker are functioning properly. - Page 17 FCC (Federal Communications Commission) Caution The R2NSXT-4080 has been tested for compliance FCC RF exposure limits. The R2NSXT-4080 should not be used with external antennas that are not approved for use with this device. Use of this in any other configuration may exceed the FCC RF exposure compliance limits. A separation between the user's body and the antenna shall be at least 20cm.
- Page 18 Storage Temperature: From -25°C to +75°C; Up to 95% relative humidity (non-condensing). Antenna Care and Replacement Do not use the SXT-4080 with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Have your antenna replaced by a qualified technician immediately.
