Summary of Contents for Securiton SecuriFire B6-PSU

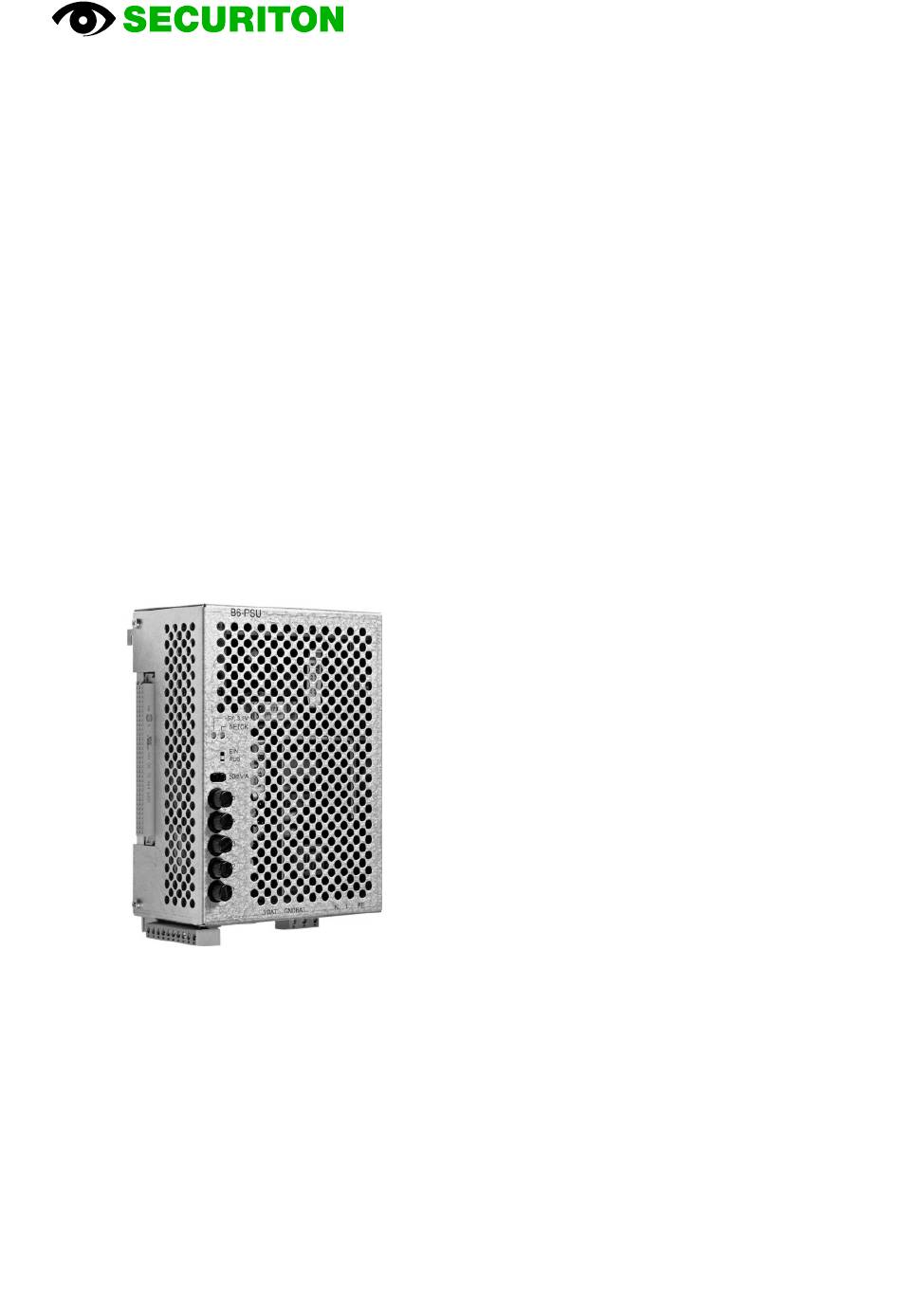

- Page 1 SecuriFire Power Supply Unit B6-PSU Technical Description Securiton AG Alpenstrasse 20 3052 Zollikofen Switzerland T 811 039 en a...
- Page 3 Users are encouraged to contact the editor/publisher if there are statements which are unintelligible, misleading, incorrect, or if there are errors. © Securiton AG, Alpenstrasse 20, 3052 Zollikofen, Switzerland This document, T 811 039 , is available in the following languages:...
- Page 4 Safety information Safety information Provided the product is deployed by trained and qualified persons in accordance with technical document T 811 039 and the danger, safety and general information notices in this technical documentation are observed, there is no danger to persons or property under normal conditions and when used properly.
- Page 5 Document history Document history First edition Date 01 July 2011 Index „a“ Date 08.06.2012 Most important changes compared with first edition: Section New (n) / changed (c) / deleted (d) What / Reason • 7 Article SI-G 8A complement B6-PSU Power Supply Unit, Technical Description, T 811 039 en a 5 / 18...
-
Page 7: Table Of Contents
Contents Contents _________________________________________________________________________________________ General Validity General Compatibility notice _________________________________________________________________________________________ Design and function Overview Interfaces Batteries Connection Battery charge Battery test _________________________________________________________________________________________ Power requirement Typical power consumption values for B6-PSU Power Supply Unit Power requirement calculation Battery current measurement _________________________________________________________________________________________ Displays Fault displays LED displays _________________________________________________________________________________________... -
Page 9: General
General General Validity The following documentation is valid for the SecuriFire B6-PSU Power Supply Unit with edition EG072950--. General The B6-PSU (Power Supply Unit) is fitted in the map case of every SecuriFire 1000/2000 on the right and next to the main control unit. -
Page 10: Interfaces
Design and function Interfaces Mains connection Connector for battery current measurement Output voltage for internal consumers Output voltage for external consumers VBAT battery connection GNDBAT battery connection On/Off switch (mains switch) LED displays Output fuses F1 to F5 Fig. 2 B6-PSU interfaces 10 / 18 B6-PSU Power Supply Unit, Technical Description, T 811 039 en a... -
Page 11: Batteries
Design and function Batteries Power can be supplied to the internal and external consumers either from the mains or internal batteries; this guarantees power supply to the system from two independent sources of energy. If there is a mains voltage or mains power supply fail- ure, the internal batteries automatically supply the system with power. -
Page 12: Battery Charge
Design and function Battery charge The batteries are charged by the mains supply, whereby the temperature-regulated charging voltage is between 26.3 V (at 50° C) and 28.3 V (at 0° C). This guarantees a battery charge of 80% of full capacity within 24 hours. Notice The temperature sensor integrated in the B6-PSU Power Supply Unit monitors the ambient temperature of the SecuriFire SCP. -
Page 13: Power Requirement
If the results of the battery current measurement (example with a 18 Ah battery pair) is not in line with the power requirement calculation (±5%), notify your Securiton Support point immediately. Observe the following procedure precisely: During normal operation, remove the mains plug of the B6-PSUB6-PSU power supply unit of the SecuriFire 1000/2000: •... -
Page 14: Displays
Displays B6-PSU +5V; 3,3V NETOK A 10mA 50mV/A 137,5 Ω VBAT GNDBAT Fig. 4 Battery current measurement Displays Fault displays The document “Module faults”, which will provide a complete description of all module faults, is in preparation. LED displays The B6-PSU Power Supply Unit has two LED displays on the front side which indicate the current state of the board. Display for Status Meaning... -
Page 15: Technical Data
Technical data Technical data Mains input Connection via the mains connection plug (X1) Input effective voltage 230 V +15% / -20% Frequency of the input voltage 47 Hz to 63 Hz Typical efficiency > = 80% if max. output power Max. -
Page 16: Output Voltage For External Consumers (X5)
Technical data 5.2.2 Output voltage for external consumers (X5) Protected by glass tube fuse Output voltage + pole - pole FF 2.5 / 250 V/E VEXT1 X5 PIN 9 X5 PIN 10 VEXT2 X5 PIN 7 X5 PIN 8 VEXT3 X5 PIN 5 X5 PIN 6 VEXT4... -
Page 17: Output Voltage For Internal Consumers (X4)
Technical data 5.2.3 Output voltage for internal consumers (X4) Internal, peripheral Fuse protection Quick-acting 4 A (F3 on main print) Residual ripple < 100 mV (measurement bandwidth 20 MHz) Minimum output voltage for battery test and I= 2 A 20.2 V Idle voltage when batteries full U (0°... -
Page 18: Related Standards And Regulations
Related standards and regulations Related standards and regulations EN 50130-4 Electromagnetic compatibility EN 54-4 Fire detection and fire alarm systems – Power supply equipment EN 55022 Cl. B Information technology – Radio disturbance characteristics EN 60950-1 Information technology – Safety EN 61000-3-2 EMC –...
