Rowlinson SS288A Assembly Instructions Manual

IMPORTANT SAFETY INFORMATION

Adult assembly is required. Checks and
maintenance needs to be carried out on the
main parts (fixings etc.) at regular intervals.
If these checks are not carried out the
product could become unsafe.

Before assembly

•
We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no
less than two people.
•
Never attempt to erect the assembly in
high winds.
•
Drill components where indicated.
x 2
Drill

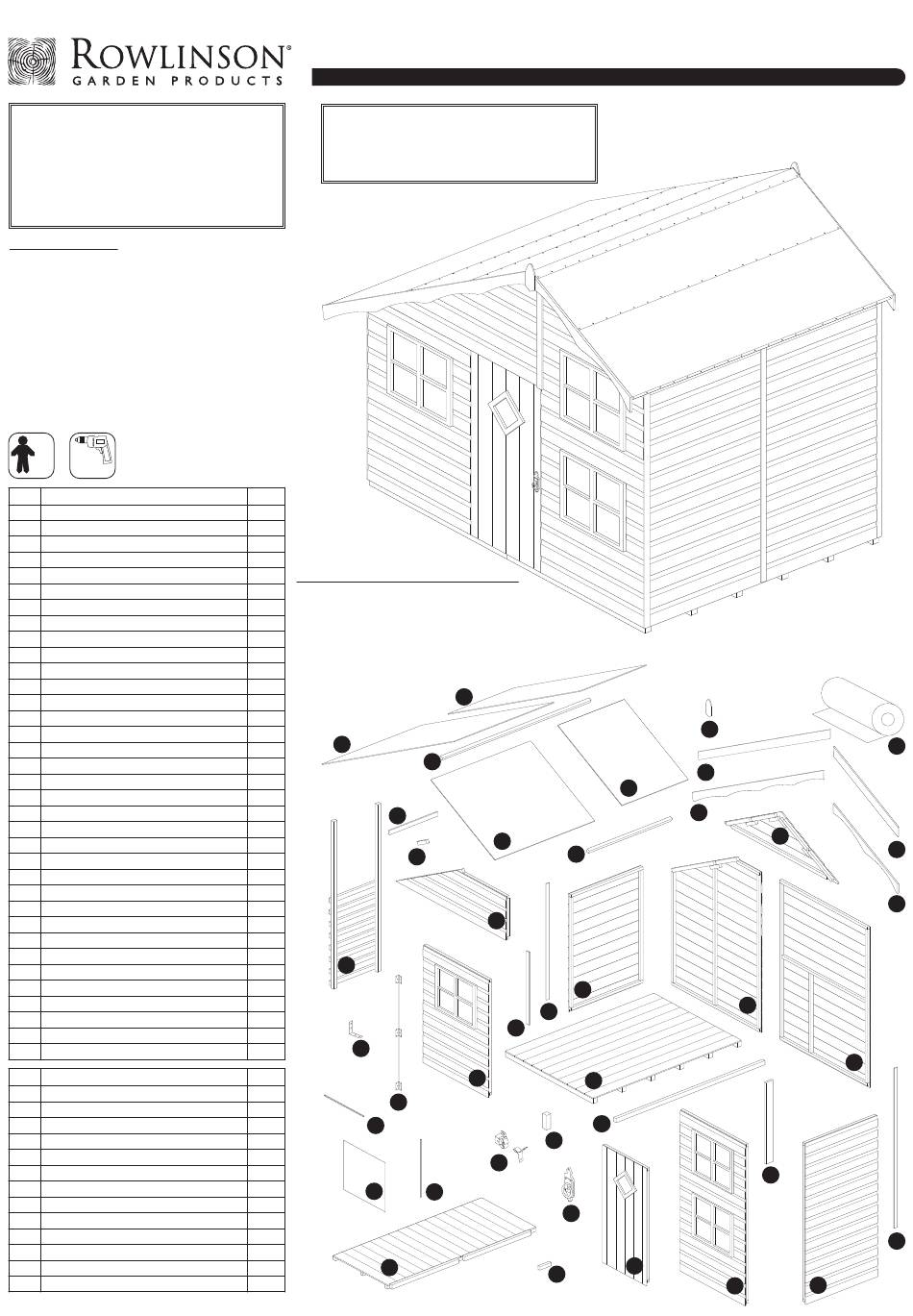

No. Components
1 Floor panel
2 Angled back panel
3 Landing support back panel
4 Small side panel
5 Large side panel
6 Large front window panel
7 Small front window panel
8 door header panel
9 Apex panel
10 Landing Floor
11 Landing support block
(35x29x140mm)
12 Fence top rail
13 Ladder
14 Ladder attachment piece
(500x45x32mm)
15 Fence railing
16 Purlin
(35x29x1815mm)
17 Small front roof panel
(980x1220mm)
18 Small Rear roof panel
(980x811mm)
19 Large front roof panel
(1900x1220mm)
20 Large rear roof panel
(1900x811mm)
21 Felt battens
(1015x29x29mm)
22 Batten blocks
(29x29x140mm)
23 Roofing Felt roll
(10m)
24 Short shaped baregeboard
25 Long shaped bargeboard
26 Short plane baregeboard
27 Long plane bargeboard
28 Door
29 Long side/rear coverstrip
(12x40x1700mm)
30 Short side coverstrips
(12x40x1235mm)
31 Front coverstrips
(12x40x890mm)
32 Window Glazing
(478x398mm)
33 Horizontal beading
(10x10x479mm)
34 Vertical beading
(10x10x382mm)
35 Door hinge
No. Fixing Kit
36 Finial
37 Catch mounting block
(29x29x80mm)
38 Roller catch kit
39 Metal L-Brackets
40 Door handle
41 50mm screws
42 35mm screws
43 25mm screws
44 19mm black round head screws
45 10mm round head screws
46 35mm nails
47 20mm nails
48 10mm felt nails
Playaway Swiss Cottage
Assembly Instructions
WARNING
Not suitable for children under 36 months
due to small parts and sharp points.
Qty.
2
1
1
2
2

Recommended tools for assembly

1 •
Cross head screw driver
1 •
Hammer
1
•
Sharp knife
2
•
Drill with 3mm diameter drill bit
1
•
Spirit level
1
•
Tape measure
1
•
Silicon sealant
1
•
Step ladder
1
10
19
5
16
1
1
1
1
14
4
10
22
1
1
1
1
1
1
4
13
3
1
3
6
6
39
1
Qty.
2
35
1
1
33
2
1
72
82
32
34
26
4
4
90
36 10
139
20
18
17
21
8
4
30
31
7
1
12
37
38
40
28
11
English SS288A
36
27
25
9
2
3
15
6 5
23
26
24
29
