Instruction Sheet
P ICT URE F RAM ING

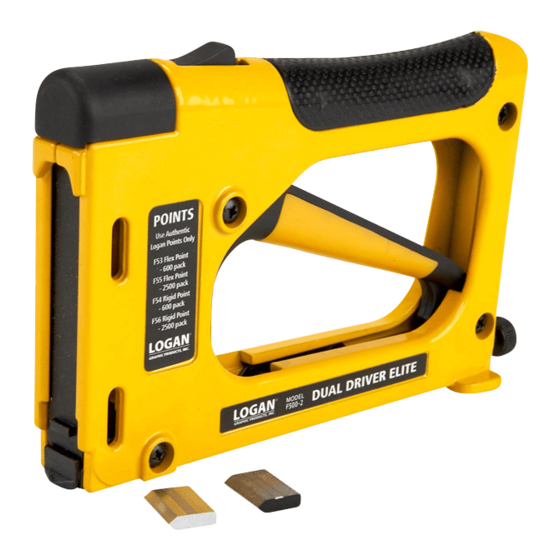

Dual DrivE Elite
Point Driver

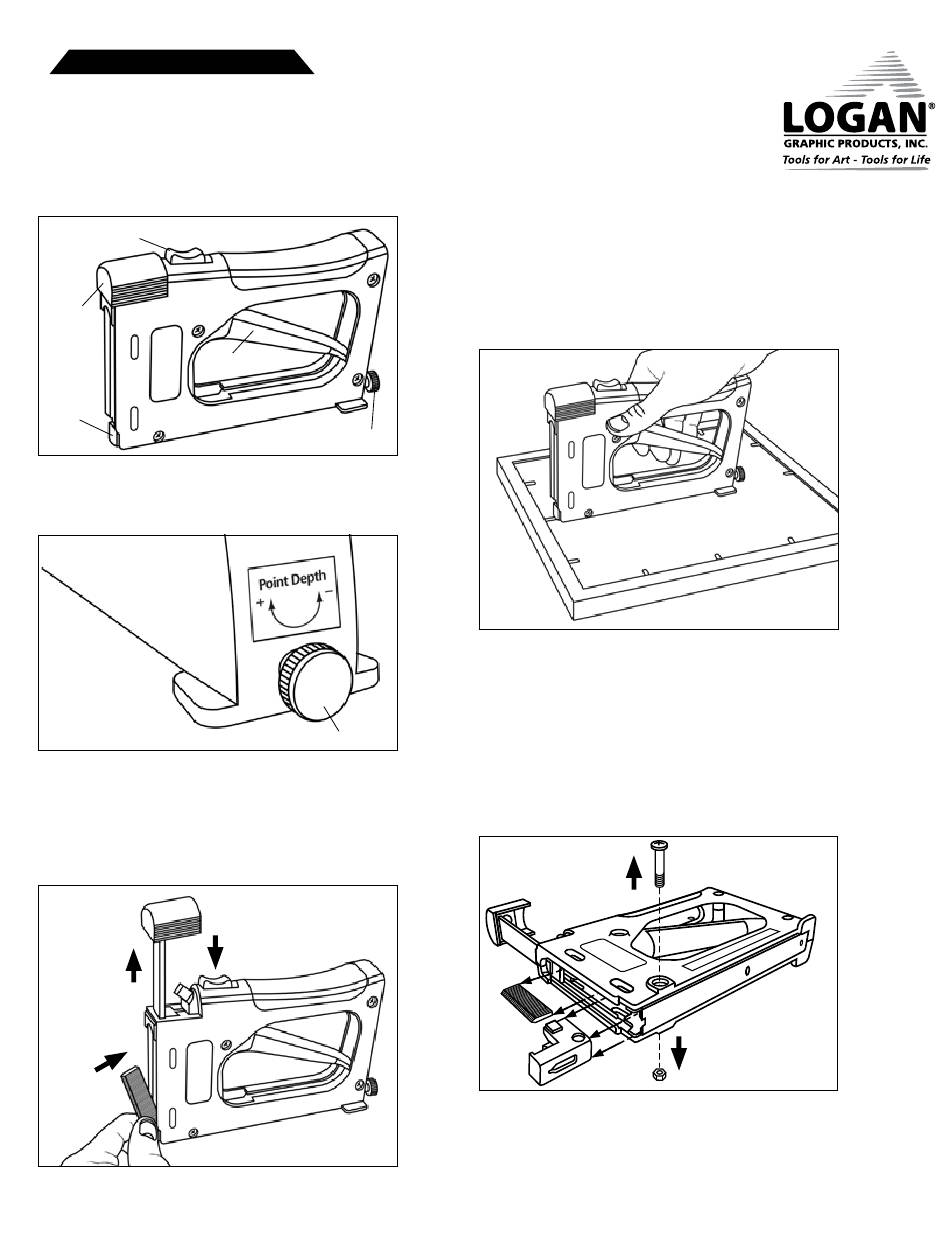

Identification
Cover Release Button
Point
Loading
Cover
Nose
Adjust Point Depth
Increase drive tension for hardwoods and
decrease for softwoods.
Loading Points
1. Press release button
2. Pull up cover
3. Install point strips with point facing forward
4. Slide cover closed
1.
2.
3.
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084
Trigger
Point Depth Adjustment
Adjustment Screw
Operation
1. Hold outside of frame
2. Press driver nose against inside frame
3. Keep drive flat on material - DO NOT LIFT OR
ANGLE
4. Squeeze trigger to insert point
5. Space points 6" apart, 3" from corners
Replacement Points
Use only Logan Points
F53 - Flex (600)
F54 - Rigid (600)
F55 - Flex (2500) F56 - Rigid (2500)
Point Jammed
1. Remove points
2. Remove nose screw and nut
3. Remove nose piece and discard jammed point
2.
1.
3.
See the entire line of Logan DIY Picture Framing Tools and Mat
Cutting Equipment at www.logangraphic.com or call 1-800-331-6232
for more information.
Model F500-2
www.logangraphic.com
L0166N 1/10
