Swegon TuneWISE Instructions For Use

Scanner TuneWISE a-KIT
Instructions for Use

Application area

Scanner TuneWISE is used with the hand-held terminal TuneWISE and
dongle Connect WISE USB to identify each product and to link it with the
function it is designed to fulfil in the WISE system.
Product identification is performed by reading the product's QR code using
the scanner TuneWISE and communicating with TuneWISE via Bluetooth.

General

All relevant personnel must acquaint themselves with these instructions
before beginning work. Any damages to the product or parts of it due
to improper handling cannot be considered subject to warranty if this
instruction has not been followed correctly. For further information about
the WISE, see the relevant documentation at www.swegon.com

The packaging contains the following items:

1 x Scanner TuneWISE
1 x Charging station
1 x Power adapter
1 x Instructions for use

Safety

Only service personnel trained by Swegon may perform actions in connec-
tion with the pairing of products with the system.
You must not look into the laser light.

Installation

Check to make sure that the product does not have any visible defects.
Connect the charging station's power adapter to a wall socket and charge
the hand scanner, see figure 1.
Prior to using for the first time, charge fully for 4.5 hours.

Use

Once Scanner TuneWISE has been charged and connected to TuneWISE as
per the instruction on page 2 the scanner is ready to use.
Make the products' QR-code visible before pairing.
The products' codes are read by directing the laser pointer with the red
dot towards the QR code at the same time as the trigger is pressed.
Commissioning must be performed by an authorised and qualified WISE
service engineer.

Trouble shooting

Check that the product is charged and correctly connected to the hand-
held terminal TuneWISE.

Cleaning

If necessary, use a dry cloth when cleaning. Never use water, detergent,
cleaning solvent or a vacuum cleaner.

Service/maintenance

If you suspect that the product has some defect, please contact Swegon.

Disposal

Must be handled according to local regulations.

Warranty

The warranty or service agreement will not be in effect/will not be
extended if: (1) the product is repaired, modified or changed, unless such
repair, modification or change has been approved by Swegon AB; or (2)
the serial number on the product has been made illegible or is missing.
English
25/10/2017

Technical data

Scanner
Frequency band:
Charging time:
Using time per charge
Battery:
IP class:
Laser product class:
Colour:
Ambient temperature:
RH:
Weight scanner:
Charging station
Power supply:
Max. power consumption:
Weight:
Declaration of Conformity
Swegon AB hereby declares that the radio equipment Scanner Tune-
WISE conforms with the Directive 1999/5/EC, 2014/35/EU and Directive
2011/65/EU.
The complete EU Declaration of Conformity is available at Swegon's website:
www.swegon.com.
This declaration is applicable only if the product has been installed according
to the instructions in this document and if no changes have been made on this
product.
3
0
1
6 5

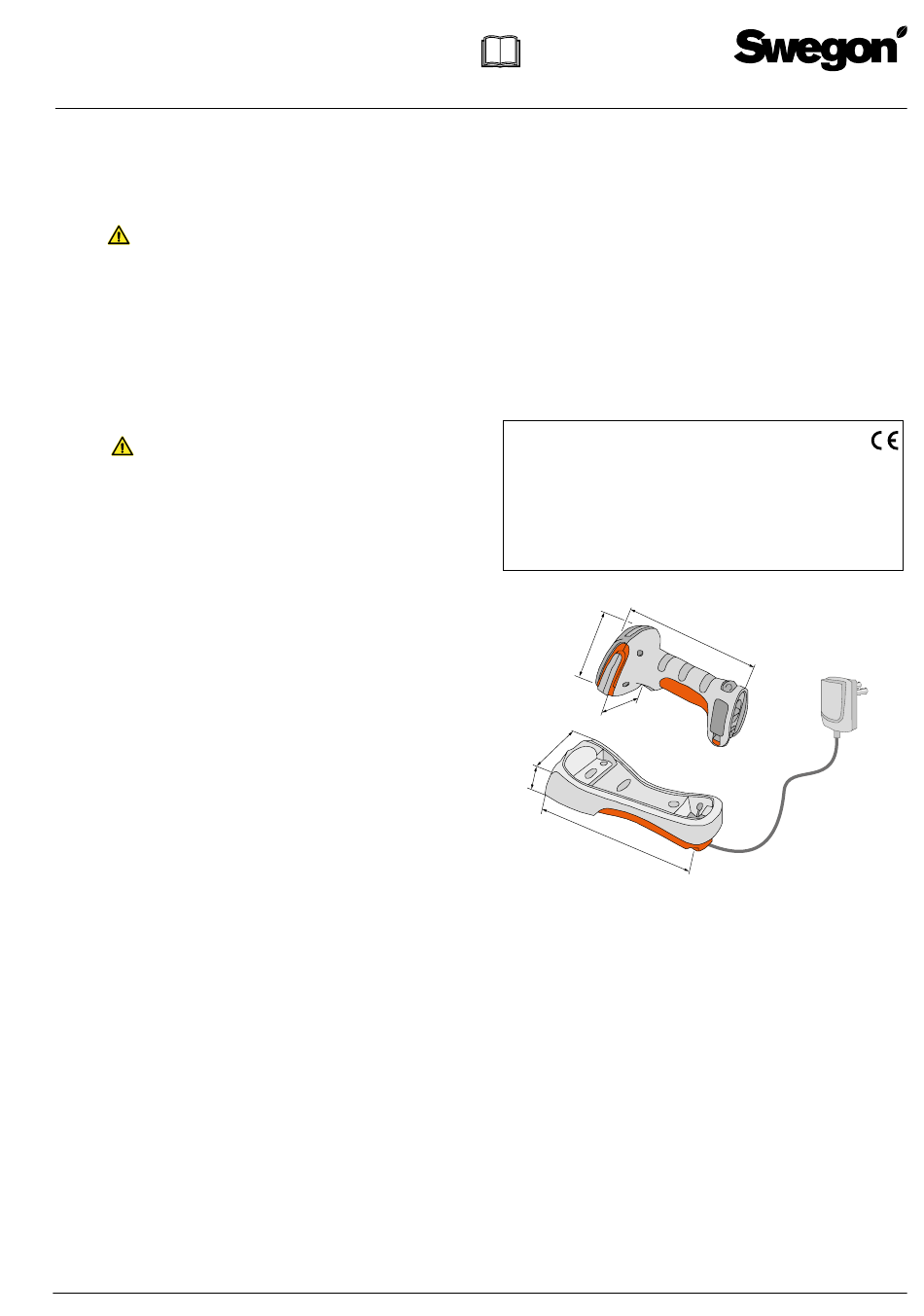

Figure 1. Scanner TuneWISE-KIT consists of hand scanner, charging station and power adapter.
Swegon reserves the right to alter specifications.
2.4-2.5 GHz, IMS-band (2400--2483 MHz)
4.5 hours
8 hours
2000 mAh Li-ion minimum
IP65
Class 2
Black/orange
Operating: -20 – + 50°C, Storage: -40 – +70°C
0 – 95% Non-condensing
420 g
+230V AC
5W
290 g
2 1 0
9 9
7 5
2 5 0
