Summary of Contents for bolid S2000-APA

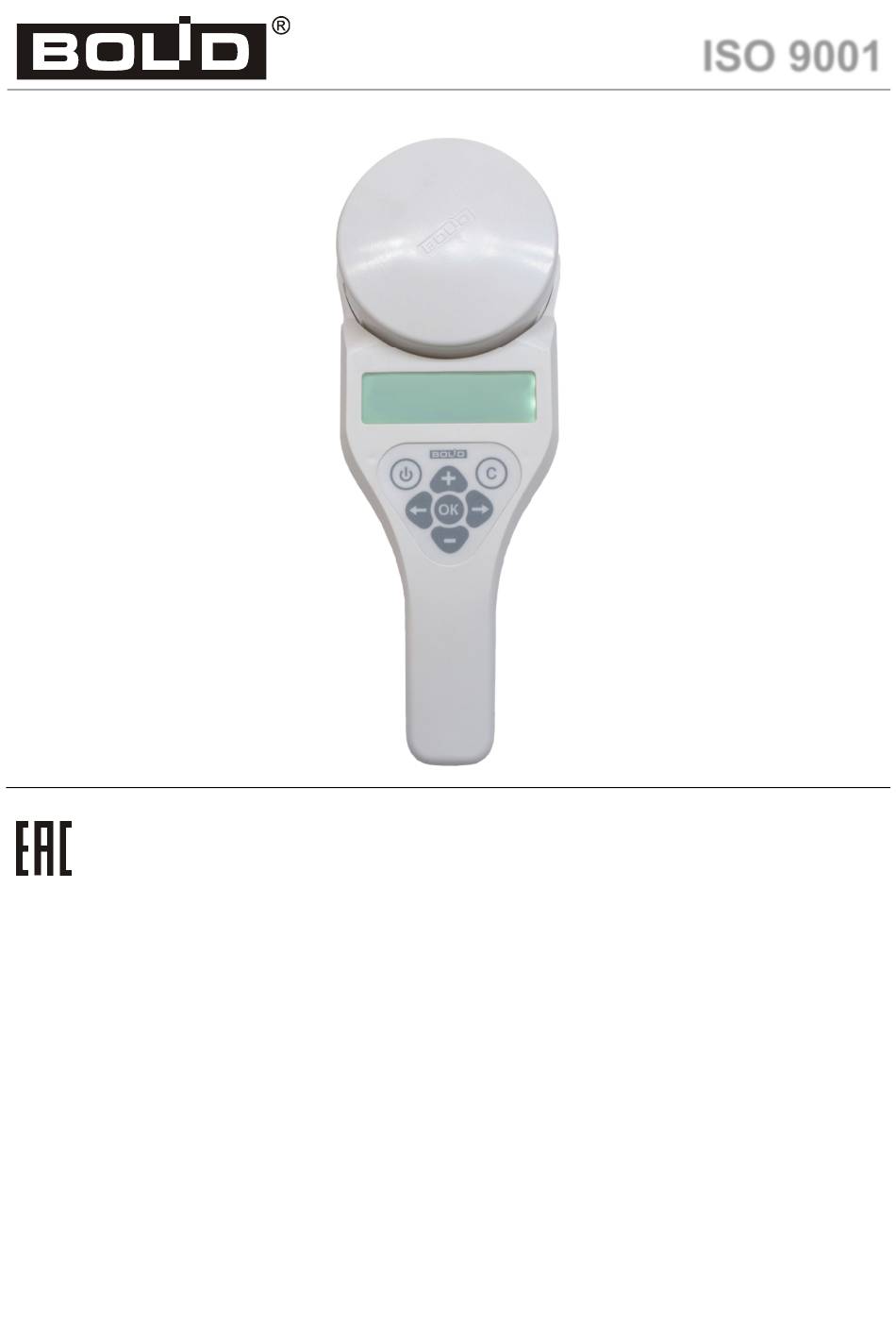

- Page 1 ISO 9001 Standalone Addressable Device Programmer S2000-APA User’s Manual...
- Page 2 This User’s Manual is intended to help for studying operability principles and maintenance of S2000-APA Standalone Addressable Device Programmer. Please read the instructions completely before connecting, operating, adjusting, or maintaining this programmer.
-
Page 3: Table Of Contents
S2000-APA CONTENTS General ............................4 Specifications ......................... 4 Standard Delivery ........................4 Safety Precautions ........................4 Description..........................5 Main Menu ..........................6 Adjusting the Programmer ..................... 7 2.2.1 Adjusting the Data Communication Protocol ..............7 2.2.2 Adjusting the Backlight Brightness ................8 2.2.3... -
Page 4: General
ISO 9001 1 General S2000-APA Standalone Addressable Device Programmer (hereinafter referred to as the APA) is designed to assign addresses to addressable devices connected into the polling loops of S2000-KDL controllers and addressable devices connected into the Fire Threshold Addressable alarm loops of Signal-10 control units with PA data communication protocol. -
Page 5: Description

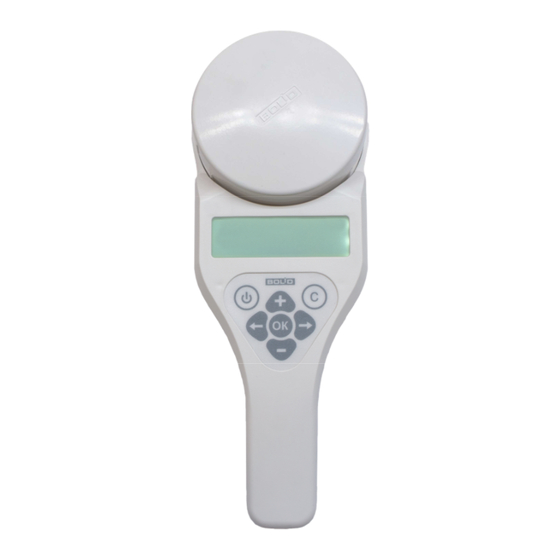

S2000-APA 2 Description To program smoke, heat, and gas detectors with addresses, APA is equipped with a DIP-34A-03 base . To program other addressable devices, install the base adapter provided into the base. Figure 1 shows the view and the control buttons of the APA. -
Page 6: Main Menu
Switch the programmer on/off (hold the button pushed for 3 seconds). Move between menu options. Enter the selected menu option. Cancel/Quit to the main menu. The options of the main menu are as follows. Change Address Set Addresses Read Parameters Settings Info http://bolid.ru... -
Page 7: Adjusting The Programmer
S2000-APA 2.2 Adjusting the Programmer 2.2.1 Adjusting the Data Communication Protocol Select Settings in the main menu by means of the buttons: Then press The first menu option provides selecting the data communication protocol for the programmer to operate with an addressable device:... -
Page 8: Adjusting The Backlight Brightness
Settings menu to select the option BL Brightness: By the buttons adjust brightness level of the backlight. To save changes and to return to the main menu, press To return to the main menu without saving changes, press http://bolid.ru... -
Page 9: Adjusting Lcd Contrast
S2000-APA 2.2.3 Adjusting LCD Contrast Select Settings in the main menu by means of the buttons: Then press Select the LCD Contrast option ( ) of the Settings menu by the buttons. Adjust the contrast level of the display by means of the buttons. -
Page 10: Adjusting The Time Before The Backlight Turns Off
Settings menu to select the option Backlight Off: Select the timeout value using the buttons To save changes and to return to the main menu, press To return to the main menu without saving changes, press http://bolid.ru... -
Page 11: Adjusting Auto-Shutdown Settings
S2000-APA 2.2.5 Adjusting Auto-shutdown Settings Select Settings in the main menu by means of the buttons: Then press In the Settings menu use the buttons to select the option Auto Power-Off: Using the buttons select the time for the programmer to shutdown automatically. -
Page 12: Adjusting Sound Settings
Then select the required setting by the buttons Sound effects are available, or Sound effects are disabled. To save changes and to return to the main menu, press To return to the main menu without saving changes, press http://bolid.ru... -
Page 13: Battery Voltage
S2000-APA 2.2.7 Battery Voltage Select Settings in the main menu by means of the buttons: Then press In the Settings menu by means of the buttons select the option Battery Voltage: In the information area of the display the current battery percentage of capacity and battery voltage shall be indicated. -
Page 14: Changing Address
On completing the operation the result can be seen on the display: – If no addressable device is found then the display will be as follows: To quit to the main menu, press http://bolid.ru... - Page 15 S2000-APA – If the addressable device is found then its name, address and the firmware version will be shown on the display: 1: The name of the addressable device; 2: The device picture; 3: The device address; 4: The firmware version of the addressable device.
- Page 16 On completing the search the display will show the information about the addressable device: To quit to the main menu, press If the addressable device has not responded the display indicates an error: To quit to the main menu, press http://bolid.ru...
-
Page 17: Changing Address Of An Addressable Device Using The Pa Protocol
S2000-APA 2.3.2 Changing Address of an Addressable Device Using the PA Protocol The PA address can be changed only for addressable devices which have already been assigned with addresses. In the main menu use the buttons to select the option Address Change: Select PA as the protocol type (see Section Adjusting the Data Communication Protocol). - Page 18 If the address change operation has succeeded then a search procedure shall be started: On completing the search the display will show the information about the addressable device with the new address: To quit to the main menu, press http://bolid.ru...
- Page 19 S2000-APA If the addressable device has not responded to the command to change address then the display indicates an error: To quit to the main menu, press WARNING: Addressable detectors operating with a Signal-10 come with indefinite factory addresses. To assign addresses to them do the following: For DIP-34PA and S2000-IP-PA detectors it is necessary to: •...
-
Page 20: Setting Addresses
To start the procedure of setting addresses, press Connect an addressable device to the programmer via the DIP-34A-03 base or via the base adapter observing polarity. The programmer will automatically find the addressable device and change its address for a next address of the given range. http://bolid.ru... - Page 21 S2000-APA When an addressable device is responding to programmer commands the display indicates the procedure of changing address: If the addressable device with the new address has not responded the display indicates an error: To cancel operation and quit to the main menu, press...
-
Page 22: Reading Data
If the addressable device is assigned to several addresses then select the required address by the buttons and press 1 – The name of the selected addressable device; 2 – The icon of the parameter; 3 – The value of the parameter; 4 – The description of the parameter or the units of measurement. http://bolid.ru... - Page 23 S2000-APA The parameter icons can be: Request for analog-to-digital converter value Request for dustiness value Request for voltage value Parameters and units of measurement: - Analog-to-digital converter units - Dustiness of the smoke chamber of the detector - Parts-per-million (10...
-
Page 24: Reading The Status Of An Addresable Device Using The Pa Protocol
– If the addressable device is found then its address will be shown on the display: To quit to the main menu, press To read the status of the addressable device, press 1: Addressable device picture; 2: The code of the status of the addressable device; 3: The short description of the status type. http://bolid.ru... - Page 25 S2000-APA The status can be one of the following: - The smoke alarm is dusted and requires service - Norm - Fault - Tested - Fire Alarm (for a smoke or heat detector) - Manual Fire Alarm (for a manual call point)
-
Page 26: Information
In the main menu use the buttons to select the option Info: Then press Move between menu options Quit to the main menu 2.6.1 Programmer Data Device Type: S2000-APA Firmware version: V1.00 Model: 0 Revision: 5 Date: 05.2017 ID: 01234567 2.6.2 Manufacturer Data Manufacturer: Bolid CJSC 2.6.3 Manufacturer Address... -
Page 27: Company Phone/Fax
S2000-APA 2.6.4 Company Phone/Fax Company phone/fax: (495) 775-71-55 (multi-channel), 777-40-20 2.6.5 Manufacturer Site and E-Mail E-mail: info@bolid.ru The last version of the firmware along with additional information about operating the programmer are available in Internet at the address of: www.bolid.ru. -
Page 28: Connecting To The Charger
– The icon shows the level of battery charge. – The icon shows that the programmer is connected to the charger. WARNING: While the batteries are being charged the programmer doesn’t turn off automatically. To switch the programmer off, press and hold the button http://bolid.ru... -
Page 29: Updating Programmer Firmware
(PRODUCTS → Integrated security system “Orion” → AUXILIARY EQUIPMENT → S2000-APA → Download) in the section Firmware. Run the update file UpdateS2000_APA-En_Vx_xx.exe. To cancel updating and quit the program, click Close. To start updating, click Next. - Page 30 ISO 9001 Wait until updating is completed: When updating is completed the programmer will proceed to the operating mode and turns on. To quit the program, click Close. http://bolid.ru...
-
Page 31: Troubleshooting
S2000-APA 5 Troubleshooting The table below shows common problems and ways for their repairing. Problem Possible Cause Remedy Connect the programmer to the The programmer doesn’t turn Low battery charger and recharge the batteries Faulty programmed device or Connect an operative... -
Page 32: Maintenance
When using the programmer it is necessary to monitor the level of battery charge and recharge the batteries in time. Visit the Bolid site periodically to know whether a new version of programmer firmware has been published and update the firmware.
