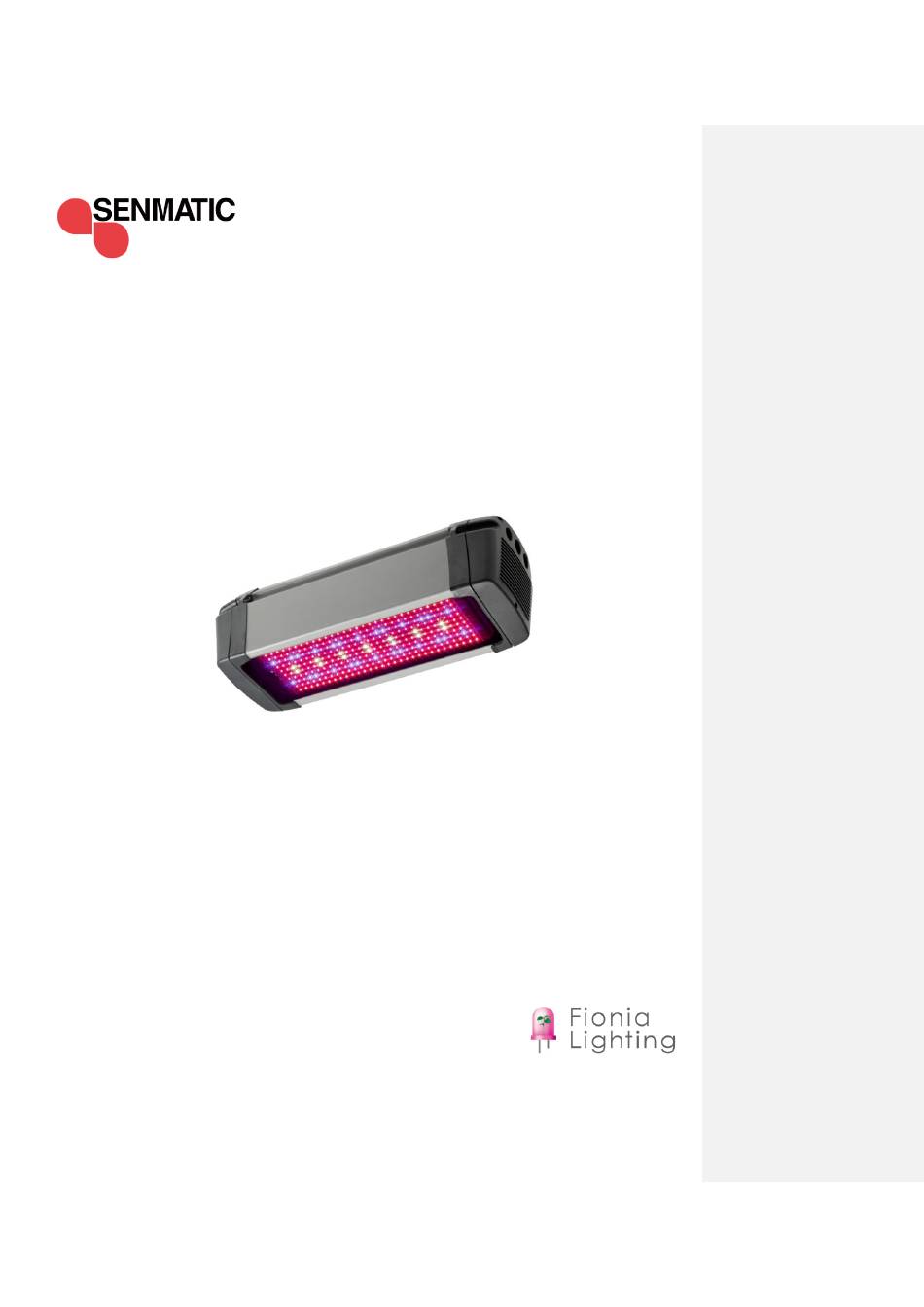

  • Page 1 User and installation manual Fionia Lighting FL300...
  • Page 2 RoHS Declaration of Conformity We, Senmatic A/S, hereby declare that the FL300 intended for horticultural lighting has been developed and produced in conformity with: EMC directive: 2004/108/EC EN 55015:2006 Limits and methods of measurement of radio +A1/2007 disturbance characteristics of electrical...

  • Page 3: Table Of Contents

    Senmatic DGT Fionia Lighting FL300 Contents: Preface ..............................4 Introduction............................5 FL300 ..............................6 Models .............................. 7 FL300 Grow ............................ 7 FL300 Sunlight ..........................8 FL300 Grow White.......................... 9 Controlling the FL300 .......................... 10 Controls ............................10 Light sum control ..........................11 Dynamic Intensity .........................

  • Page 4: Preface

    Senmatic DGT Fionia Lighting FL300 Preface Congratulations with your new LED fixture, FL300. We recommend you to read this user guide before the product is installed and come into use. Please check that the product is undamaged. Possible transport damages must be noticed 8 days after reception at the latest.

  • Page 5: Introduction

    Senmatic DGT Fionia Lighting FL300 Introduction This user guide contains a description of the FL300 and the different versions of it, along with instructions how to control the FL300 via climate computer LCC4 or PC program Interface. The last section of this guide is a description of how to install the FL300.

  • Page 6: Fl300

    Senmatic DGT Fionia Lighting FL300 FL300 FL300 is a 100-600W LED fixture for the horticultural industry. The fixture is adjustable in both intensity and spectrum so it can be set to fit the individual crops in the different productions periods the best way possible.

  • Page 7: Models

    Senmatic DGT Fionia Lighting FL300 Models The FL300 fixture can be equipped with a large range of different diodes for different purposes. The versions described in this manual are the FL300 Grow, FL300 Sunlight and FL300 Grow White. FL300 Grow...

  • Page 8: Fl300 Sunlight

    Senmatic DGT Fionia Lighting FL300 FL300 Sunlight FL300 Sunlight has a spectrum designed to replica the light coming from the sun as shown below with the curve for sunlight and the spectral distribution of FL300 Sunlight. Wavelength (nm) Figure 5: Spectral distribution of FL300 Sunlight for the power usages 500W, 400W, 300W, 200W and 100W together with spectral profile of sunlight.

  • Page 9: Fl300 Grow White

    Senmatic DGT Fionia Lighting FL300 FL300 Grow White The FL300 Grow White is emitting light in the photosynthetic active region of the visible light spectrum and is a combination of the FL300 sunlight and the FL300 standard. Wavelength (nm) Figure 7: Spectral distribution of the FL300 Grow White together with action spectrum of plants.

  • Page 10: Controlling The Fl300

    Senmatic DGT Fionia Lighting FL300 Controlling the FL300 The FL300 are designed so the spectrums can be controlled to fit the individual crops in combination with LCC4 climate control systems. An alternative to the LCC4 climate control system is Fionia Lighting Interface Software.

  • Page 11: Light Sum Control

    Senmatic DGT Fionia Lighting FL300 Light sum control To get the full benefits of the FL300 they should be installed together with a light sensor. The light can be controlled with dynamic intensity, light sum for down adjustment (DLI) or both.

  • Page 12: Light Intensity Start - Stop

    Senmatic DGT Fionia Lighting FL300 Light intensity start – stop Limit for the light measured outside. A measuring lower than this will cause the light to turn on. A measuring higher than this will cause the light to turn off. In addition there is a hysteresis, a start- and a stop delay.

  • Page 13: Programs

    Senmatic DGT Fionia Lighting FL300 Programs This chapter shows how to control the FL300 though the LCC4 climate control system with LED control menu and through a PC with Fionia Lighting Interface Software. Logic Climate Control 4 The LCC4 can control up to 16 houses with each up six groups of fixtures. Each house can have two light sensors attached.

  • Page 14: Light Menu

    Senmatic DGT Fionia Lighting FL300 In the I/O table is shown where the relays are going to be connected. In the I/O table below are shown an installation with four fixture groups on the position DO12-DO15. LCC Small Exp input output table 5...
  • Page 15 Senmatic DGT Fionia Lighting FL300 Overview is the first tap in the light menu and shows how the fixture groups are running. Figure 13: Overview The six fixture groups. Total light sum for the day for the area the fixture group is illuminating.

  • Page 16: Readings

    Senmatic DGT Fionia Lighting FL300 Readings Here it is possible to see more about each group. Figure 14: Readings The first four points tells about the light in the group. Light active – Shows if the group is on or off.

  • Page 17: Settings

    Senmatic DGT Fionia Lighting FL300 Settings In the settings tab the groups can be set to have up five different programs throughout the day. Figure 16: Settings Enter the daily programs for each group. Start – Enter start time of the program (hour : minute : second).

  • Page 18: Service

    Senmatic DGT Fionia Lighting FL300 Service In the service tab it is possible select the fixture type and divide the fixtures in to the six groups. Figure 17: Service – Group installation For dynamic light control and DLI there have to be a light sensor connected to the LCC4.
  • Page 19 Senmatic DGT Fionia Lighting FL300 Service settings Here it is possible to select the fixture type and model to get the right programs to choose from in the tab settings. Figure 18: Service – [7] Settings Lamp type – Select fixture type shown on the label (see Figure 8 page 10).
  • Page 20 Senmatic DGT Fionia Lighting FL300 Calibration and test Here the fixtures can be tested. Figure 19: Service – [8] Calibration and test The channels of the fixture can here be tested individual by selecting there value separately, both in groups and for each fixture.

  • Page 21: Fionia Lighting Interface Software

    Senmatic DGT Fionia Lighting FL300 Fionia Lighting Interface Software Fionia Lighting Interface Software is a PC program for changing the program in the FL300. Interface can control up to six groups of fixtures. In general the software has four pages: ...

  • Page 22: Control - Page

    Senmatic DGT Fionia Lighting FL300 Control - page At the first page “Control” it is possible to select the programs for the groups. Figure 21: Control page Each group is controlled separately. Group 1 – Select the program for all fixtures that are in group 1.

  • Page 23: Groups - Page

    Senmatic DGT Fionia Lighting FL300 Groups - page The group page is where the fixtures are told which group they belong to. Figure 22: Groups page Before changing a program for a fixture it has to be installed into a group.
  • Page 24 Senmatic DGT Fionia Lighting FL300 1) Choose lamp type: Figure 23: Lamp type Add lamp address in Address, start (If you only have to install one lamp it is not necessary to write in Address, End): Figure 24: Lamp address Page 24 Rev.
  • Page 25 Senmatic DGT Fionia Lighting FL300 4) Click on “Add”, and the lamp will be installed. Figure 25: Add lamp Now it is possible to change the program for lamp address 544. User manual Rev. 30-10-2017 Page 25...

  • Page 26: Programs - Page

    Senmatic DGT Fionia Lighting FL300 Programs – page The program page is where it is possible to make new programs. Figure 26: Programs page Programs – Shows all the programs you have made yourself. Delete – Click to delete the program selected in Add –...

  • Page 27: About - Page

    Senmatic DGT Fionia Lighting FL300 About – page On the About page it is possible to see the version number of the software on the PC. Figure 27: About page Choose language of the program Check if there is any updates for the software Select COM port to use.

  • Page 28: Technical Specification

    Senmatic DGT Fionia Lighting FL300 Technical specification Power input 230 V AC / 50-60 Hz Power usage 100-600 watt (adjustable via controller) Net weight 12.4 kg Dimension 550 x 230 x 160 mm Operating ambient temperature 0-40 °C Operating relative humidity...

  • Page 29: Overall Installations Instructions

    Senmatic DGT Fionia Lighting FL300 Overall installations instructions FL300: All connections should be connected via the specified cables. Place the FL300 according to the lighting plan. The fixtures are to be organized according to the IP-addresses, so that they are installed logically and continuous in rows according to the lighting plan.

  • Page 30: Installation

    Senmatic DGT Fionia Lighting FL300 Installation Fixture plan To get the best distribution of the light and thereby also the best installation, it is important to follow to fixture plan made by your distributor. This will show the optimal height and position for the fixtures.

  • Page 31: Installation Of Communications Units

    Senmatic DGT Fionia Lighting FL300 Installation of communications units LCC4 Below are shown how the LCC4 connects to the fixtures. Logic Climate Control 4 Internet Connected to the internet to:  remote control from PC with VNC  remote support Connect up to: ...

  • Page 32: Connecting The Communication Wires

    Senmatic DGT Fionia Lighting FL300 Connecting the communication wires The communication wires are connected to the X20CS1030 with pin assignment in RS485 mode . There are two X20CS1030 modules in the expansion for the connection of the fixtures. Figure 31: The X20 module in the expansion – outtake of the X20CS1030 The communication wires should be connected to the top connections on the X20CS1030.

  • Page 33: Connecting The Light Relay

    Senmatic DGT Fionia Lighting FL300 Connecting the light relay Each group of fixtures need a 24 VDC relay. The relays for the fixtures are connected to a digital output module either X20DO8322 or X20DO2322 In the expansion. Figure 34: The X20 module in the expansion – with the X20DO8322 modules.

  • Page 34: Setup In The Lcc4

    Senmatic DGT Fionia Lighting FL300 Setup in the LCC4 To setup the LCC4 for LED fixtures go to the setup menu and the tab house settings Figure 36: House setup Choose department for edit – Select what house to edit.

  • Page 35: Interface

    Senmatic DGT Fionia Lighting FL300 Interface Together with the delivered USB stick with Interface software there is an interface box. Figure 38: Interface box 1. Step: Connect the USB stick from the interface box to the PC where the software is installed.
  • Page 36 Senmatic DGT Fionia Lighting FL300 2. Step: Connect the communication wire form the fixture like showed below. Figure 39: Communication connected Blue wire connected to RS485 – Data+ Black wire connected to RS485 – Data- The Hardware is now connected and ready to use.

  • Page 37: Product List

    Senmatic DGT Fionia Lighting FL300 Product list Here is a list over the different versions of the FL300 and the components that can be ordered with the FL300. DESCRIPTION: ITEM NO.: LED Fixtures: FL300 Grow 490301 FL300 Sunlight 490312 FL300 Grow White...
