INDUSTRIAL MONITOR CONVERTER
GBS-8219
OTHER SYMBOLS:
GBS8219, GBS 8219, GBS-8219
RGB ELEKTRONIKA AGACIAK CIACIEK
SPÓŁKA JAWNA
Jana Dlugosza 2-6 Street
51-162 Wrocław
Poland
biuro@rgbelektronika.pl
+48 71 325 15 05
www.rgbautomatyka.pl
www.rgbelektronika.pl
www.rgbelektronika.pl
www.rgbautomatyka.pl
Advertisement
Table of Contents
Related Manuals for Digital Systems Design GBS-8219
Summary of Contents for Digital Systems Design GBS-8219
- Page 1 DATASHEET INDUSTRIAL MONITOR CONVERTER GBS-8219 OTHER SYMBOLS: GBS8219, GBS 8219, GBS-8219 RGB ELEKTRONIKA AGACIAK CIACIEK SPÓŁKA JAWNA Jana Dlugosza 2-6 Street 51-162 Wrocław www.rgbelektronika.pl Poland biuro@rgbelektronika.pl +48 71 325 15 05 www.rgbautomatyka.pl www.rgbautomatyka.pl www.rgbelektronika.pl...
- Page 2 YOUR PARTNER IN MAINTENANCE Repair this product with RGB ELEKTRONIKA ORDER A DIAGNOSIS LINEAR ENCODERS SYSTEMS INDUSTRIAL COMPUTERS ENCODERS CONTROLS SERVO AMPLIFIERS MOTORS MACHINES OUR SERVICES POWER SUPPLIERS OPERATOR SERVO PANELS DRIVERS At our premises in Wrocław, we have a fully equipped servicing facility. Here we perform all the repair works and test each later sold unit.
- Page 3 Digital Systems Design May 2011 User Manual...
- Page 4 In addition, information contained herein is subject to change without notice. Every precaution has been taken in the preparation of this manual, nevertheless, Digital Systems Design assumes no responsibility for errors or omissions or any damages resulting from the use of the information contained in this publication.

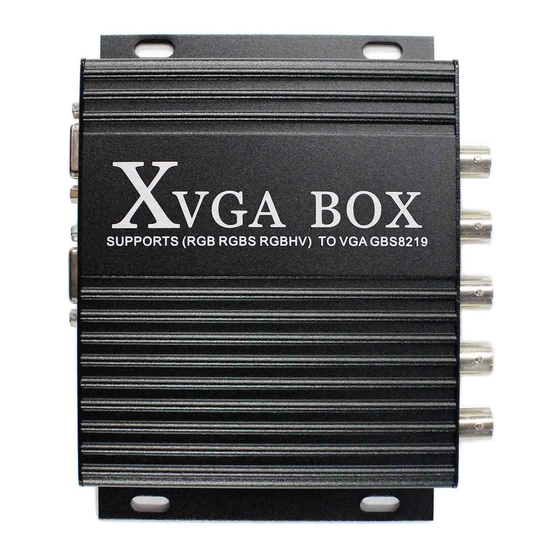

- Page 5 After many years of development and testing, and on the strength of previous products in the industrial CNC video field, the GBS-8219 was developed. The GBS 8219 accepts a wide range of Industrial video signals, RGB/CGA/VGA and allows them to be converted for use on modern VGA/SVGA display systems, such as LCD panels, which are far more widely available, and much cheaper and safer to use.
- Page 6 3. Interface Specifications " To connect V Synch interface of the input device ¡ H/CS To connect H(CS) Synch interface of the input device ¢ R/Pr Red signal input/ Pr signal input Input Channel A £ Green signal input/ YPBPR -Y signal input ¤...
- Page 7 Table 4.2 Definition for Input Channel B " PbYPr YPbPr input signal (Fig 4.2) Interface: three BNC slot, connected to the corresponding Pb, Y, Pr interface, then Y monochrome port. Fig 4.2 Analog 3BNC (YPBPR) Input. RGB SOG input signal (Fig 4.3) Interface: three BNC slot, connected to the...
- Page 8 5. Operational OSD Menu " -Press to enter the OSD MENU menu -Press once to select andthen press again to exit the current line ¡ -Press it to move the “+” cursor up -Press to increment the value ¢ -Press to move the cursor “-“...
- Page 9 7. Assembly and Configuration • Connect all cables and connect the system power supply via the 12VDC jack connector. • Power up the host system and ensure the video signals and plugs are correctly connected. If either the picture display or display colors are not correct, adjust the video source variables using the OSD menu adjustments.
