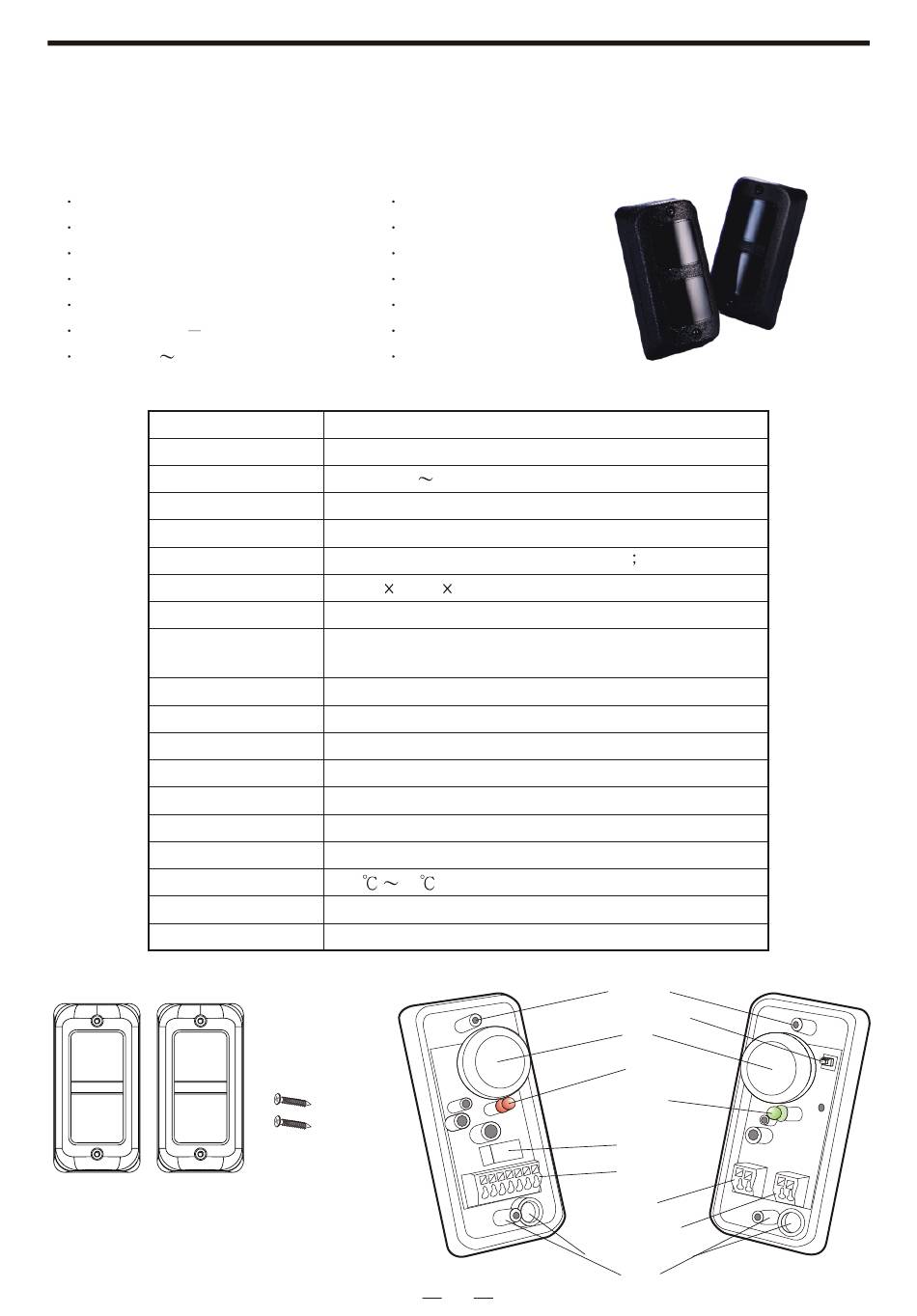

SCS IR-2000TS Installation Manual

INSTALLATION MANUAL

Through Beam Photoelectric Beam Sensor
IR-2000TS
Features:
Sensing Range: 20 meters
IP-66 Water Proof
N.C. / N.O. / Common Relay Output
Terminal Block Wiring Connection
Mounting Hardware Included
Tamper Switch Included
AC / DC 12 24 Input Voltage

Specifications:

Detection Method
Sensing Range
Input Voltage
Response Time
Emitting Element
Operation Indicator
Dimensions
Output Method
Current Consumption
Contact Current
Illumination
Connection Method
Noise Resistance
Surge Resistance
Vibration Resistance
Housing Material
Operating Temp.
Water Proof
Safety Standard
Included:
IR-2000TS
Application:
Gate or Garage Door
Overhead Doors
Conveyer
Door Entrance
Parking Lot
Alarm System
Warehouse
Through Beam
20 meters
AC / DC 12
100 ms
IR LED
Red LED(Rx): ON(when beam is broken) Green (Tx): ON
46(w) 95(h) 34(t) mm
Relay Output
Tx: 25mA / Rx: 25 mA (when beam alignment properly)
Tx: 25mA / Rx: 15 mA (when beam is broken)
1A / 120VAC
Lamplight < 10,000 Lux ; Sunlight < 30,000 Lux
Terminal Block
1500Vp-P / 1us
2KV / 1uS
10-55Hz / 1.5mm, 2 Hour In X.Y.Z. Phase
Casing: Nylon
-20 60
IP-66
CE
Part Account:
SCREWS
24V
Cover: PC resin
Power Terminal
Tamper Switch
Terminal Block
Wiring Connection
1
Screw Hole
Tamper Switch
Lens
Beam Alignmnet
Indicator
Power Led
Indicator
Relay
Terminal Block
Block
Hole
Screw Hole
