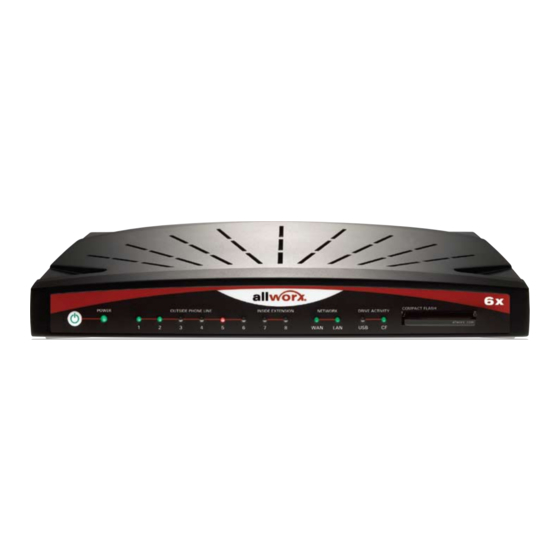

How to Configure the Allworx 6x, 24x and 48x for use with Integra Telecom
Overview: This document provides a reference for configuration of the Allworx 6x IP PBX to connect to Integra
Telecom SIP Trunks. The document covers a basic setup with required stepsfor interoperability with Integra
Telecom only.
Hardware and Software: The following hardware and software were employed to test interoperability between
the Allworx IP PBX and Integra.
Manufacturer
Allworx
MetaSwitch
Adtran
Tested Features: The folowing is a list of features that were tested.
Feature
Basic Call
Call Hold
Call Transfer
Call Forward
Remote Handset
Fax
Network Topology: Figure 1 shows how the network was configured for interoperability testing.
Page 1
SIP Solutions
Model
6x
MetaSphere
NV3305
Description
Making and receiving a call between
the IP-PBX and Integra Telecom
service provider with both G.711
and G.729 codec.
Placing a call in On Hold state and
retreival of a call from same station.
Relocation of an active call from one
station to another. Both internal
and external transfers were tested.
Forwarding of calls from one station
to another.
Operation of a SIP handset from
remote network
Fax Transmission
Software Version
7.2.5.1
7.2
17.09.02
Issue (if any)
None
None
Transfer with SIP REFER (RFC 3515)
not currently supported.
Call Redirect method not currently
supported.
None.
T.38 fax not supported on Allworx
6x. G.711 fax is supported.
Integra Telecom – Allworx 6X/24X/48X
2/25/2011
Advertisement
Related Manuals for Allworx 6x
Summary of Contents for Allworx 6x
- Page 1 How to Configure the Allworx 6x, 24x and 48x for use with Integra Telecom SIP Solutions Overview: This document provides a reference for configuration of the Allworx 6x IP PBX to connect to Integra Telecom SIP Trunks. The document covers a basic setup with required stepsfor interoperability with Integra Telecom only.
- Page 2 Figure 1: interoperability network diagram Configuration Notes: This section contains a detailed description of how the Allworx 6x was configured for interoperability testing with Integra Telecom services. Network Requirements: As in any VoIP deployment there must be adequate bandwidth to support VoIP traffic.
- Page 3 Integra implementation team. Populate the fields “SIP Server”, “Outbound Proxy” and “Registrar” as provided by the Integra implementation team and “Port” with 5060. Input the “Maximum Active Calls” as provided by the Integra implementation team. Page 3 Integra Telecom – Allworx 6X/24X/48X 2/25/2011...
- Page 4 4. In the Call Route section, ensure that “Routed using DID Block(s)” is selected and check the appropriate DID block(s) as previously defined in DID Block Setup. 5. In the Service Groups section click on “add new Service Group”. Page 4 Integra Telecom – Allworx 6X/24X/48X 2/25/2011...
- Page 5 Select Integra from the Service Group pull down. Repeat these steps for as many area codes that do not require dialing 1 for your local calling area, adding new rows as necessary. For all others select Integra from the Service Group pull down. Page 5 Integra Telecom – Allworx 6X/24X/48X 2/25/2011...
- Page 6 Page 6 Integra Telecom – Allworx 6X/24X/48X 2/25/2011...
