YUNEEC TYPHOON Wizard User Manual

INTRODUCTION
The TYPHOON Wizard is a mini GPS tracking device that gives you full one-handed flight
control over the TYPHOON aircraft. Features such as 'Follow Me' and 'Watch Me' ensure that
you are in frame in every shot. The 'point to fly' function allows you to point and click to
reposition your TYPHOON in a very intuitive way.
SPECIFICATIONS
Dimensions
Weight (with LiPo Battery)
Compatible Aircfraft
Compatible Camera
Water Resistant
Working Hours
Built-In LiPo Battery Voltage / Capacity 3.7V 500mAh
NOTICES AND WARNINGS
1. The Wizard CAN'T replace the Personal Ground Station/Remote Controller because it has no Wifi.
2. Do not submerge the Wizard in water no matter it is in/not in waterproof carrying
strap.The aircraft will lose signal.
3. Do not use Home Mode when you are in water areas.
4. Be sure to turn off the Wizard when you do not use it.
5. Be sure to operate the Wizard in open areas that are free from people, vehicles and other
obstructions. Never fly near or above crowds, airports or buildings.
GENERAL SAFETY PRECAUTIONS AND WARNINGS
· Failure to use this product in the intended manner as described in instruction manual can
result in damage to the product, property and/or cause serious injury. This product is not a
toy! If misused it can cause serious body harm and damage to property.
· As the user of this product you are solely and wholly responsible for operating it in a manner
that does not endanger yourself and others or result in damage to the product or the
property of others.
· Do not attempt to operate your equipment in areas with potential magnetic and/or radio
interference including areas nearby broadcast towers, power transmission stations, high
voltage power lines, etc.

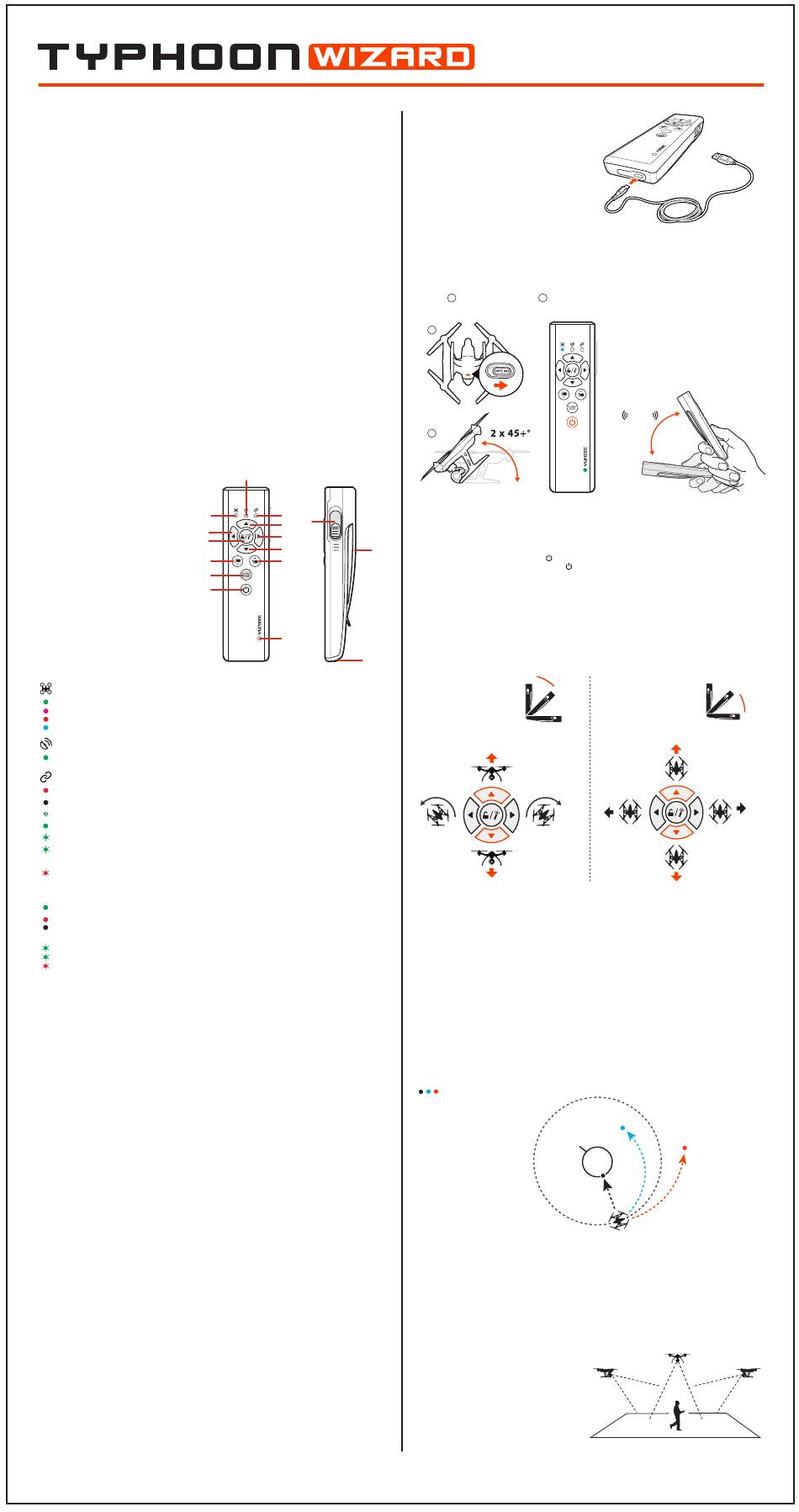

OVERVIEW
1. Aircraft Mode LED
2. Wizard GPS LED
3. Aircraft Status LED
4. Ascend / Forward Button
5. Turn / Fly to the Left Side Button
6. Turn / Fly to the Right Side Button
7. Descend / Backward Button
8. Magic Button
9. Pitch Control Button-down
10. Pitch Control Button-up
11. Start / Stop Motors Button
12. Wizard Power Button
13. Wizard Power LED
14. Smart / Angle / Home Mode Switch
15. Clip
16. USB Port
WIZARD LED STATUS:
Aircraft Mode LED
Smart Mode: LED solid green
Angle Mode: LED solid purple
Home Mode: LED solid red
'Point To Fly' Function Activated: LED solid blue
Wizard GPS LED
GPS Locked: LED solid green.
Aircraft Status LED
The Communication Mal-function Between the Wizard and the Aircraft : LED solid red
GPS Loss of Aircraft: LED off
Aircraft in No-Fly Zone: LED blinking red, green and blue alternately
Battery full：LED solid green
Battery 50%：LED blinking green twice every 2 seconds
Battery 25%：LED blinking green once every 2 seconds
Low Voltage Warning of the Aircraft:
LED blinking red quickly, the Wizard vibrating for 2 seconds once continuously
Wizard Power LED:
Powered On: LED solid green
During Charging: LED solid red
Charging Completed: Red LED off
Low Voltage Warning of the Wizard:
Low Battery--- LED blinking green twice every 2 seconds
Low Voltage--- LED blinking green once every 2 seconds
Power Cut-off---LED blinking red quickly, the Wizard vibrating for 2 seconds once
continuously.
BATTERY WARNINGS AND USAGE GUIDELINES
WARNING: Lithium Polymer (LiPo) batteries are significantly more volatile than alkaline,
NiCd or NiMH batteries. All instructions and warnings must be followed exactly to prevent
property damage and/or serious injury as the mishandling of LiPo batteries can result in fire.
By handling, charging or using the included LiPo battery you assume all risks associated with
LiPo batteries. If you do not agree with these conditions please return the complete product
in new, unused condition to the place of purchase immediately.
• You must always charge the LiPo battery in a safe, well-ventilated area away from
flammable materials.
• Never charge the LiPo battery unattended at any time. When charging the battery you
must always remain in constant observation to monitor the charging process and react
immediately to any potential problems that may occur.
• After flying/discharging the LiPo battery you must allow it to cool to ambient/room
temperature before recharging.
• To charge the LiPo battery you must use only the included charger or a suitably compatible
LiPo battery charger. Failure to do so may result in a fire causing property damage and/or
serious injury.
• If at any time the LiPo battery begins to balloon or swell, discontinue charging or
discharging immediately. Quickly and safely disconnect the battery, then place it in a safe,
open area away from flammable materials to observe it for at least 15 minutes. Continuing
to charge or discharge a battery that has begun to balloon or swell can result in a fire. A
battery that has ballooned or swollen even a small amount must be removed from service
completely.
• Do not over-discharge the LiPo battery. Discharging the battery too low can cause
damage to the battery resulting in reduced power, flight duration or failure of the battery
entirely. LiPo cells should not be discharged to below 3.0V each under load.
• Store the LiPo battery at room temperature and in a dry area for best results.
• When charging, transporting or temporarily storing the LiPo battery the temperature
range should be from approximately 40–120° F (5–49°C). Do not store the battery or
aircraft in a hot garage, car or direct sunlight. If stored in a hot garage or car the battery can
be damaged or even catch fire.
• Never leave batteries, chargers and power supplies unattended during use.
• Never attempt to charge low voltage, ballooned/swollen, damaged or wet batteries.
• Never allow children under 14 years of age to charge batteries.
• Never charge a battery if any of the wire leads have been damaged or shorted.
• Never attempt to disassemble the battery, charger or power supply.
• Never drop batteries, chargers or power supplies.
• Always inspect the battery, charger and power supply before charging.
• Always ensure correct polarity before connecting batteries, chargers and power supplies.
• Always disconnect the battery after charging.
• Always terminate all processes if the battery, charger or power supply malfunctions.
IMPORTANT NOTE: It's safer and better for the longevity of the battery to store it only
partially charged for any length of time. Storing the battery approximately 50%, charged
(which is around 3.85V per cell) is typically best, however, it will take some careful
management of the charge time and the use of a volt meter to achieve this voltage. If you
have the equipment and skills to achieve the 50% charge level for storage it is recommend-
ed. If not, simply be sure to not store the battery fully charged whenever possible. In fact, as
long as the battery will be stored at approximately room
temperature and for no more than a few weeks before the next use, it may be best to store
the battery in the discharged state after the last flight (as long as the battery was not
over-discharged on the last flight).
139 X 37 X 25 mm (5.47 X 1.46 X 0.98 in)
71.5 g ( 2.52 oz )
TYPHOON Q500 / Q500+ / Q500 4K / Black / G
CGO2GB / CGO2+ / CGO3
Yes
3.5 h
2
3
1
14
4
5
6
8
7
9 10
11
12
13
CHARGING THE BATTERIES
You can charge the LiPo battery installed
in the TYPHOON Wizard
computer using the USB. While the
TYPHOON Wizard is powered off,
connect the cable to a computer. The
Power LED will be solid red while the
battery is charging, and will be off when
the battery is fully charged. It will take
approximately 2 hours to charge a fully
discharged (not over-discharged ) battery,
and its working hours is 3.5 h.
WARNING: Do not take out the LiPo battery installed in the TYPHOON Wizard, otherwise
the TYPHOON Wizard may be damaged.
TYPHOON WIZARD AND RECEIVER BINDING:
NOTICE: If it is your first time to use the TYPHOON Wizard to control an aircraft, please
bind the TYPHOON Wizard to your aircraft.
Step 1) a Turn on the aircraft.
to 'level' twice to put the aircraft/receiver into binding mode.
a
b
NOTICE: The TYPHOON Wizard only needs to be bound to an aircraft for the first time. There
is no need to bind the Wizard to the same aircraft when you use it again.
POWERING ON/OFF:
15
Press and hold the Power Button . When all LEDs blink once and the TYPHOON Wizard
vibrates once, release the Power button
Mode LED is on, then the TYPHOON Wizard is powered on successfully.
NOTICE: Gyroscopes Mal-function: If the TYPHOON Wizard keeps vibrating when powering
on and fails to power on, please return it to the service center for maintenance.
FLIGHT CONTROLS
NOTICE: The safe distance between the TYPHOON Wizard and the aircraft is 12m.
The TYPHOON Wizard can be controlled in different positions. Direction Control Buttons
function differently according to the positions of the Wizard.
16
1) When the TYPHOON
Wizard is tilted upwards
between 50° and 90°, the
functions of the Direction
Control Buttons are as
followed:
Ascend
Turn Left
Descend
NOTICE: When the aircraft flies to the left or right side, the nose of aircraft doesn't change
its direction.
'POINT TO FLY' FUNCTION
Press and hold the Magic Button on the TYPHOON Wizard, and the aircraft can fly to any
direction the TYPHOON Wizard is pointed to in the sky.
To Enter 'Point To Fly' Function
Point the TYPHOON Wizard to a direction, press and hold the Magic Button. Release the
Magic Button when Aircraft Mode LED glows solid blue and TYPHOON Wizard vibrates
once. Then the aircraft will fly to the direction the TYPHOON Wizard points. The closer the
TYPHOON Wizard is tilted towards 0°, the further the aircraft will fly away from the pilot.
The closer the TYPHOON Wizard is tilted towards 90°, the closer the aircraft will fly to the
pilot. When the Wizard is tilted at 90°, the aircraft will fly close to you straightly and stop at
a safe distance.
NOTICE: The recommended flying height is 10-20 m. The operating distance range of the
TYPHOON Wizard is 10-50 m.
WIZARD Pointing Direction
To Exit 'Point To Fly' Function
When in the 'Point To Fly' Function, press any Direction Control Button to exit this
function. The aircraft will stop moving and automatically hold its position (with a suitable
GPS signal/lock) and maintain a level attitude then.
FLIGHT MODES
SMART MODE
When the Flight Mode Selection Switch is in the top position, the aircraft will be in the Smart
Mode. The Aircraft Mode LED will glow solid green.
1) Watch Me Function Under Smart Mode
Watch Me function enables the camera
to keep tracking the TYPHOON Wizard
no matter where and how it moves as the
camera can automatically tilt its angle
according to the controller.
Usually, the default function under the
Smart Mode is Watch Me.

USER MANUAL

from a
Lift its tail upwards approximately 45° then back down
b
Step 2) Press and hold the Power Button
till the Aircraft Mode LED glows solid
blue. Shake the TYPHOON Wizard up
and down till hearing two beeps from the
aircraft. Release the Power Button.
Shake
. The Power LED glows solid green, and the Aircraft
90°
2) When the TYPHOON
Wizard is tilted upwards
50°
between 0° and 40°, the
functions of the Direction
Control Buttons are as
0° followed:
Fly Forward
Fly to the
Turn Right Left Direction
Fly Backward
Smart Circle
90°
40°
0°
Fly to the
Right Direction
