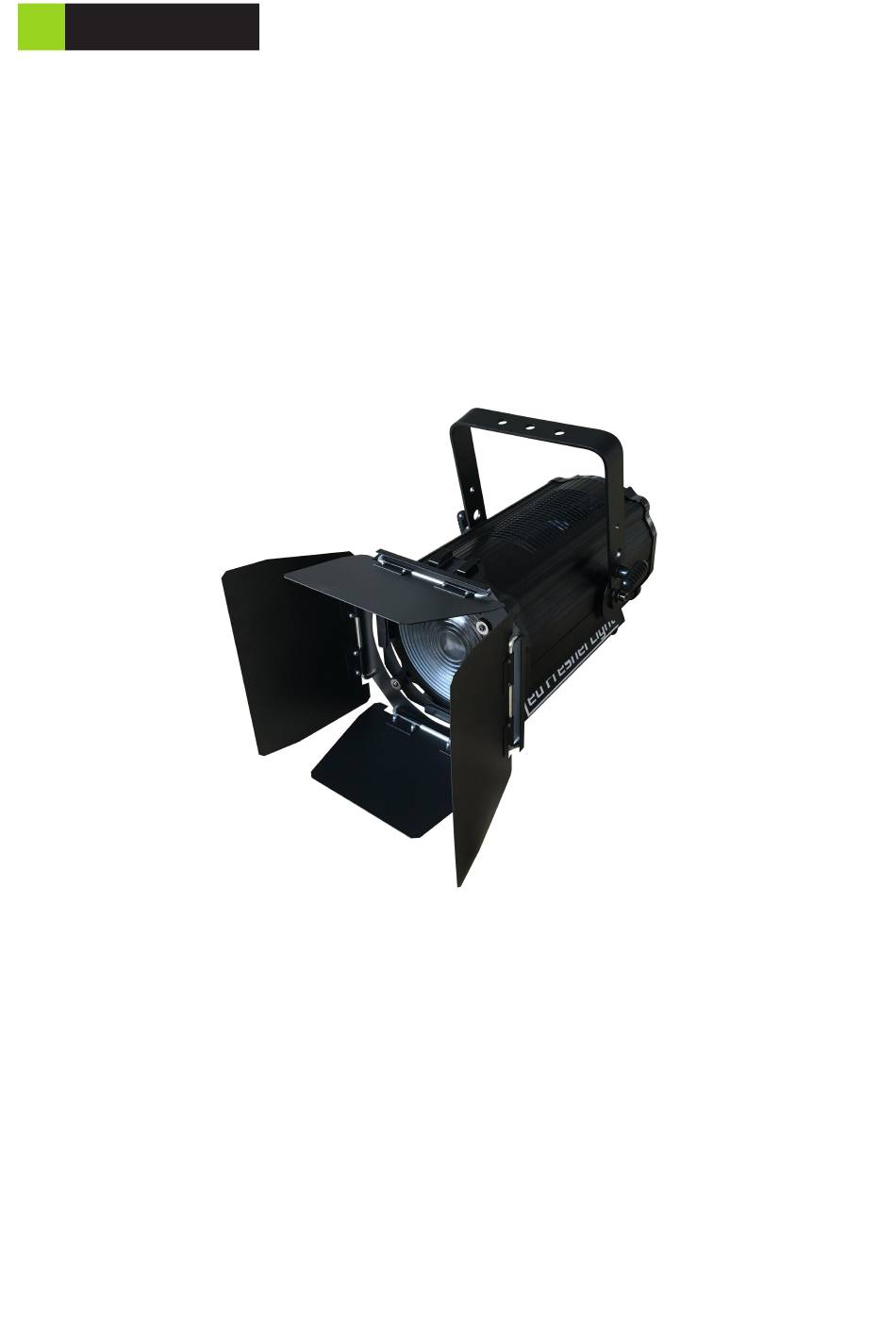

- Page 1 EXALITE EXL Fresnel Zoom CW 300W USER MANUAL CE RoHS...
- Page 2 OVERVIEW Thank you for using our product, this unit is designed for indoor using, it’s widely used for stage, building, disco, etc. as high power led effects lighting, this unit can be operated as a single unit or multiple units for large applications. Direct input of DMX512 signal to unit to allow it controlled by any DMX controller, powerful internal programs and friendly and convenient operation interface allows customers to program freely to any different lighting project requirements for installation or showing.
-
Page 3: Technical Parameter
Technical Parameter: • LED Power: 300W • Light Color: Cool White • IC Chip: Nichia • LED Lamp: Japan Citizen • LED Life Time: over 50,000 hours • Color Rendering Index(CRI): Ra≥90 • Voltage : AC90V-260V 50-60Hz • Max.power consumption : 160W/260W/390W •... -
Page 4: Product Introduction
1. Product Introduction 1.1. Product Feature 2 kinds of running model External control mode (Slave model) DMX 512 controller control(2 kinds channel modes) Master/salve model control (auto match the signal from controller and the Master light, no need to set by menu) static mode (Master model) ... -
Page 5: Operation
2. Operation 2.1. Menu Data Menu State Operative Mode DMX address DMX channel Mode Speed of Dimmer No DMX signal Main Menu Vice Menu Screen Savers Screen Rotation Language switching Speed of Dimmer Manual mode System information Reset Restore the default settings... - Page 6 Menu Vice Menu Display Keys Operation Standard DMX(5 CH) Channel Model UP/DOWN: Change the ID address Addr: 001 （5 CH） Basic channel DMX(2 CH) Model UP/DOWN: Change the ID address Addr: 001 （2 CH） Dimmer Static > UP/DOWN: Dimmer Dimm: 000 ENTER: Change the vice menu Strobe...
-
Page 7: Channel Data
3. Channel Data Standard channel model (5 CH) Channel Data Function Notes 0~255 Dimmer 0~10 Dimmer delay 11~15 No dimmer delay Dimmer delay time Data 16 is the shortest time for dimmer delay, data 255 16~255 Option is the longest time for it 0~10 No Strobe 11~255... - Page 8 4. Photographic Chart 4.1 Spectrogram...
- Page 9 4.2 CRI...
- Page 10 4.3 Lumen...
-
Page 11: Safety Warning
SAFETY WARNING 1. Warning ﹡ Every person involved with the installation , operation and maintenance of this device has to be qualified . ﹡ User must follow the instructions of this manual ﹡ Unqualified person can not open the housing cover and operate the device , or the dealer will not accept liability for any resulting defects or problems. - Page 12 APPENDIX Problem and solution Caution : ﹡ Unqualified person involved with installation , operation and maintenance of this device is prohibited . ﹡ If any above mentioned problem happened , or unknown problem happened , please contact manufacturer or distributor for assistance...
- Page 13 DISCLAIMER 1. The device is with one year warranty . The warranty period appear non-artificial quality problem, this company is responsible for free maintenance 2. User violate operation caused the machine failure, this is user responsibility. 3. If due to the wrong operation or intense impact caused product destroy even safety accidents, the manufacturer does not undertake any responsibility 4.
