Conncting Wire With Motor To Controller - PROAIM Curve-180 Instruction Manual

Proaim Curve-180 Curved Circular Camera Slider with motion control


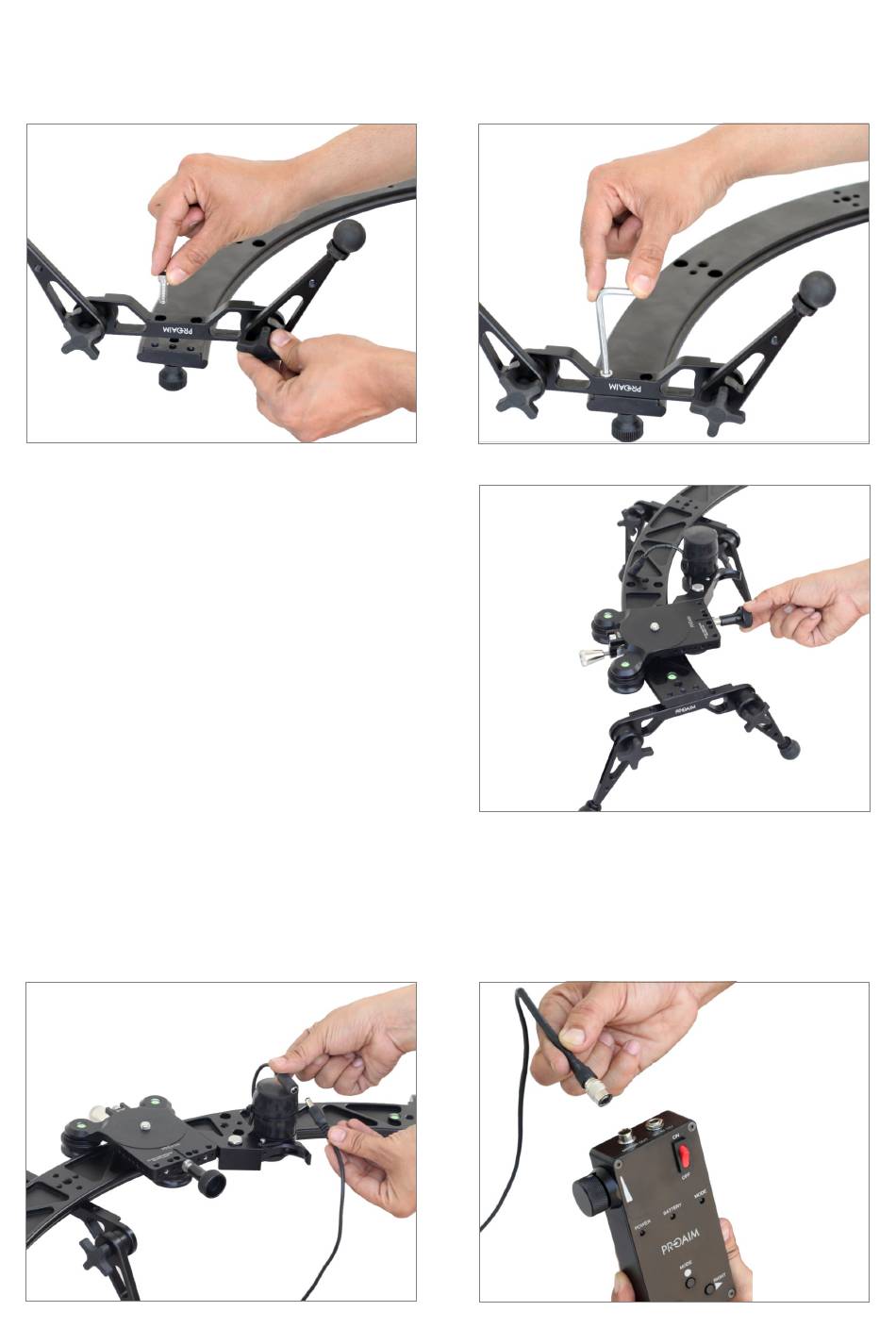

Place the slider rail on end foots and tighten the screw to secure it.

Mount the camera mounting plate
assembly on slider and tighten the knob
to secure it.

CONNCTING WIRE WITH MOTOR TO CONTROLLER


Attach Female connector of motor to the one end of 3 mtr wire of DC male connector.
Attach the other end of 3 mtr wire of (4 pin hero push pull connector) to the 4pin male
connector on controller.
