P E R M O X O M 1 2 0
O v a l M e m b r a n e Tu b e D i f f u s e r
w i t h s t a i n l e s s s t e e l b o d y
for fine bubble or coarse bubble diffusion of liquids
Supratec
AERATION TECHNOLOGY
®
G E S E L L S C H A F T F Ü R U M W E LT-
U N D V E R FA H R E N S T E C H N I K M B H
von-Drais-Straße 7
D-55469 Simmern / Hunsrück
tel.: +49 6761 / 9 65 09-00
fax: +49 6761 / 9 65 09-01
e-mail:
internet: www.oxyflex.de
Supratec
Gesellschaft für Umwelt-
und Verfahrenstechnik mbH
info@oxyflex.de
Advertisement
Table of Contents
Summary of Contents for Supratec PERMOX OM120
- Page 1 Supratec Gesellschaft für Umwelt- und Verfahrenstechnik mbH ® P E R M O X O M 1 2 0 O v a l M e m b r a n e Tu b e D i f f u s e r...

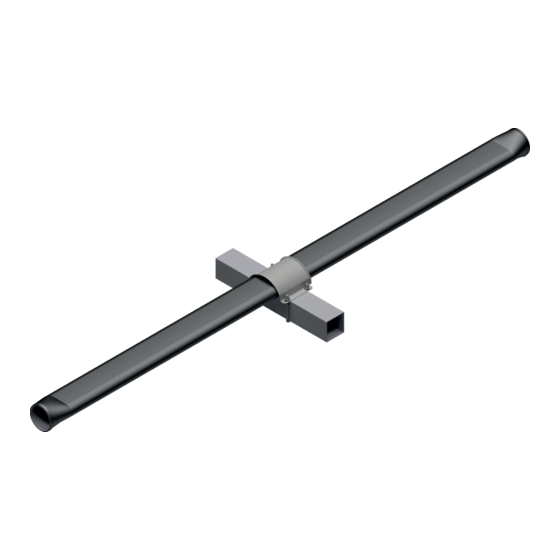

- Page 2 Oval membrane tube diffuser ® ® The PERMOX OM120 oval membrane tube diffuser is an improvement of old PERMOX OM with new width of 120 mm, instead of former width of only 90 mm. ® PERMOX OM120 oval membrane tube diffuser consists of a solid, strong stainless steel body (AISI 316).
- Page 3 Supratec will be pleased to prepare a technical data sheet for each individual application for you on request. AIR-PULSING: mixing without a mixer The option of the intermittent operating mode means that in a combined tank with alternating ®...
- Page 4 Installation ® The PERMOX OM120 oval membrane tube diffuser is suitable for installation on rectangular stainless steel pipes by using U-bolts (M8). U-bolts are available for rectangular pipe dimension 100 mm x 100 mm or 80 mm x 80 mm as standard (other sizes on request).
- Page 5 Preparation ® Before installation of the oval membrane tube diffusers PERMOX OM120, it has to be checked that the piping system is clean inside. Cuttings, sludge or other dirt have to be removed, as those will be transported into the diffusers as soon as blowers are set into operation and causing serious damage to the diffuser membranes.
- Page 6 Functional check and leak test ® After the oval membrane tube diffusers PERMOX OM120 have been installed, a function check and leak test must be performed. In order to do this, the tank has to be filled up to a level of approx.
- Page 7 Any deposits are removed by short-term load-dependent changes of the membrane extension. This also prevents any accumulation of biological growth. For PERMOX OM120 we recommend a daily and no less than weekly maintenance loading (see load table on last page) of approx. 15-30 minutes. Using intermittent operation, the first 10-15...
- Page 8 For this purpose, we offer a mobile acid dosing station. Please contact Supratec for further information. Load table...
