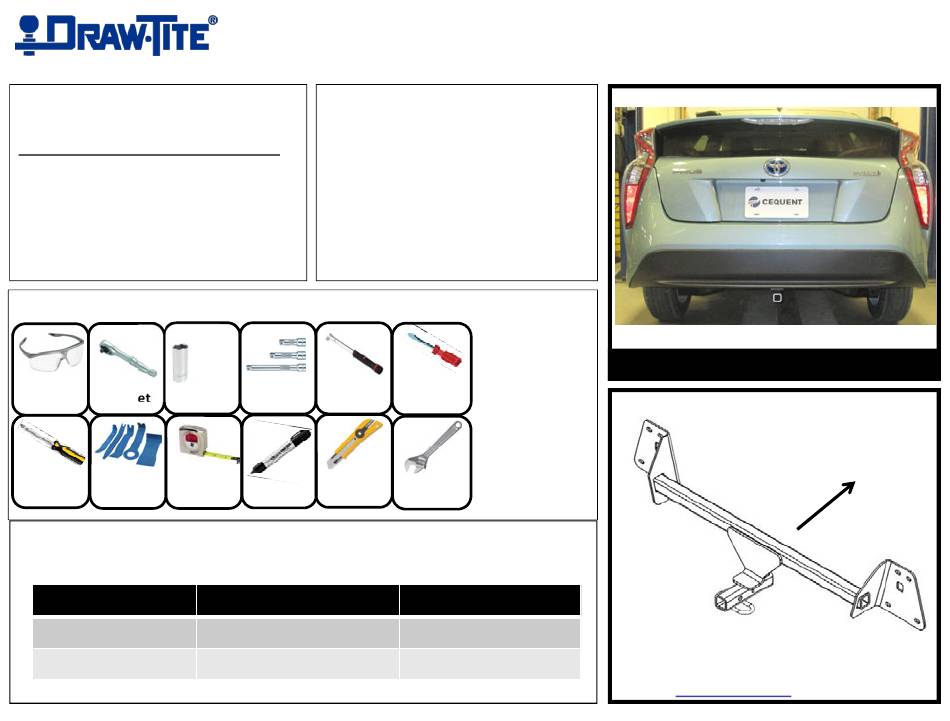

Draw tite 24944 Installation Instructions

Toyota prius 2016 -current

Advertisement

Quick Links

Applications:

Years
Make
2016 -Current* Toyota

Equipment Required:

12 mm
Safety
Sockets
Ratchet
Glasses
Phillips
Plastic
Tape
Screwdriver
Trim Tools
Measure
DO NOT EXCEED LOWER OF TOWING VEHICLE
MANUFACTURER'S RATING OR:
Hitch Type
Weight Carrying
Weight Distributing
PART NUMBERS: 24944, 77331, CQT24944

Installation Time:

Models
The time listed above is the average time
for professional installers. If you do not
Prius
feel comfortable performing this
installation on your own or are in need of
assistance, please contact a professional
installer.
Torque
3'' Socket
Wrench
Extension
Utility
Knife
Marker
Max Gross Trailer Weight
2000 lb. (908 kg)
X
45 min
Flat
Head Screw
Driver
Adjustable
Wrench
Max Tongue Weight
200 lb. (90.8 kg)
X
Representative Vehicle Photo
Front of
Vehicle
Trailer Hitch
Illustration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 24944 and is the answer not in the manual?

Questions and answers

Summary of Contents for Draw tite 24944

  • Page 1 Installation Instructions PART NUMBERS: 24944, 77331, CQT24944 Applications: Installation Time: 45 min Years Make Models The time listed above is the average time for professional installers. If you do not 2016 -Current* Toyota Prius feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
  • Page 2 (Sold separately) Installation Instructions Drawbar Kit: 3593 PART NUMBERS: 24944, 77331, CQT24944 Drawbar must be used in the RISE position only Bumper end panel Figure 2 Lower Fascia Figure 3 Figure 4 4-1/2” 2-7/8” Bumper beam Rear Figure 1 Existing...
  • Page 3 2a. Lower Fascia removal - using a Phillips head screw driver, 1. Remove (3) plastic underbody panels – using a flat head screw driver, remove (14) plastic push-type rivets and (3) threaded panel remove (2) screws located at bottom outer edge of lower fascia, (1) per side.
  • Page 4 4. Bumper beam modification – using an adjustable wrench, bend 3. Remove bumper beam – using a 12mm socket, remove (8) M8 bolts, (4) per side, attaching bumper beam to end panel. the tabs on back of bumper beam up approximately 15 degrees. 5.
  • Page 5 Reinstall lower fascia and wiring clips – reinstall the lower fascia 8. Continued: aligning tabs in lower fascia with upper fascia. Reinstall the (5) wiring Reinstall the (2) screws at outer edge of fascia. clips into fascia tabs above the bumper beam. 9.
