EXITGUARD EX104 Manual

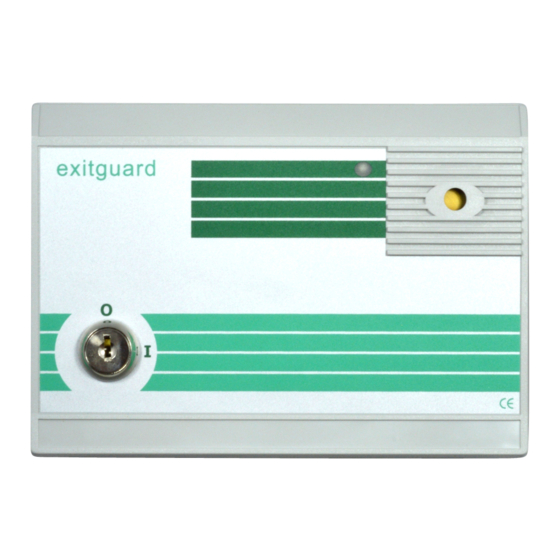

EXITGUARD EX104, EX105 & EX106
The EX100 series EXITGUARD provides a simple to operate solution for the 24 hour protection of fire exit and
other doors. A number of options are available that can be set up at the installation stage. The following
features are standard to all EX100 series EXITGUARDs:
Magnetic Door Contact.
Fit to door frame and
protect from moisture
8mm (max gap).
Magnet. Fit to door
& align with contact
6 x AA batteries
(Ex104 versions)
Do NOT power
from 12vdc.
This will result
in damage.
Bk Rd Yl Bl
Tamper
Volt free auxiliary relay
contacts.
Change on alarm condition
EX105 & Ex106 versions
Contact
Tamper
12 vdc Power In Ex105
or
12 vdc Power Out 150ma EX106
Move jumper to select
Lo
Hi
F
TONE
U
S
E Jumper links shown in
factory default positions
N E L
220/240vac
EX106 only
24 hour Door Alarm
Basic Chime repeating at 15 sec intervals [1]
4
Auto Reset adjustable 1 sec to 90 secs [2]
4
Keyswitch Reset [3]
4
Instant Alarm [4]
4
Reduced alarm after 2 minutes if not reset
4
Delay before alarm without pre-warn [5]
4
Delay before alarm with pre-warn [6]
4
Low level tamper for 2 mins then every 5 mins
4
Tamper omit.
4
Low battery warning on set & at 5 min intervals
4
Hi & Lo level alarm tones
4
LED status indicator
4
4 Double bleep for set, single bleep for un-set.
Pass through/ safe set facility.
4
Isolate alarm by turning Keyswitch to off position
4
Powered from 6 x AA batteries (supplied) EX104 or from a
12vdc intruder alarm supply Ex105
NC
Yellow
White
COM
Blue
NO
K1 K2 To1To2
COM
NC
NO
A1
Alarm
10s
Input
A2
T1
Tamper RESET 1s
Input
CONTROL
T2
-ve
+ve
low pitch tone
Move jumper to select 15s
alarm delay (DOTL)
On
Move jumper to select
On
door chime facility
Off
Off
DELAY
CHIME
Factory
Default
Start
Chime
or
Alarm
Alarm
Auto
or Key
Reset
EX105KM is fitted
with auxiliary volt
free terminals for
remote signalling
of Set/Unset
[3]
Key
16vac
from
transformer
90s
Delayed
or Instant
Alarm
Key Reset
ie 2mins +
Instant [4]
On
On
Off
Off
DELAY CHIME
Control with
Keyswitch
Options
Tone Select does
not affect any other
programming
Chime [1]
Basic CHIME facilty repeats at 15second intervals
Auto Reset time can be adjusted between 1 sec
and 90 secs. Beyond 90 secs it becomes Key Reset
10s
90s
Auto reset
[2]
1s
The exact position for maximum reset time
(90 secs) is approx. 2 o'clock. To determine
this position exactly ensure that the door
Turn pot fully
contact and the tamper loop are both open.
clockwise to
The keyswitch should be in the O (Off)
invoke Key Reset
position. Apply power and switch to the I
ie Factory default
(On) position within 3 seconds. The sounder
will give a bleep followed by four rapid bleeps
Turn the potentiometer slowly and observe
the following:
At Key Reset a Chime & no LED
At Max Reset a Barp & no Led
Below Max Reset Silence and steady LED
Warning
Delayed
at start of
delay
Yes No
On
On On
[6] [5]
Off
Off Off
DELAY CHIME DELAY
Set jumpers for desired operation
Note: There are no programming
options for tamper facilities.
www.hoyles.com
Lo
Hi
TONE
On On
On
[1]
Off Off
Off
CHIME DELAY CHIME
Dwg 60095 Iss 4 Sept 14
