Fusion RV-FS402 Manual

RV-FS402
K E Y FE ATURE S
IP65 ENVIRONMENTAL PROTECTION
When mounted correctly, the RV-FS402 speaker is rated IP65
for protection in the harsh RV and Marine environments from
the front and rear of the enclosure. Making it perfect for
installation on the outside of an RV or vessel.
QUICK AND SIMPLE INSTALLATION
The RV-FS402 is designed for easy installation, saving time and
money. As a stereo pair of speakers, both the left and right
speaker wires from the source unit or amplifier only need to
be routed to one location for connection, and only a single cut
out is required.
CUSTOMIZABLE GRILLE OPTIONS
The RV-FS402 comes in two color options - cloud white and
piano black. Customizing the grille to match the aesthetics of
your RV or vessel is simple with the removable grille.
Note: For OEM customized grilles contact your local Fusion
dealer (MOQ quantities apply)
STAINLESS HARDWARE
Stainless steel mounting hardware is included with the RV-
FS402. This limits corrosion and tea staining and keeps the
RV-FS402 looking great season after season.

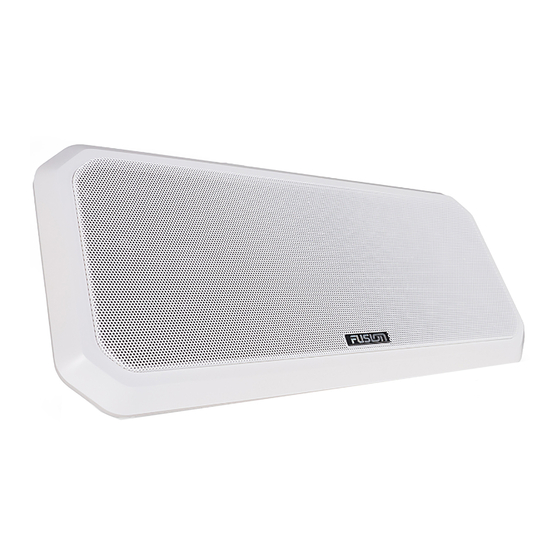

SOUND PANEL SHALLOW MOUNT SPEAKER SYSTEM
SHALLOW MOUNT 200 WATTS MAX SPEAKER SYSTEM WITH 4" SPEAKERS,
TWEETERS AND A PASSIVE RADIATOR
SHALLOW MOUNT DESIGN
With a mounting depth of only 41mm, the RV-FS402
addresses the age old issue of delivering professional
sound quality from a shallow mounting depth that is a
requirement in some installations.
PROFESSIONAL SOUND QUALITY
Professional sound quality from FUSION's shallow mount
speaker system has been achieved by combining a large
surface passive radiator, 2 x 4" speaker drivers and soft
dome tweeters all in a perfectly tuned enclosure.
TUNED PASSIVE RADIATOR ENCLOSURE
The RV-FS402 utilizes a sealed tuned passive radiator
design. This design ensures high quality acoustics in
any mounting location.
Where others need enclosures to be constructed,
the RV-FS402 is an all inclusive solution. The sealed
design protects all drivers and components from
being damaged if mounted in cupboards or cavities or
outside exposed to the elements.
FOR MORE INFORMATION VISIT
FUSIONENTERTAINMENT.COM
