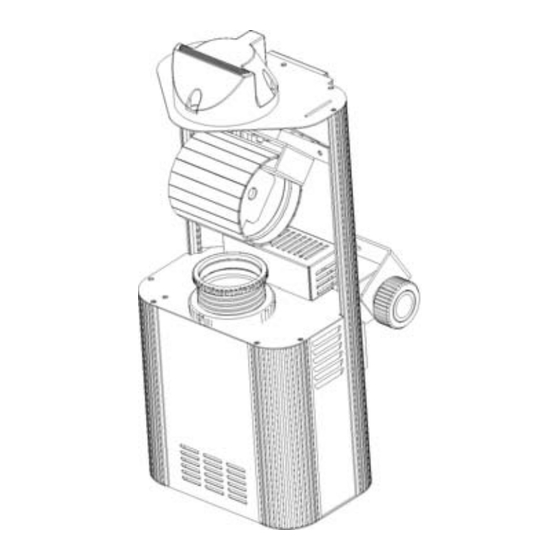

Summary of Contents for ACME MH-635B
-
Page 1: User Guide
Intelligent Scanner Professional Lighting Technology User Guide Please read the instructions carefully before use... - Page 2 INDEX A. GENERAL INSTRUCTIONS B. MAIN FEATURES C. LAMP D. HOW TO CONTROL THE UNIT ----- (1) By universal DMX controller ----- (2) Preprogrammed function ----- (3) By easy controller E. FIXTURE CLEANING...
-
Page 3: General Instructions
A. GENERAL INSTRUCTIONS Please read the enclosed instructions carefully as they include important points about safety for the installation, usage and maintenance of the unit. WARNING • Please keep this booklet with the unit for future consultation. If you sell the unit to another user, be sure that the new user also receives this instruction booklet thus giving them the necessary information about the use and general warnings regarding the unit. -
Page 4: Main Features
• Always switch off the mains supply and never handle the lamp or luminaire when it is hot. • Do not touch the bulb with bare hands. If this does happen, clean the lamp with denatured alcohol and wipe with a lint free cloth before installing. MH-635 MH-635B MH-635S... -
Page 5: How To Control The Unit
D. HOW TO CONTROL THE UNIT ( 1 ) By universal DMX controller The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. A DMX512 system requires a controller, lighting equipment and cable. These are connected together in a “daisy chain”... - Page 6 ( 2 ) Preprogram functions The unit can be linked together in daisy chain as many as you need in master/slave mode to perform the great built-in pre-programmed lighting shows triggered by music. In Master/Slave mode refer to the DMX settings below: Master unit: DMX start address MUST be set to 001.
- Page 7 • Start the address How to address your DMX512 system: 1. Select the channels of DMX controller 2. Dipswitches Value • Examples: Channel 01：dip / on : #1（=1） Channel 05：dip / on : #1, #3（1+4=5） Channel 09：dip / on : #1,#4（1+8=9） Channel 13：dip / on : #1,#3,#4（1+4+8=13）...
-
Page 8: Fixture Cleaning
E. FIXTURE CLEANING The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. Clean with a soft cloth using normal glass cleaning products. - Page 9 T6.3A T5A T6.3A T5A Lamps EFP 12V 100W ELC 24V 250W ELC 24V 250W Dimension 385x170x122mm 405x170x122mm 385x170x122mm Weight 3.8kg 4.5kg 4.5kg Широкий ассортимент оборудования ACME на www.maxlight.ru ================================================================ For further requirements, contact the nearest authorized technical assistance office ================================================================...
