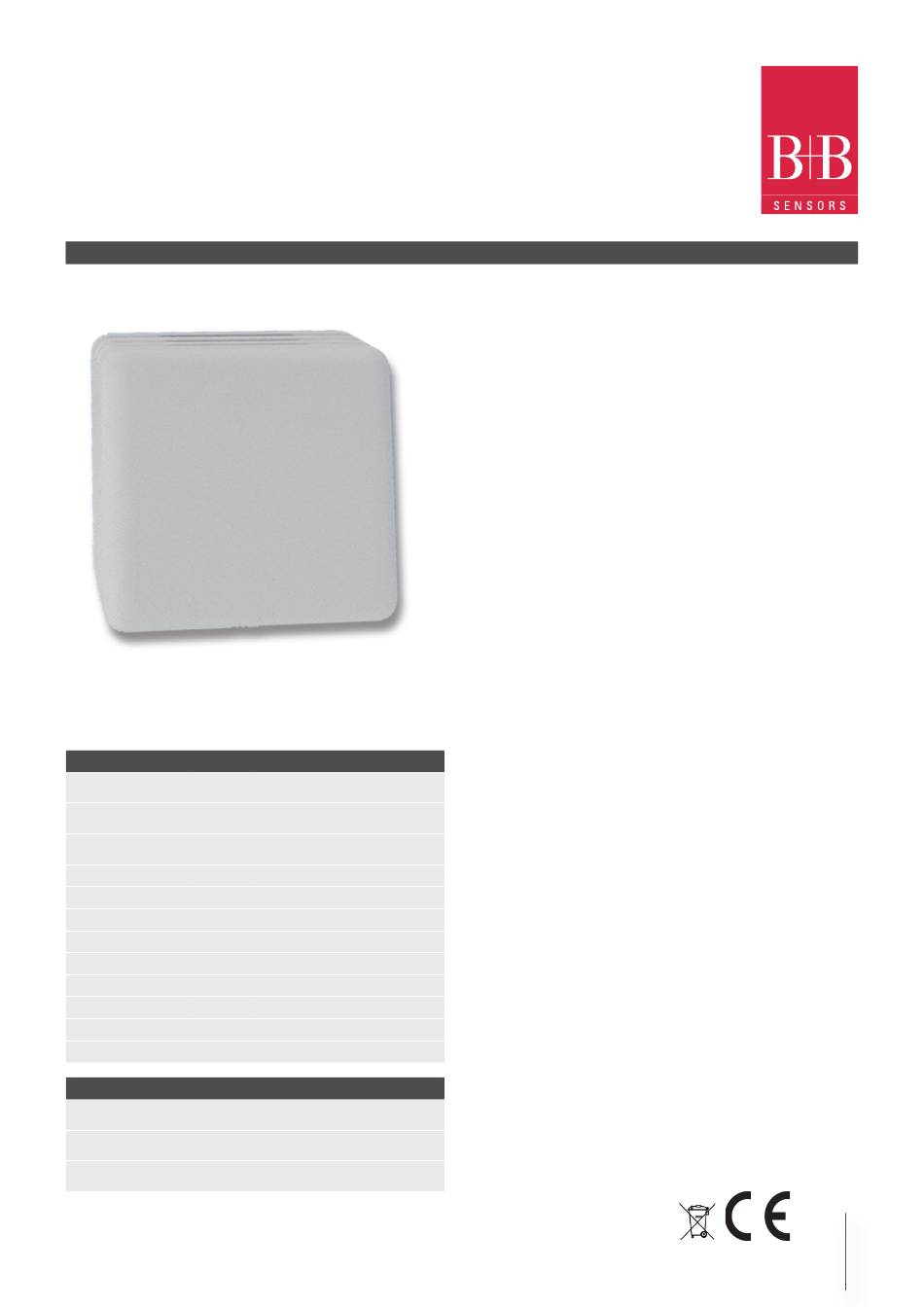

OPERATION MANUAL
HYTE humidity- and temperature-measurement system
wall mounting FF-GLT-10V-series

Description

Description Description

Technical data

FF-GLT-10V-series
Measuring range Humidity
temperature
Accuracy Humidityt-
temperature
Outputs Humidity
temperature
Response time Humidity
CE-conformance
EMV noise emission
EMV noise immunity
Housing material
Connection cable (-EXT)
Power supply
Overvoltage protection
Dimensions (LxWxH)
Article
HYTE humidity system 10 V
TYP TE0
HYTE humidity and temperature system 10 V
TYP TE1
HYTE Humidity 10 V and passive Pt1000 temperature system
TYP TEPT
Technical changes reserved
0141 0316-366 20.04.2016
0...100 % RH, non-condensing
-30...+70 °C
±3 % RH (30...90 % RH)
±0,7 ° K (0...+40 °C)
0...100 % RH according to 0...10 V
-30...+70 °C according to 0...10 V
approx. 25 sec.
2014/30/EU
EN 61000-6-3:2011
EN 61000-6-1:2007
ABS
Screw terminal 0,75 mm
2
12...24 V AC/DC
Varistor and RC-Filter
71x71x27 mm
Art.-No.
FF-GLT-10V-TE0
FF-GLT-10V-TE1
FF-GLT-10V-TEPT
B+B Thermo-Technik GmbH | Heinrich-Hertz-Straße 4 | D-78166 Donaueschingen
Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com

Characteristic features

• Inconspicuous wall mounted housing
• Standard signal 0...10 V
• Linearised and temperature compensated measurements
• High long-term stability, innovative technology
• Integrated sensors
• Optional with Pt1000 sensor available

Areas of application

• Indoor humidity and temperature measurement
• Building technology
• Industrial measurement and control technology
• Climatic record
• Home automation

Functional description

In addition to low pricing, the building automation branch sets high per-
formance requirements on measurement systems. Long term stability
by continuous use, protection against surges and transients, power
supply through DC and AC options and high accuracy level are some
of the needs of these applications. The temperature sensor is designed
specifically for these requirements, and with its latest sensor technology
and innovative design using an ASIC it is specially designed for use in
this area.
For the measurement of relative humidity, a precise and long-term sta-
ble polymer capacitive sensing element with industrial performance is
used. For measuring the temperature, a platinum sensor is used whose
values are also converted into a standard signal.
The power supply of 0...10 V version is available with DC or AC power
supply.
Due the large contact area and the designated terminals, a simple and
quick connection is ensured.
