Summary of Contents for BIGGER BOYZ TOYZ AUSTRALIA PTY.LTD BBT-LM-SPBS

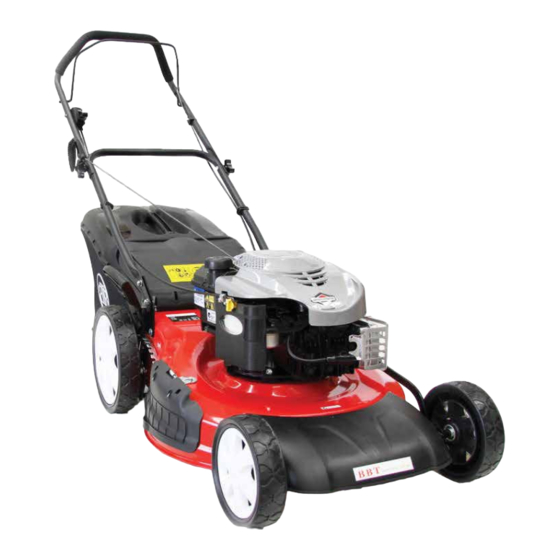

- Page 1 OWNER’S MANUAL Assembly & Operating Instructions BBT 21” SELF PROPELLED B&S LAWN MOWER MODEL NO. BBT-LM-SPBS...
-
Page 2: To The Owner
Please do NOT return the Lawn Mower without first contacting the Customer Support Department at bbt@bbta.com.au. If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of this Lawn Mower, please contact our Customer Support Department. SAVE THESE INSTRUCTIONS WWW.BBTA.COM.AU BBT-LM-SPBS... -
Page 3: Table Of Contents
OPERATIONS ............................10 Engine Starting ..............................10 Regulation of the Drive Cable (b) ........................10 MAINTENANCE CARE ...........................11 Maintenance and Storage ...........................11 Blade ..................................11 SPECIFICATIONS ............................12 WARRANTY & SERVICE ........................13 EXPLODED DIAGRAM & PARTS LIST....................14-15 YOU MAY ALSO LIKE ...........................16 BBT-LM-SPBS WWW.BBTA.COM.AU... -
Page 4: Important Safety Information
Equipment described within this manual may be optional. Some illustrations may not be applicable to your machine. WARNING! Your Responsibility—Restrict the use of this power machine to persons who have read, understood and will follow the warnings and instructions in this manual and on the machine. SAVE THESE INSTRUCTIONS! WWW.BBTA.COM.AU BBT-LM-SPBS... -
Page 5: Key To Symbols
Remove the spark plug before carrying out repairs. CAUTION! Tool surfaces can be hot. DO NOT use in the rain. Blades continue to rotate after the engine stops. Rotating blades are capable of amputating hands and feet and throwing objects. BBT-LM-SPBS WWW.BBTA.COM.AU... -
Page 6: General Safety Rules
Keep children, bystanders and domestic animals at a safe distance when the lawnmower is in use. • NEVER lift the mower while starting the engine. WARNING DO NOT operate your BBT Lawn Mower whilst under the influence of alcohol, drugs or medication. WWW.BBTA.COM.AU BBT-LM-SPBS... -
Page 7: Spark Plug Safety Rules
DO NOT start the engine if there is spilt petrol, wipe it off the engine and equipment, and move the mower to another area, wait 5 minutes before starting the engine. • Close tightly the fuel tank cap. BBT-LM-SPBS WWW.BBTA.COM.AU... -
Page 8: Parts Location
4. Throttle control 12. Nut knobs Not all of the accessories illustrated or described are 5. Engine 13. Height adjustment lever included as standard delivery. 6. Carter 14. Wheels Grass catcher 15. Side cover* 8. Propeller bar 16. Discharge open* WWW.BBTA.COM.AU BBT-LM-SPBS... -
Page 9: Assembling
Central height adjustment: • Set the desired height by pulling and turning the height adjustment lever (13). Side Discharge Option: Pull upwards the side cover (15), attach the discharge open (16) onto the deck and release the side cover (15). BBT-LM-SPBS WWW.BBTA.COM.AU... -
Page 10: Operations
Before you begin to mow, make sure the drive system will correctly disengage and that the mower will stop. If the drive system will not disengage, take the lawn mower to an authorized service centre before you operate it. • ATTENTION: Make sure that all cables are tense enough. WWW.BBTA.COM.AU BBT-LM-SPBS... -
Page 11: Maintenance Care
To sharpen the blade, place it in a vice and file the cutting edge evenly, checking its balance. • When reassembling the blade, make sure that the cutting edges face in the direction of the engine’s rotation. The blade screw must be torque to • 3.7Kg*m/s2(37Nm) with a dynamometric tool. BBT-LM-SPBS WWW.BBTA.COM.AU... -
Page 12: Specifications
SPECIFICATIONS Model BBT-LM-SPBS Rated power 3800 W Displacement 190 cc Rated speed 2750 RPM Max torque 8 Nm Cutting height range 20 - 55 mm Number of cutting height adjustments Cutting width 21 inches Cutting height adjustment Central height adjust... -
Page 13: Warranty & Service
Parts purchases, consumable components and accessories such as chains, carry bags, batteries, hoses, grinding discs, covers, belts, cable, wheels and blades are not covered by standard warranty. Spare Parts Spare parts are available. Please see our website (www.bbta.com.au) or contact us at bbt@bbta.com.au for more details. BBT-LM-SPBS WWW.BBTA.COM.AU... -
Page 14: Exploded Diagram & Parts List
EXPLODED DIAGRAM & PARTS LIST WWW.BBTA.COM.AU BBT-LM-SPBS... -
Page 15: Exploded Diagram & Parts List
Hexagon flange bolts SP-LM-SPBS-084 cover SP-LM-SPBS-040 bracket of front wheel axl SP-LM-SPBS-085 top cover of grass bag SP-LM-SPBS-041 draw spring SP-LM-SPBS-086 half plastic box(D) SP-LM-SPBS-042 front axle SP-LM-SPBS-087 collection bag frame SP-LM-SPBS-043 bracket of front wheel axl SP-LM-SPBS-044 seal board BBT-LM-SPBS WWW.BBTA.COM.AU... -
Page 16: You May Also Like
YOU MAY ALSO LIKE Chainsaws Cultivators / Tillers Log Splitters Mulcher COPYRIGHT © BIGGER BOYZ TOYZ AUSTRALIA PTY.LTD Unit 2/3 Delta Place Albion Park Rail NSW 2527 BBT-LM-SPBS-MNL1807...
