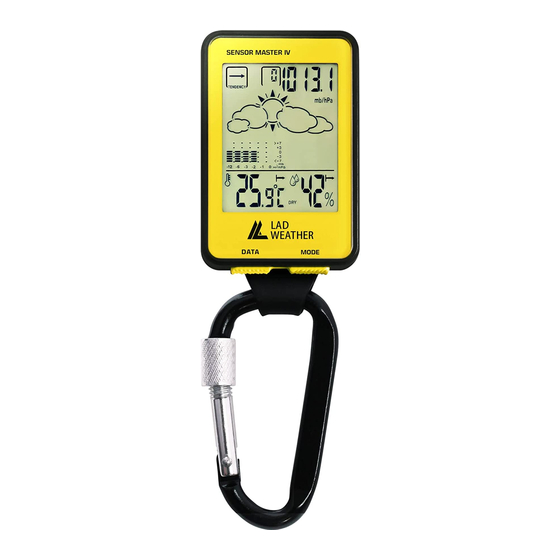

SENSOR MASTER IV
SENSOR THCHNOLOGY
ALTIMETER・BAROMETER
COMPASS・WEATHER FORECAST
HYGROMETER・THERMOMETER
BATTERY INSTALLATION
Remove the battery cover from the bottom of the computer using a
small coin.
Install the 3 V battery (CR2032) with the positive (+) pole facing the
battery cover and replace the cover as in Fig.1.
Warning: Battery may explode if mistreated.
Do not recharge, disassemble or dispose of in fire!
FEATURES
Altimeter
-Altitude range: 999 ~ 9999m / -2999 ~
19999 ft
-Resolution: 1m / ft
-Max / Min memory for altitude
-Altitude trend indicator
Barometer
- Pressure Range 800 hpa/ mbar to
1099.9 hPa/ mbar (23.63 inHg to 32.49
inHg)
-Resolution: 0.1 hPa/ mbar (0.01 inHg)
-Max/ Min memory for Pressure
-Pressure History and Graphic display of
the last 12 hours pressure readings
-Electronic Pressure Weather Forecast
(Sunny, Slightly Cloudy, Cloudy, Rainy)
-Pressure Trend Indicators
DISPLAY ICONS & KEYS ILLUSTRATION
Fig.1
Button B Button A
3
Electronic Compass
-3 mode display showing a compass
arrow direction numeric and cardinal
readout
-High accuracy of +/- 5 degree with +/- 1
resolution
-Magnetic distortion alert
Thermometer
-Thermometer (-10 °C to +60 °C)
-°C / °F selectable
-Max. / Min. memory for Thermometer
-Temperature Trend Indicators
Hygrometer
- Relative Humidity (20% ~ 99%)
-Max / Min memory for relative humidity
-Humidity Trend Indicators
Clock
-Time: Hr, Min
-12 / 24hr selectable
Barometer Unit
Maximum memory
-
- Barometer Graphic
Minimum memory
-
Display
- Battery Low
- Weather Forecast Window
- Pressure Trend Indicator
- Compass display
-
- History Display Window
- Function mode setting
- Temperature
- Maximum memory
- Humidity
-
- Minimum memory
-
- Temperature Trend
- Humidity Trend
Indicator
Indicator
- Time / Information
display
4
Advertisement
Table of Contents
Summary of Contents for Lad Weather SENSOR MASTER IV
-
Page 1: Battery Installation
-High accuracy of +/- 5 degree with +/- 1 -Max / Min memory for altitude resolution -Altitude trend indicator -Magnetic distortion alert SENSOR MASTER IV Barometer Thermometer - Pressure Range 800 hpa/ mbar to -Thermometer (-10 °C to +60 °C) 1099.9 hPa/ mbar (23.63 inHg to 32.49... -
Page 2: Weather Forecast
TO ENTER DIFFERENT MODE BAROMETER SETTING Barometer Unit (mb / hPa / inHg) Setting 1. Press button A to enter the Barometer Mode, press and WAKE UP YOUR COMPUTER hold button A until “mb hPa / inHg” flicker. Insert the battery in battery 2. - Page 3 BAROMETER MODE ALTIMETER MODE 1.Press button A to enter the Barometer Mode. -Setting measuring unit and current altitude : M/Ft 2. Press button B to enter the Memory mode. -In Altimeter mode hold button A until M/Ft starting to flicker. 3.
- Page 4 - In order to understand the declination effect, let us quote an example, the Enter Declination angle for the true North current direction is N 10 degree, if the declination angle is set to E 30 degree, - Declination refers to the measured difference between the magnetic the final will change to NE 40 degree or if the declination angle is set to W 30 North and the North of the map.
