Summary of Contents for AZTECH CONVERTING SYSTEMS ROLL RUNNER MH-400E

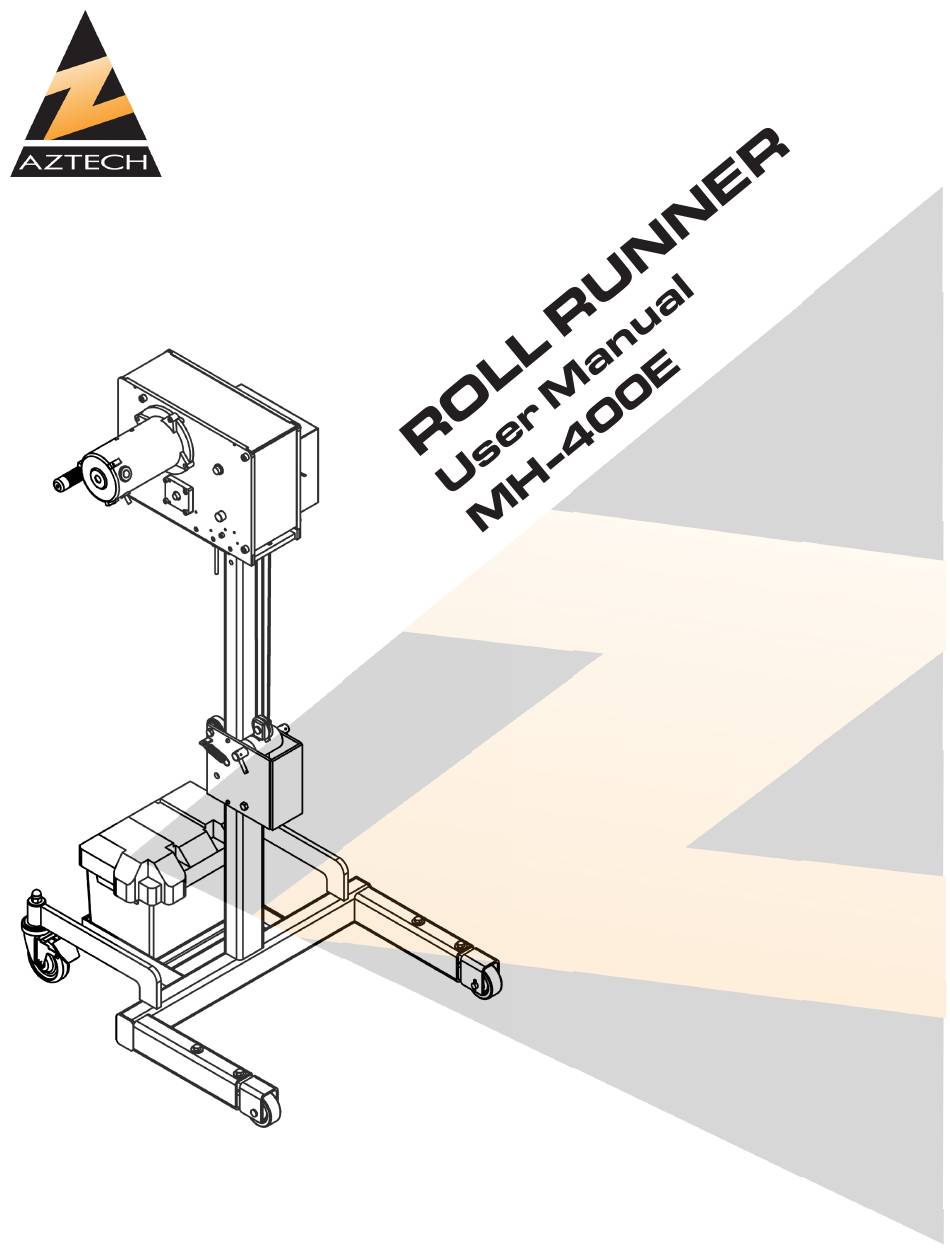

- Page 1 AZTECH CONVERTING SYSTEMS 212 W Lodge Drive TEMPE, AZ 85283 PHONE (480) 951-8351 FAX (480) 998-5409 www.aztechconverting.com...
-
Page 2: Table Of Contents
AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL TABLE OF CONTENTS SECTION 1: GENERAL INFORMATION SECTION 2: MACHINE SETUP SECTION 3: MACHINE OPERATION SECTION 4: MAINTENANCE AND REPAIRS SECTION 5: STATION DETAILS 11-12 SECTION 6: REPLACEMENT PARTS SECTION 7: WARRANTIES AND SERVICE... -
Page 3: Section 1: General Information
AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL Section 1: General Information 1-1: Introduction The AZTECH RollRunner Model 400E Roll Handling Cart is designed and manufactured to help re- duce workplace injuries by performing various material handling functions utilizing AZTECH’s inno- vative quick-change attachment system. The RollRunner with its all-steel construction and simplis- tic design will prove to be an invaluable product for your work environment and is sure to provide your company many years of safe, dependable service. - Page 4 AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL MH-400EA MAX LOAD: 400 LBS (181 kg) MAX Lift Height: 38.25 (97cm) Dimensions: 28.25 X 34 X 57.25 All dimensions are inches unless otherwise specified Fig. 1-2: THE MH-400A Rev 1.0...
- Page 5 AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL MH-400EB MAX LOAD: 400 LBS (181 kg) MAX Lift Height: 48 (122cm) Dimensions: 28.25 X 34 X 50.75 All dimensions are inches unless otherwise specified Fig. 1-3: THE MH-400B...
- Page 6 AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL MH-400EC MAX LOAD: 400 LBS (181 kg) MAX Lift Height: 62.00 (157cm) Dimensions: 28.25 X 39 X 73.35 All dimensions are inches unless otherwise specified Fig. 1-4: THE MH-400C Rev 1.0...
-
Page 7: Section 2: Machine Setup
AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL 1-3: Care and Maintenance The RollRunner is relatively maintenance free, generally only re- quiring periodic inspections. Over time, you may need to replace the lift cable, which is simply performed by removing the old ca- ble and inserting the new cable and crimping at the open end. -
Page 8: Section 3: Machine Operation
AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL Section 3: Machine Operation 3-1: Operating Lift RAISE To operate the motorized lift, raise switch to “UP” position to raise the load, and lower switch to “DOWN” position to lower the load (see Fig. 1-5). The... - Page 9 AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL 3-3 Changing Attachments The Rollrunner utilizes a EZ Change Attachment System which makes it capable of performing numerous tasks. To change attachments, simply lift attachment off the trolley and lower into place making certain that retainer tab slides into the Slot at the top of the trolley.
- Page 10 AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL SLIDE HANDLE FORWARD TO UNLOAD CORE EJECTOR CORE: Allows the operator to manually unload the roll without walking around the machine. BOOM ACESSORIES MAY BE ORDERED INDIVIDUALLY. Please contact your AZTECH sales representative for more information.
- Page 11 AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL LOCK & LOAD EJECTOR: Allows the operator to automat- ically unload the roll by operat- ing a crank. RETRACT EXTEND...
-
Page 12: Section 4: Maintenance And Repairs
AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL Section 4: Maintenance and Repairs 4-1 Periodic Inspections To keep your RollRunner operating properly, AZTECH recommends performing the following peri- odic inspection: • Inspect cable for frayed strands or wear. If any are found, replace the cable immediately. -
Page 13: Section 5: Station Details
AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL Section 5: Station Details Section 5-1: Trolley Assembly... - Page 14 AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL Section 5-2: Schematic DISCONNECT BATTERY BEFORE ATTEMPTING ANY SERVICE Rev 1.0...
-
Page 15: Section 6: Replacement Parts
AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL Section 6: Replacement Parts 6-1: Replacement Casters 6-2: Replacement Lift Cables MH-400EA - 17823 FRONT: CAS002-781 REAR w/BRAKE: CAS084-894 MH-400EB - 17824 MH-400EC - 17825... -
Page 16: Section 7: Warranties And Service
AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL Section 7: Warranties and Service parts or materials to Seller, who DAMAGE SUCH AS, BUT at its sole discretion shall deter- NOT LIMITED TO LOSS IN 7-1: Warranties & Provisions mine whether defective parts or...
