Effectrode PC-2A Owner's Manual

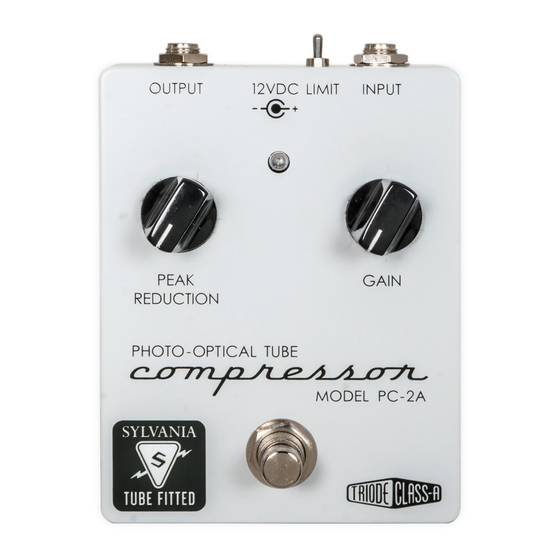

Photo-optical tube compressor

Download this manual

Enlarged version

S p e c i f i c a t i o n s

• Input impedance: Greater than 1MΩ

• Output impedance: Less than 1KΩ

• Controls: Peak Reduction and Gain

• Features: Limit/Compress switch

• All tube: Based on a Sylvania N.O.S. mil-spec

subminiature triode pencil tube operating in class-A

• Photo-optical: Ultra-linear , low distortion photo-

resistive attenuator

• True bypass: With 'anti-pop' or 'thump' foot-

switching circuitry

• Power requirements: 12VDC @ 600mA - Centre

positive 2.1mm barrel connector

• Dimensions: Width 4.75"; Depth 3.75"

• Weight: 12oz ( on Earth); 1.5oz (Callisto )

• Construction: Solid die-cast aluminum box

• Finish: Tough light-grey powder coat

PC-2A

Serial #

Thermionic

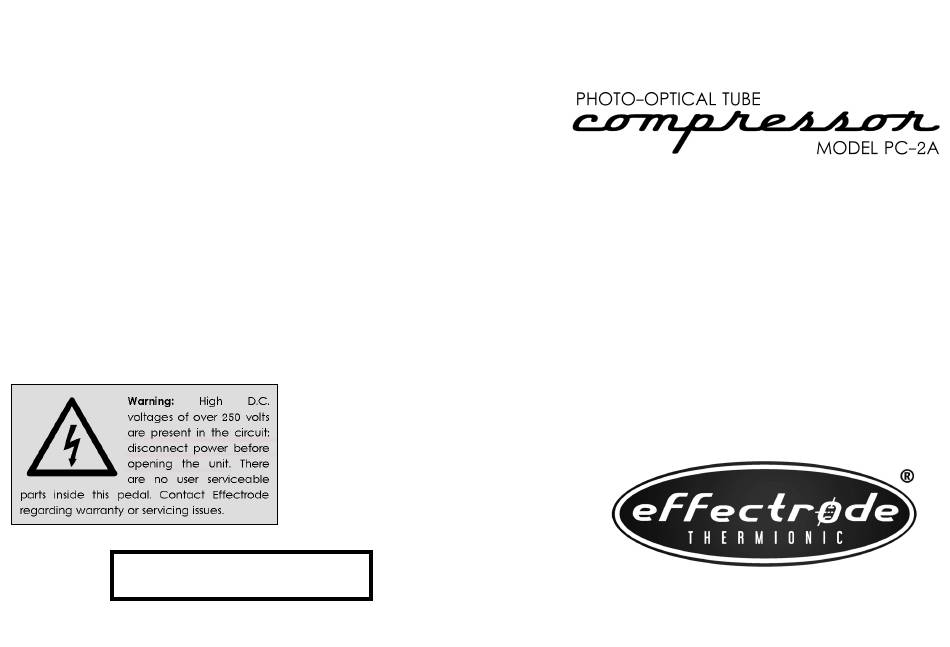

Owner's Manual

12 Br o ugh t on C re sc ent, B arla s t on,

St af fs , En glan d. S T12 9DB

ww w .e ff ect r od e. c om

Need help?

Do you have a question about the PC-2A and is the answer not in the manual?

Page 2 The PC-2A is designed for flexibility , simplicity and (20,000G!), high temperature outstanding sound quality . Audiophile grade high altitude.
Page 3 This knob should release time for short signal bursts and a slower be set so that the PC-2A exhibits the desired amount release when the signal remains continuously above of compression or sustain. A good starting point is at the compression threshold.
Page 4 Footswitch utilises quiet true bypass switching to The larger the input signal, the lower the gain, reduce ‘pops’ or ‘thump’ when engaging the pedal resulting in a reduction of dynamic range or and ensure there is no loss of guitar tone when the compression of the signal.
