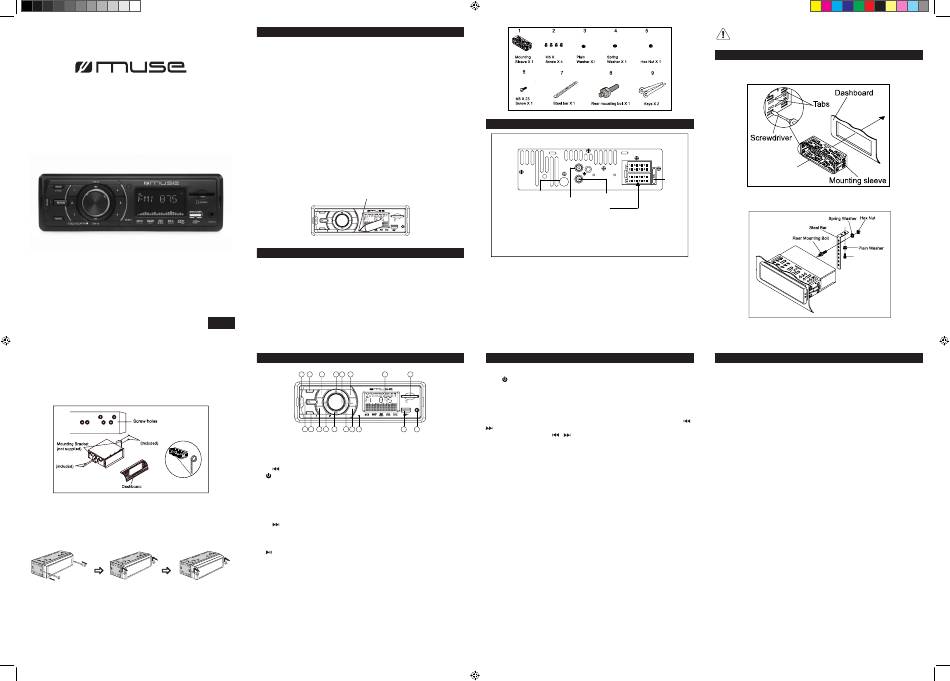

Muse M-090 MR User Manual

M-090 MR
User Manual
CAR RADIO WITH USB & SD
Please read the instruction carefully
before operating the unit.
2. Combine mounting blot, steel bar, spring washer and Hex nut. Then combine
the unit and dashboard with M5x 25 screw and plain washer.
- Method 2 DIN Rear-mount (For Japanese car)
1. Select a position where the screw holes of the mounting bracket supplied with
the car and the screw holes of the main unit become aligned (are fitted).
M5X5.5 Screw
M5X5.5 Screw
2. Tighten the screws. And then fasten them to the car.
Detach the Unit
Insert the keys supplied on the both sides of the unit (shown as illustrated)
until they click. Pulling the keys and makes them to remove the unit from the
dashboard.
GB - 4
AR-3453 IB MUSE 001 REV0 GB.indd1 1
PRECAUTIONS
1. Do not attempt to modify the unit, modifying the unit may cause an accident.
2. Installation or servicing of the unit by persons without training and experience
in electronic equipment and automotive accessories may be dangerous and
could expose you to the risk of electric shock or other hazards.
3. Stop the vehicle before carrying out any operation that could interfere with
your driving.
4. Keep the volume at a level which you could hear sounds from outside the
vehicle.
5. Do not work in extremely high or low temperature. Be sure the temperature
inside the vehicle is between +60°C and -10°C before turning on your unit.
6. When replacing the fuse(s), the replacement must be of the same amperage
as shown on the fuse holder.
7. Do not block vents or radiator panels. Blocking them will cause heat to build up
inside and may result in fire.
8. Using this unit without running the engine can result in battery drainage.
9. Use only in cars with a 12 volt negative ground.
10. After completing the installation or replacing the car battery you need to
RESET the unit before using it. Remove the front panel and press RESET button
on the base with pointed object (such as ball-point pen) to reset the unit to its
initial settings.
Reset
DIR-/8
B A ND
PTY/0 1 4
7 /R DM 2 5
3 6
A S/PS RESET
SEL/VOL/AF/TA DIR+/9
UNPACK YOUR UNIT
When you unpack your new car radio, make sure that you have removed all the
accessories and information papers:
Main unit
User manual
Accessories:
English
GB - 1
LOCATION OF CONTROLS
1 2 3 4 5 6 7
DIR-/8
B A ND
PTY/0 1 4
/R DM 2
7 5
3
6
A S/PS RESET
SEL/VOL/AF/TA DIR+/9
16 15 14 13 12 11 10 18
1. 7/MODE button
2. 0/BAND/PTY button
3. 1 numeric button
4. 8/ /DIR- button (Skip backward /Directory down)
5. /SEL/VOL/ AF/TA knob (Power/ Select setting/Volume)
6. 4 numeric button
7. LCD display
8. AUX IN jack
9. USB port
10. 6 numeric button
11. 5 numeric button
12. 9/ /DIR+ button (Skip forward /Directory up)
13. 2 numeric button
14. 3 numeric button
15. AS/PS button
16. /RDM button (Play/ Pause/Random)
17. SD/MMC card slot
18. RESET button
GB - 5
5.5
CONNECTION
WIRING DIAGRAM
RCA AUDIO OUT
ANTENNA
SOCKET
L (WHITE)
FIXED ISO FEMALE CONNECTOR
CONNECTOR A
1.
SD/MMC 2.
3.
4. +12V CONSTANT POWER SUPPLY
AUX IN
5. POWER ANTENNA / AMPLIFIER TURN ON
6.
7. +12V ACCESSORY/SWITCH
8. GROUND
Caution!
- Make sure to connect the color coded leads according to the diagram. Incorrect
connections may cause the unit to malfunction or damage the vehicle's electrical
system.
- Make sure to connect the speaker (-) leads to the speaker (-) terminal. Never
connect the left and right channel speaker cables each other or to the vehicle body.
- Make sure all the connections are completely correct before turning on your unit.
- Before wiring, disconnect the cable from the negative battery terminal.
BASIC OPERATIONS
Turn on/off the unit
17
Press button (5) to turn on the unit. Press and hold this button again to turn off
the unit.
To display and adjust the current time
SD/MMC
In standby mode, the current time will be displayed automatically.
Turn on the unit, press and hold MODE button (1) until clock time appears. Long
AUX IN
press MODE button (1) again ,the hour digits will flash, set the HR. hour with
button (4/12).Then shortly press MODE button (1), the minute digits will flash,
9 8
set the MIN. minutes with / button (4/12).
Note: It will return to normal display mode if no key is pressed within 5 seconds.
Mode selection
Repeatedly press MODE (1) button to select different sourcing mode: Radio→
USB →SD/MMC →AUX.
Reset the unit
Operating the unit for the first time or after replacing the car battery, you must
reset the unit. To set the unit to initial status, press RESET button (18) with a
pointed object. When some errors occur in display, you can also reset the unit,
but it will erase the clock setting and some memorized functions.
Do not connect the ignition wire (red) and the battery wire (yellow), it may
cause a short circuit, even result in fire.
INSTALL AND REMOVE THE UNIT
Install the unit
- Method 1: DIN Front - Mount
FUSE
HOLDER
1. Insert the mounting sleeve to the car. Bend the claws outward for a tight fit, if
R (RED)
necessary.
CONNECTOR B
1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)
GB - 2
SOUND FEATURES
Volume:
To increase or decrease the sound level, rotate SEL/VOL knob (5) clockwise or
counter-clockwise.
Sound Settings
Repeatedly press SEL/ VOL knob (5) to select the desired mode in the following
order: "BAS" (Bass) -> "TRE" (Treble) -> "BAL" (Balance) -> "FAD" (Fader) ->"
LOUD"(LOUD ON/OFF) -> "LOC"(LOC ON/OFF) -> "AF" (Alternative frequency)
/
-> "TA" (Traffic announcement) -> "REG" (REG ON/OFF) ->"EON" (EON ON/
OFF) -> "VOL" (Volume). After selecting the desired mode, you can adjust the
current level by rotating SEL/ VOL knob (5).
Note:
- The unit will return to the previous mode if no adjusting happens within 5
seconds.
- Refer to radio section for LOC, AF, TA ,REG and EON.
Switching Loudness On/off
Repeatedly press SEL/VOL knob (5) until "LOUD" shows on display, rotate
SEL/VOL knob (5) to select "LOUD ON" mode to activate LOUDNESS function.
By this function, you can increase the low frequency, which can improve sound
sensitivity. Repeatedly press this button again ,then rotate SEL/VOL knob (5) to
select "LOUD OFF" mode to cancel LOUDNESS function.
GB - 6
M5 x 25 Screw
GB - 3
GB - 7
