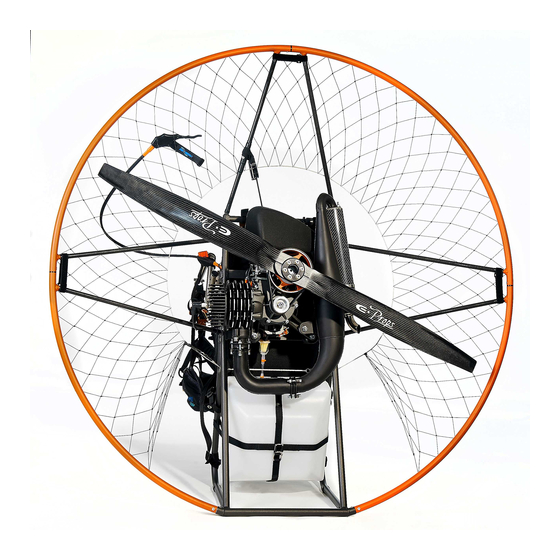

Paramotor

OCTAGON

edition: V-10.15

This manual is intended to be for information purposes only. The manual's content is

based on the best knowledge available at the time of publication. We put every effort

to correct the mistakes we encountered but we cannot guarantee that all errors have

been found. This is why errors found in this manual cannot be treated as the basis for

any legal claims. Information included in the present publication are the property of

Techno-Fly group.

Copying, distributing, and content sharing of the whole text or its parts with third

party is not permitted without Techno-Fly group's written consent. We retain the

right to make changes without notifying the users. Due to the fact that we make

constant changes in order to improve our products some parts of the manual may not

correspond to the version or the equipment of the purchased product. If this is the

case, please contact Techno-Fly.

Content

2016-06-22

190

User's Manual

Table of Contents

Need help?

Do you have a question about the OCTAGON 190 and is the answer not in the manual?

Questions and answers

Summary of Contents for Techno-fly OCTAGON 190

Page 1 Copying, distributing, and content sharing of the whole text or its parts with third party is not permitted without Techno-Fly group’s written consent. We retain the right to make changes without notifying the users. Due to the fact that we make constant changes in order to improve our products some parts of the manual may not correspond to the version or the equipment of the purchased product.
Page 2 Paramotor............................1 1. Introduction. We congratulate you on choosing the paramotor with Octagon 190 engine! We know that you are a person who treats adventure, passion and the beauty of flying as an important part of life. We are happy that you decided to pursue your passion with our equipment. We are proud that more and more pilots choose our paramotors in order to realize their adventures.
Page 3 Indicates maintenance activities.  Indicates check-up activities. 2. Preparing paramotor for exploitation. 2.1 Package content. The complete package of Octagon 190 paramotor in standard version includes the following items: 1. Frame with engine and harness 1 pc. 2. Propeller cage 1 cpl.
Page 4 2.2 Assembling paramotor for the first time. 2.2.1 Mounting of the propeller. The Octagon 190 paramotor’s propeller is mounted with six M6 screws according to DIN912, 8.8 class with ripp-lock washers. The set of propeller mounting screws with the aluminium washer (propeller thrust) can be found in the side pocket of the harness.
Page 5 If you choose a particular oil grade try not to change it. If it is necessary, try to change it as rarely as possible. The Octagon 190 engine is not designed to work with mineral oils! Warning: Fuel mixed up with oil loses its properties with time.
Page 6  This table shows how to prepare the proper ratio of the mixture: During the run-in 1:33 Regular use 1:40 Petrol [litres] Oil [ml] Petrol [litres] Oil [ml]  The majority of contaminations that get inside the fuel tank come from a contaminated funnel.
Page 7 Every time you want to start up the engine you must secure the gas throttle in such a way that it will not be possible to turn it on by accident. You should also check whether the starter rope is not tangled or jammed, and the carburetor throttle is not left ajar. In case you need to turn the engine off immediately, the gas throttle should be placed in such a way that it is possible to reach quickly and easily for the ignition switch.
Page 8 Warning : All engine trials performed when the propeller is spinning must be undertaken with utmost caution. You mustn’t hold the propeller’s cage! If you do this the engine’s thrust might bend the cage towards the spinning propeller. Always make sure whether the propeller’s cage is properly mounted on the frame and whether it is protected.
Page 9 If in doubt, you should contact the service. 5.3 The run-in of the engine in the first hours of its exploitation. Warning : The Octagon 190 engine is equipped with WG-37 carburetor. This carburetor is extremely sensitive to the changes in the location of the screw regulating high Speed –...
Page 10 The run-in during the flight is divided into two stages: First stage involves making first take-offs and first flights maintaining the lowest possible speed. Maximum speed must not be reached unless it is absolutely necessary and it should take as short as possible. High altitudes are not advisable, but if necessary they should be reached in steps, making pauses while ascending in order to cool the engine.
Page 11 The run-in time for the “OCTAGON 190” engine is about 15-20 hours of flight. ...
Page 12 When the engine is hot, the temperature of some exhaust system parts may exceed C. Touching the engine, even by accident, may cause serious burns. The Paramotor with the OCTAGON 190 engine is to be used with 125cm or 130cm propellers.
Page 13 When the paramotor is running with a damaged, unevenly balanced or not correctly routed propeller, the gear unit components and rubber parts wear off very quickly. The gear unit damages due to the use of inadequate, damaged, unevenly balanced and incorrectly routed propeller are not covered by the warranty.
Page 14 Never perform maximum thrust test with the paramotor standing on the ground. If you want to do this put the paramotor with the turned off engine on your back and then turn the engine on. One of the most dangerous and unpredictable events during the flight is tearing off the parts of the exhaust system.
Page 15 Default mixture composition screws settings in Octagon 190 engine are: The L screw unscrewed for 50’ – 1,00’ of the clock face - 1 turn from closed position, The H screw unscrewed for 1, 00’ – 1, 10’ of clock face from closed position.
Page 16 Check the engine starter. • Pay special attention to all leakages, scratches and atypical stains. In case of any doubts, contact a Techno-Fly representative. • Check the frame and the propeller cage. Check the construction’s geometry. Inspect thoroughly harness settings, condition of tapes, carbines and braking system.
Page 17 4. Check the spark plug – condition of electrodes and spark plug hue. Torque 26Nm. 5. Check the engine regulation.  Carburetor WB-37 has the opening (diameter circa 8 mm) closed up with the net, which is located under the back lid and rubber petal. This is the additional fuel filter. On the filter, especially in the first period of exploitation there could be some technological contamination of the fuel system as well as gel deposits caused by poor fuel quality.
Page 18 1. Replace the membrane valve petals Technical specifications of the paramator with the engine Octagon 190 Paramotor : Octagon 190 Engine type Two-stroke Power 27 KM / 7800 rpm Capacity 190cm3 Compression ratio 10:1 Cooling With air Cylinder Aluminium with Nicasil layer...
Page 19 All manual starters used in Techno-Fly engines have to be checked up every 50 hours. This could be done only by a specially trained person. Taking into consideration the reliability and security we strongly discourage you from making any changes in the paramotor on your own.
Page 20 Attention! : All extra processing and repairs of the paramotor, without prior agreement of the producer result in the immediate loss of warranty!!! 10. Service book. Date Description Service operations Comments Signature 0 - h Service review 25 - h Service review 50 - h Service review...
Page 21 Date Description Service operations Comments Signature Date Description Other service Comments Signature operations 2016-06-22...
Page 22 Date Description Service operations Comments Signature 2016-06-22...
