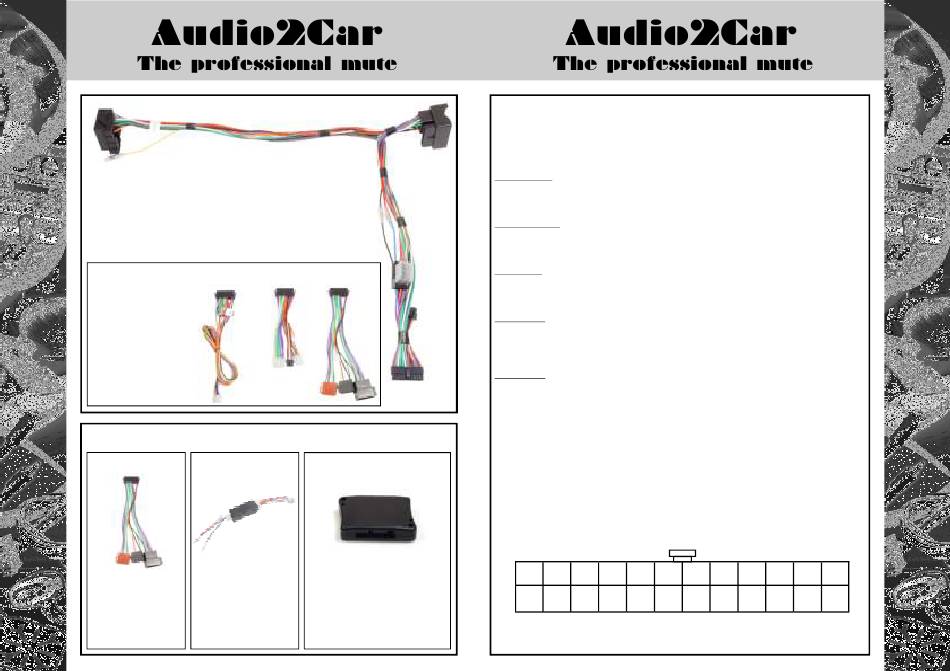

KRAM telecom Audio2Car Installation Instructions

Audio2Car harness
For a complete installation normally a minimum of two item numbers are re-
quired.
Audio equipment with build in mute function:
If the Audio equipment is equipped with a build in mute function two item numbers
are required. The 1st item number is the Audio2Car harness. The 2nd item is a
Audio2Car carkit adaptor.
Audio equipment without build in mute function:
If the Audio equipment is not equipped with speaker relays, a Mute-box from Kram
Drive & Talk range can be added together with a Drive & Talk carkit adaptor.
Audio2Car Carkit Adaptors
Several different carkit adaptors
are available for Carkits that
have a build in mute function
for 1 or 4 Speakers.
Please see the complete range
of Audio2Car carkit adaptors
at our website:
www.kram.dk
Examples of
carkit adaptors
Audio2Car Accessories examples
ISO adaptor IGNIBOX adaptor
This ISO adaptor AA010 is a This IGNIBOX ITEM no. "I"
universal adaptor for all creates an artificial ignition
carkits with ISO connectors. source. Use this adaptor if
Adding this adaptor turns your Audio2Car cable does
your Audio2Car cable into a not include an ignition source.
Kram ISO2CAR solution. This adaptor is plug and play
with your Audio2Car cable.
Drive & talk Mute-box
range
Several different types of mute-boxes are
available. Adding one of the boxes will
turn your Audio2Car cable into a Kram
Drive & Talk solution. Therefore you will
also need a Drive & Talk carkit adaptor.
Please see the Complete Drive & Talk
range at our website:
www.kram.dk

Product Description

The Audio2Car range allows OEM car speakers to be used for aftermarket Audio equipment.
Audio2Car allow the car speakers to be used for audio playback from aftermarket Audio equipment. For a com-
plete installation two or more item numbers are required. See description at the last page.
Speaker-function: This is achieved by connecting Audio equipment with build-in speaker relay function or by
using a Mute-box from the Kram range. This way the radio sound is muted and the sound from the aftermarket
Audio equipment is sent through the car speakers. You will achieve a perfect sound without interference from
the car radio.
Mute wire function: The mute-wire is connected from the 24 pin connector to the most used mute position for
the car model. This enables the use of the radios built in mute function. If the radio does not have such function
or the mute exists in a different connector than the ones used on the Audio2Car harness, the mute wire can be
found in a yellow fly-wire fitted with a bullet connector.
Power supply: All Audio2Car cables have an integrated power supply for the Audio equipment in the 24 pin
connector. The constant 12v and the ground supply are normally sourced from the radio supply. This way power
supply of most Audio Equipment can be achieved without cutting the cars wiring loom. The constant 12V wires
are red and the ground wires are black.
Ignition supply: If an ignition source is available in the radio connector then it will normally also be available in
the 24 pin connector. If an ignition source is not available a constant 12V source is connected to the Ignition pin
via bullet connectors. If a real ignition is required for the chosen Audio Equipment, an IGNIBOX item no. "I" can
be connected to create an artificial ignition. Or an ignition source found elsewhere can be connected to the
bullet with the blue wire. The 12V ignition wires in the Audio2Car cable are blue.
Aux integration
The 4 pin connector on the Audio2Car harness allow a Kram Aux solution to be connected. This will allow the
use of the car sound system amplifier for Music playback and thereby achieving higher sound quality.

Technical Specifications

Description: L-shaped with bullet connections for Ground, Constant 12v and Ignition.
Normal Wire dimensions : AWG 18 for power wires, AWG 20 for all other wires
Standard Fuse sizes: 2 Amp for constant supply, 1 Amp for Ignition supply
Maximum Fuse size: 7,5 Amp for constant supply, 7,5 Amp for Ignition supply
Maximum output pr. speaker: 100 Watt RMS / 200 Watt music power @ 4 Ohm
Size: 400 x 400 mm
Configuration chart for 24 pin connector:
12V 12V Line Line Radio Radio
Const. IGN Out L- Out R- RR+ RF+
GND Mute Line Line Radio Radio
Out L+ Out R+ RR- RF-
Connector seen from cable entry side
EN160-V01
Radio Radio Spk Spk Spk Spk
LF+ LR+ LR+ LF+ RF+ RR+
Radio Radio Spk Spk Spk Spk
LF- LR- LR- LF- RF- RR-
