4000 Series
Installer's Guide
Models 4100 and 4500
GRAFIK
Eye
Control Units, in conjunction with
a Lighting Control Panel, control
the brightness of two, three, four,
six, eight, sixteen, or twenty-four
zones of lighting. GRAFIK Eye
Control Units control the intensity
of all the light sources in a
room. You can adjust the lights for
a special event or activity with
the press of a button!
4000
Series
LUTRON
LIGHTING CONTROL
Advertisement
Table of Contents
Summary of Contents for Grafik Eye 4100
- Page 1 4000 Series Installer’s Guide Models 4100 and 4500 PLEASE LEAVE FOR OCCUPANT LUTRON GRAFIK 4000 Series Control Units, in conjunction with a Lighting Control Panel, control the brightness of two, three, four, six, eight, sixteen, or twenty-four zones of lighting. GRAFIK Eye...
- Page 2 GRAFIK Eye Control Unit To Set Up GRAFIK Eye: To Operate GRAFIK Eye: Press a Scene button to recall 1. Select a Scene. its corresponding light levels. Press the Off button to turn all lights off. INSTRUCTION LABEL 2. Adjust light level of each Zone.
-
Page 3: Installation Instructions

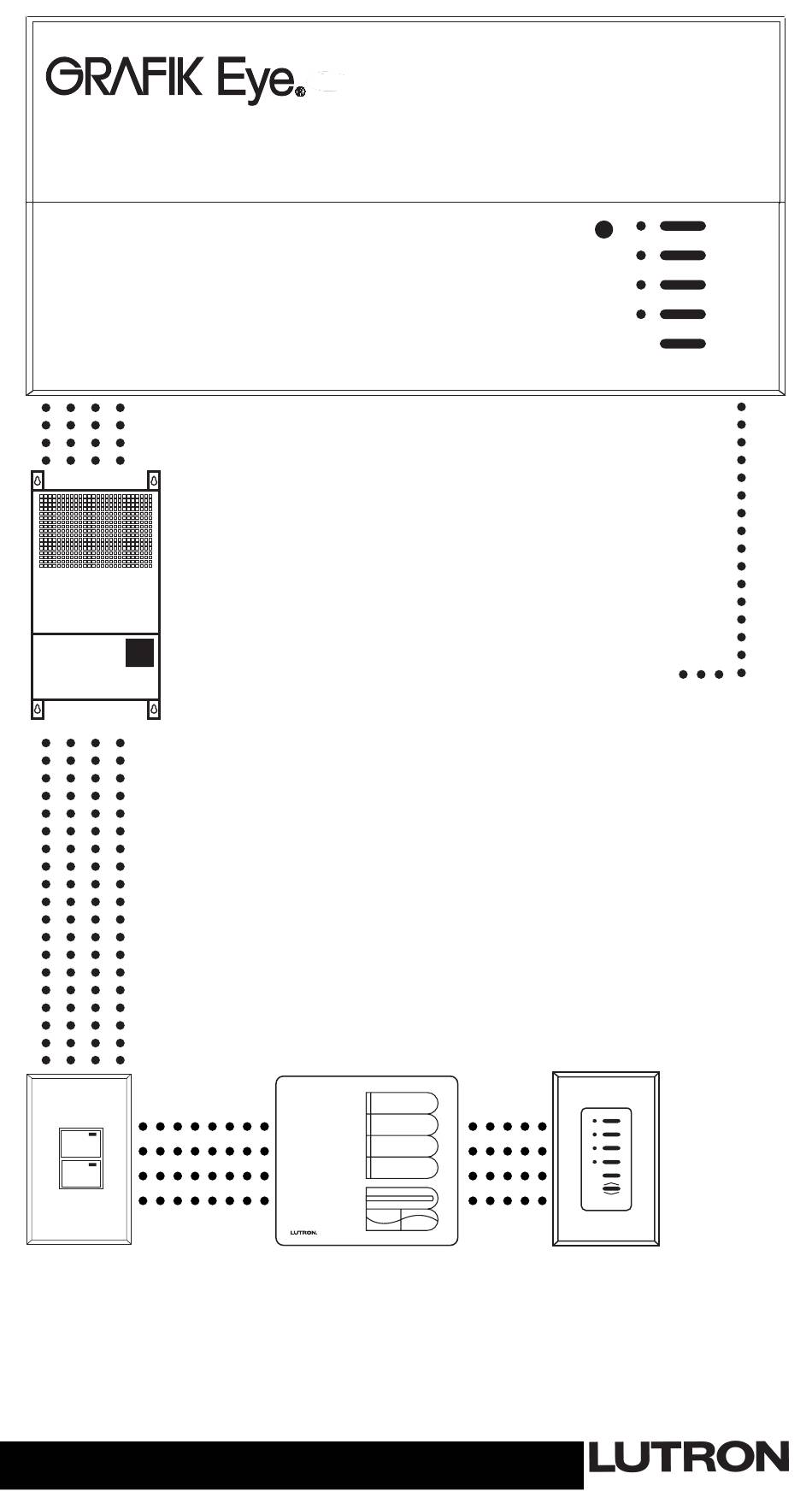

Class 2/PELV Wiring Class 2/PELV wiring is used to carry communications between GRAFIK Eye Control Units, EACH TERMINAL CAN ACCEPT UP TO Wallstations, Control Interfaces, and the Circuit Selector. 2 #18 AWG (1.0 mm 2 ) WIRES Lutron requires that you connect (daisy-chain) all GRAFIK Eye Control Units and Wallstations for proper operation. - Page 4 Setting up the scenes to create the desired lighting effects, and make sure the Control Unit is working correctly. SCROLL THROUGH SETUP CODES To set up the GRAFIK Eye Control Unit, enter the “setup mode” and use the menu of setup codes that appear in the FADE window. Step-by-step FADE...
- Page 5 Assign addresses to GRAFIK Eye Control Units The following instructions on Addressing and Assigning For 16- and 24-zone Control Units, please see Zones are critical for the correct setup of a GRAFIK Eye instructions on Page 9! system. Assign each GRAFIK Eye Control Unit in your project a unique system address (A1 through A8).
- Page 6 In this example, ZONE 6 is set to 60%.) To program scenes 5 through 16, or for more precise zone intensity adjustment with a SET SCENE’S FADE-IN TIME GRAFIK Eye 3500 Control Unit, refer to “Advanced Scene Programming Options” below. 3. Set scene’s FADE-in time. Press FADE to make FADE-in time anything from 0—59 seconds or 1—60 minutes*.
- Page 7 5. Exit setup mode. Press and hold Scene 1 and OFF buttons until LEDs stop cycling. How to set Save Options — OPTIONAL The GRAFIK Eye 4000 Series Control Units allow selection of several SELECT different Save Options. Follow these steps to access the Save Options.
-
Page 8: Troubleshooting
5,463,286; 5,530,322; 5,808,417; DES 308,647; DES 310,349; DES 311,170; DES 311,371; DES 311,382; DES 311,485; DES 311,678; DES 313,738; DES 335,867; DES 344,264; DES 370,663; DES 378,814 and corresponding foreign patents. U.S. and foreign patents pending. Lutron and GRAFIK Eye are registered trademarks of Lutron Electronics Co., Inc.
