Summary of Contents for BEEWAIR BW60L

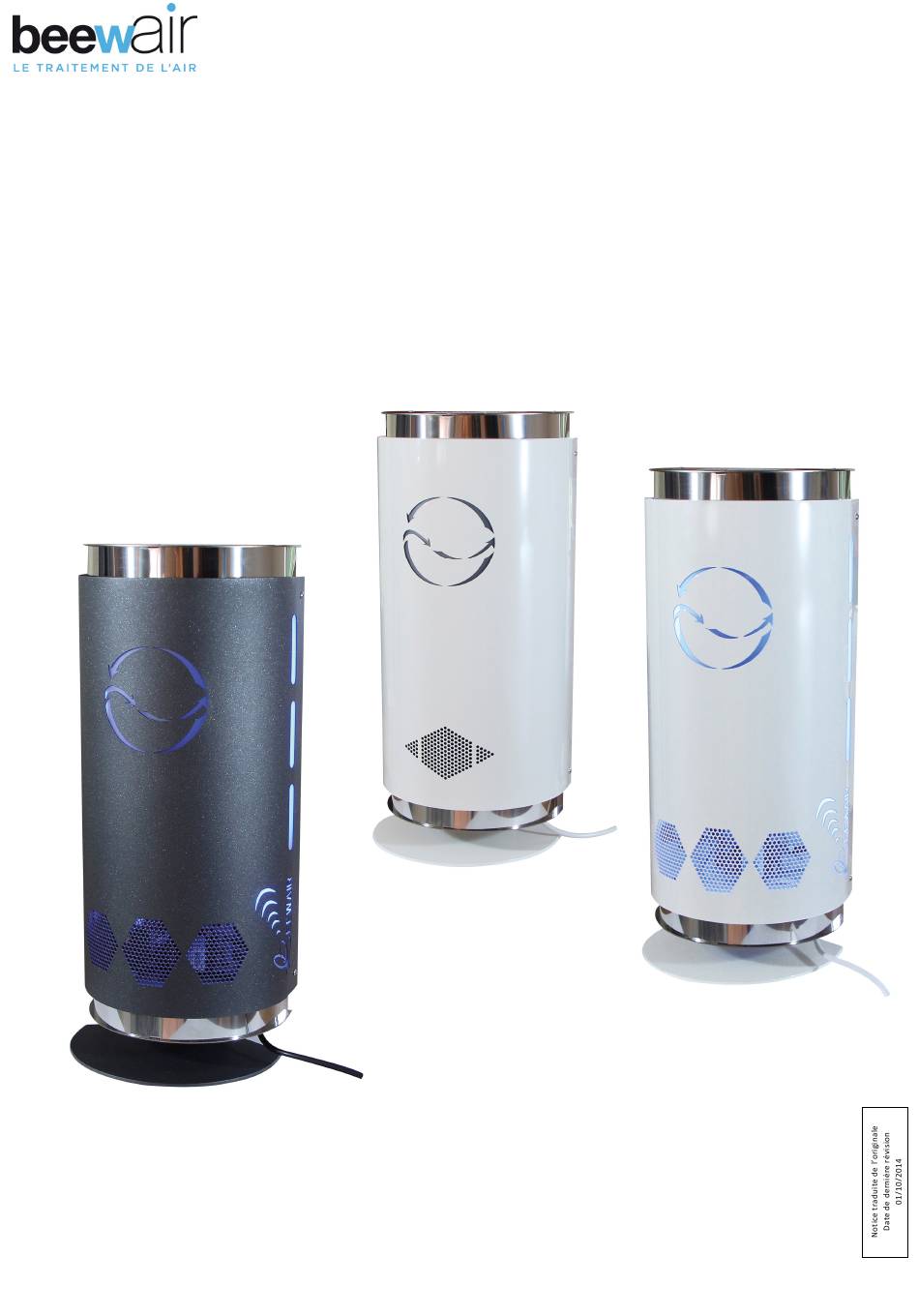

- Page 1 DMK SC 016-3C 1/10/2014 BW60L OPERATING MANUAL Ref : 109 073 Clinical White Ref : 109 072 White Varnished Finish Ref : 109 071 Charcoal Grey...
- Page 2 DMK SC 016-3C 1/10/2014...
-
Page 3: Table Of Contents
DMK SC 016-3C 1/10/2014 Contents 1. Safety Instructions 2. Description of the unit 3. Installing the unit Positioning Power Supply Presentation of settings 3.3.1 Stop/start – ventilation speed selection 3.3.2 Automatic or manual mode 3.3.3 LED light levels 3.3.4 Protective fuse 4. - Page 4 DMK SC 016-3C 1/10/2014...
-
Page 5: Safety Instructions
Système de traitement de l’air Technologie DBD-Lyse BEEWAIR Made in France Fabriquant: Manufacturer details BEEWAIR - 3 allée de la Teppe - BP60031 71012 MACON CEDEX - FRANCE Serial number Date of manufacturing N° de série : Date de Fabrication :... - Page 6 DMK SC 016-3C 1/10/2014 WARNING : The safety instructions outlined in this manual are not completely comprehensive. They provide a reminder of the most common risks encountered when using electrical equipment. Care must be taken and common sense applied in the installation, use and maintenance of this unit.
- Page 7 DMK SC 016-3C 1/10/2014 Description of the unit The BEEWAIR BW60L device, with its patented DBD-Lyse® technology, allows eliminating and cracking of carbonated molecules (contaminants, viruses, bacteria, smells, allergans, VOCs, etcBthrough a physical-chemical method. A photo-catalytic electrical discharge barrier generates free radicals, which instantaneously degrade all carbon chains of the molecules inside the reactor, and then recompose into stable molecules which can be found naturally in water (H²O) or air : oxygen (O²), nitrogen (N²) and...
- Page 8 The BW60L device allows decontaminating, cleaning-up and deodorizing an air volume equivalent to 40m3 per hour. Laboratory tests have certified that the BW60L device shows a reduction of over 99.9% of microbial germs after one hour, thus protecting against allergies and diseases via cross contamination.
- Page 9 DMK SC 016-3C 1/10/2014 Air input Air output 1 : Stop/start – ventilation speed selection 2 : Manuel Mode 3 : LED light switch 4 : Transport handle...
- Page 10 DMK SC 016-3C 1/10/2014 3. Installing the unit 3.1 Positioning The equipment can use one of 2 installation positions – either installed on the wall at a height of about 1m50 from the floor using the notches provided on the back of the unit in a horizontal or vertical position, or installed on a stable, upright support, preferably at wall height, and where there is no risk of the device falling.
- Page 11 DMK SC 016-3C 1/10/2014 3.2 Power supply The machine must have a 220v 50 Hz power supply. Warning : It is forbidden to position the device in such a manner that it is difficult to unplug the unit. 3.3 Presentation of settings 3.3.1 Stop/Start - ventilation speed selection This switch allows you to start the system and select the ventilation speed (position I or II...
- Page 12 LED Orange LED Blue The pollution detection probe integrated in the decontamination unit BW60L Beewair controls the visual pollution level indicators (LED’s). The sensor integrated in the probe allows the detection of pollution comprising between 0 and 30ppm in equivalent EtOH (30ppm being approximately...
- Page 13 It is important to note that the Blue level can be achieved if the treatment by the Beewair BW60L units is sufficient with regards to the size of the space and the type of decontamination.
-
Page 14: Maintenance
DMK SC 016-3C 1/10/2014 Fuse drawer Security fuse Spare fuse 4. Maintenance 4.1 Frequency of replacement In order for the unit to function correctly it is important that the pre filter G4 is changed once a year. In the case of very dusty environments it may be necessary to replace it more often. The reactor cartridge must be replaced after 20,000 hours use or every 2 years. -
Page 15: Cleaning
UV radiation. 4.3 Changing the reactor cartridge The reactor cartridge must be replaced every 20,000 hours by a skilled technician only and Beewair recommends to contactor your official distributor in order to arrange this maintenance procedure. -
Page 16: Warranty
DMK SC 016-3C 1/10/2014 5. Warranty All our technical experience and concern for quality has been used in the manufacturing of this unit. It has been subject to strict quality controls. If, despite all the care and know-how applied during manufacturing process, you require using our warranty, please note that only replacement of the faulty parts (excluding shipping charges) is covered. -
Page 17: Contacts
DMK SC 016-3C 1/10/2014 7. Contacts Made by : BEEWAIR Address : BP 60031 71012 Mâcon Cedex France Tel : +33 (0)3 85 36 00 73 Fax : +33 (0)9 70 32 08 66 E-mail : contact@beewair.f r Website : www.beewair.fr... -
Page 18: Weee Directive
DMK SC 016-3C 1/10/2014 8. WEEE Directive : Directive DEEE (Déchets des équipements WEEE Directive (Waste Electrical and Electronic électroniques et électroniques) Equipment) Le logo DEEE signale des programmes de The WEEE logo signifies specific recycling recyclage et des procédures destinés aux produits programs and procedures for electronic products in électroniques des pays de l’Union européenne. -
Page 19: Ce Conformity
DMK SC 016-3C 1/10/2014 9. CE Conformity... - Page 20 DMK SC 016-3C 1/10/2014 contact@beewair.fr www.beewair.com...
