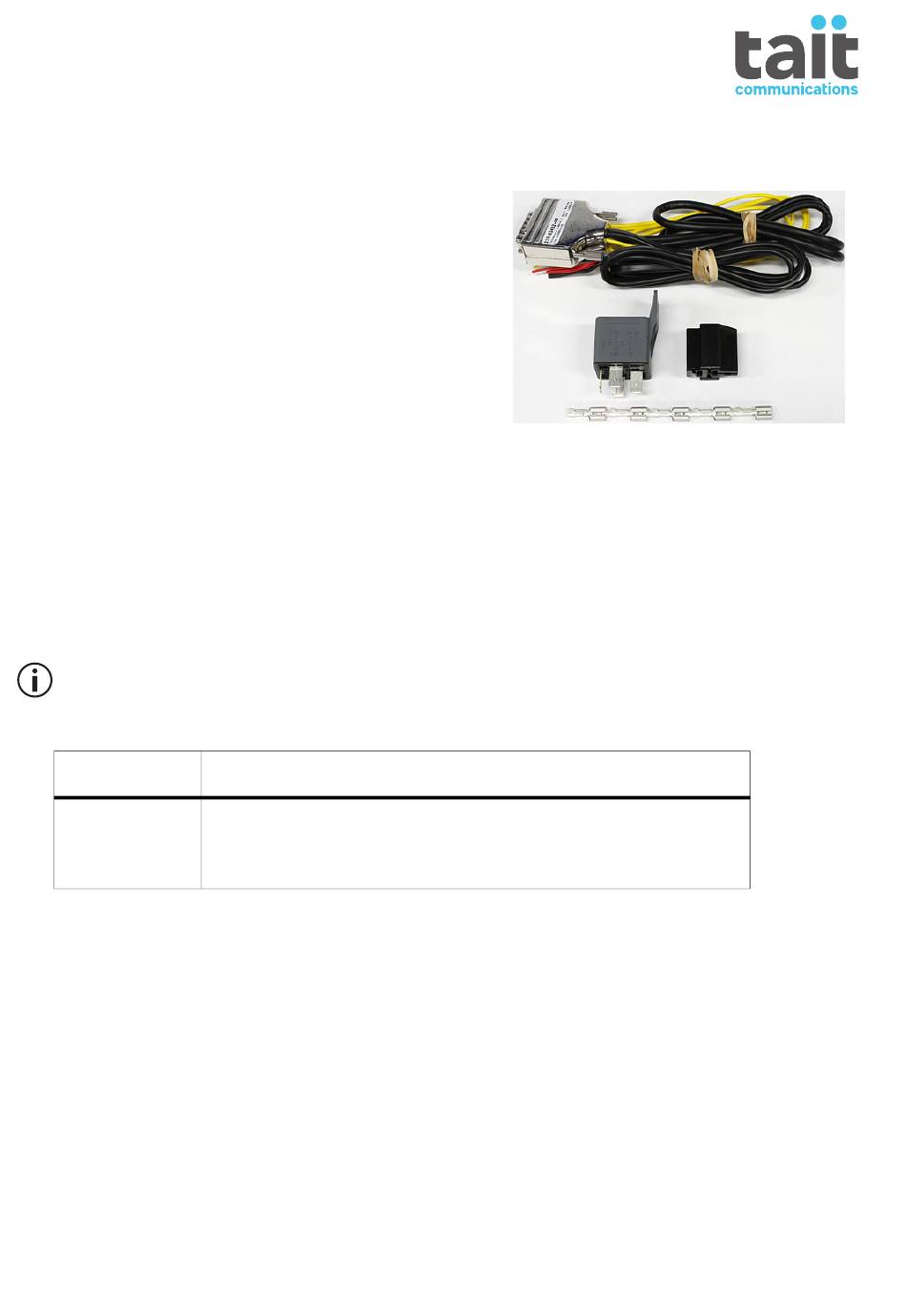

T02-00034-ABAA
Telemetry Cable/Horn Relay
Installation Instructions

Introduction

The T02-00034-ABAA cable can be used to
connect to the input and output lines of the
auxiliary connector of TM8000 and TM9000
mobile radios.
The cable also provides a line for ignition sense
and a relay driver for switching a 12V relay.
Notice The radio does not meet the IP54
protection standard once the bung covering the
radio's auxiliary connector has been removed.
Notice The cable may not be suitable for use in high-temperature environments such
as the engine compartment.

Hardware Configuration for Ignition Sense

The radio hardware link LK2 (on the top-side of the radio's main board) must be fitted for
ignition sense operation. The following table describes the configuration options.
LK2 is fitted by default.

Configuration of hardware links for ignition sense

Link required
Voltages required for T02-00034-ABAA
LK2 in
Ignition signal
(factory default)
Ignition signal
Ignition-sense compatible with 24V vehicular systems (34V max.)
© Tait Limited November 2012
www.taitradio.com
402-00092-00
0.9V (or floating) = off
5V = on

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T02-00034-ABAA and is the answer not in the manual?

Questions and answers

Summary of Contents for Tait T02-00034-ABAA

  • Page 1 T02-00034-ABAA Telemetry Cable/Horn Relay Installation Instructions Introduction The T02-00034-ABAA cable can be used to connect to the input and output lines of the auxiliary connector of TM8000 and TM9000 mobile radios. The cable also provides a line for ignition sense and a relay driver for switching a 12V relay.
  • Page 2 AUX_GPIO7 blue Ground black The relay outputs of the T02-00034-ABAA cable are protected by two SMD fuses located on the circuit board inside the connector housing. For servicing information refer to the radio’s service manual. More Information For more information on this product contact your radio provider.
