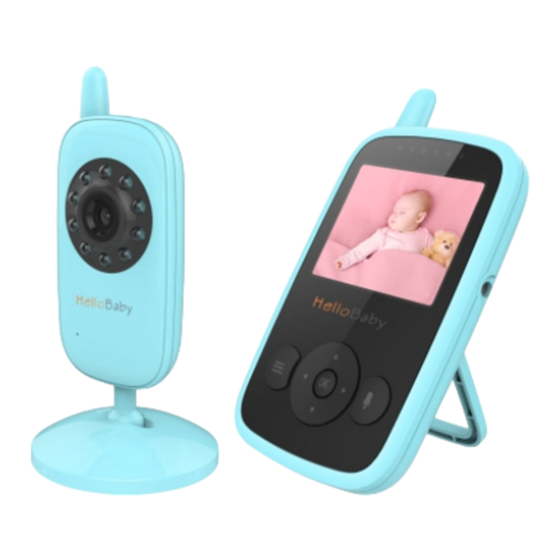

Videotimes HelloBaby HB24 User Manual

Thank you for purchasing the baby monitor of HelloBaby.
We will try to give you the best products and service .
Congratula on!
Now you can take care of your babies any where and
any me ! Please read the use manual before you use !
Please retain your original dated sales receipt for your
records. For warranty service of your Video mes product,
you will need to provide a copy of your dated sales receipt
to confirm warranty status. Registra on is not required for
warranty coverage.
Before you use the product, we recommend you insert and
fully charge the ba ery in the parent unit, so that it
con nues to work if you disconnect it from the power
supply to carry it to another loca on. Please read the
Safety instruc ons.
Please make sure you have the following in this packing.
1. Parent unit x 1;
2. Baby unit x 1;
3. Adapter x 2;
o 4. User manual x 1;
1. SAFETY INSTRUCTIOINS:
2.4'' Digital Wireless Video Baby Monitor
CAUTION: Keep small parts away from children.
HB 24 User manual
Strangula on Hazard: Children can become entangled in
cords.
The features described in user's manual
Power cords should be kept more than 3 feet away from the
are subject to modifications without prior
crib and
notice.
baby's reach at all mes. Baby monitors and cameras with
power cords should never be hung on or near the crib.
This product is not a toy and should be kept out of children's
WARNING:
reach.
This product contains small parts. Exercise care when
Keep the small parts from away children
unpacking and assembling the product.
http://www.Videotimes.com.hk —1—
Read and keep instruc ons: All the safety and opera ng FCC STATEMENTS:
instruc ons should be read before the video baby monitor This device complies with part 15 of the FCC Rules.
is operated. Opera on is subject to the following two condi ons:
This product cannot replace responsible adult supervision. (1) This device may not cause harmful interference.
Water and moisture: This product is designed for indoor (2) This device must accept any interference received,
use only. including interference that may cause undesired opera on.
The unit should not be exposed to rain, moisture, dripping NOTE 1: This equipment has been tested and found to comply
or splashing. No objects filled with liquid should be placed with the limits for a Class
on top of, or beside the product, such as a glass or vase. B digital device, pursuant to part 15 of the FCC Rules. These
This item should not be used near water. limits are designed to provide reasonable protec on against
DO NOT: Use the appliance if the cord or plug is damaged . harmful interference in a residen al installa on.
If your baby monitor is not opera ng properly or has suffered This equipment generates, uses and can radiate radio
any damage, contact "Video mes" service center to request frequency energy and, if not installed and used in accordance
inspec on and repair of the appliance in order to avoid any with the instruc ons, may cause harmful interference to
possible risk. radio communica ons. However, there is no guarantee that
DO NOT: A empt to repair or adjust any of the electrical or interference will not occur in a par cular installa on. If this
mechanical func ons of the unit since, if you do, the equipment does cause harmful interference to radio or
guarantee will be made void. television recep on, which can be determined by turning the
Ven la on: This baby monitor should not be used on a bed, equipment off and on, the user is encouraged to try to correct
sofa, rug or similar surface that may block the ven la on the interference by one or more of the following measures:
openings, or be placed in an enclosed area, such as a - Reorient or relocate the receiving antenna.
bookcase or drawer that may impede air flow. - Increase the separa on between the equipment and receiver.
Keep away from sources of heat: This unit should not be -Connect the equipment into an outlet on a circuit different
exposed to direct heat sources such as a candle, replace, from that to which the receiver is connected.
radiator, heat register, stove or other appliance that emits -Consult the dealer or an experienced radio/TV technician
heat. The unit should not be le in direct sunlight. for help.
Power source: This unit should only be used with the AC NOTE 2: Any changes or modifica ons to this unit not
power adapters included in this package (rated 6V 600mA). expressly approved by the party responsible for compliance
Damage requiring service: This unit should be serviced by could void the user's authority to operate the equipment.
qualified personnel only when:
1. Objects have fallen or liquid has been spilled into the FCC WARNING
product; This equipment has been tested and found to comply with
2. The units have been exposed to rain; the limits for a Class B digital device, pursuant to Part 15 of
3. The units do not appear to operate normally or exhibits a the FCC Rules. These limits are designed to provide
dis nct change in performance; reasonable protec on against harmful interference in a
4. The units have been dropped or the enclosure damaged; residen al installa on.
—2— —3—
This equipment generates, uses and can radiate radio be able to establish a radio link between them, and the range
will be affected by environmental condi ons.
frequency energy and, if not installed and used in accordance
with the instruc ons, may cause harmful interference to *Any large metal object, like a refrigerator, a mirror, a filling
cabinet, metallic doors or reinforced concrete between the
radio communica ons.
However, there is no guarantee that interference will not baby and parent unit may block the radio signal.
*The signal strength may also be reduced by other solid
occur in a par cular installa on. If this equipment does
cause harmful interference to radio or television recep on, structures, like walls, or by radio or electrical equipment,
which can be determined by turning the equipment of and on, such as TV, computers, cordless or mobile phones,
fluorescent lights or dimmer switches.
the user is encouraged to try to correct the interference by
one or more of the following measures: *Use of other 2.4GHz product, such as wireless networks
(Wi-Fi routers), Bluetooth systems, or microwave ovens,
*Reorient or relocate the receiving antenna.
*Increase the separa on between the equipment and the may cause interference with this product, so keep the baby
monitor away at least 5 (1.5m) from these types of products,
receiver.
*Connect the equipment into an outlet different from that to or turn them off if they appear to be causing interference.
which the receiver is connected. *If the signal is weak, try moving the parent or the baby unit
to different posi ons in the rooms.
*Consult the dealer or an experienced radio/TV technician
for help.
IC STATEMENTS: 4. PRODUCT OVERVIEW
4.1 Parent unit overview:
This Class A digital apparatus complies with ICES-003.
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifica ons to this Antenna
Charging LED
equipment. Such modifica ons could void the user's authority
Power LED
Volume LED
to operate the equipment.
Power key
2. WARRANTY TERNS
LCD
We take quality very seriously. This is why all of our products
come with a one year warranty from the original purchase
Menu/OK
date against defects in workmanship and materials. If you
Volume + / Up key
have warranty or support issues please contact the store Exit/Talk to baby
Volume - / Down key
where you purchased the product or contact us directly
through below website:
Brightness + / Right key
Brightness - / Left key
h p://www.video mes.com.hk
Zoom / View / Scan
MIC
3. Important guidelines for installing your baby monitor.
*To use your parent unit and baby unit together, you must
—4— —5—
4.2 Baby unit overview: 5. PLACEMENT OF THE BABY MONITOR:
This camera can be placed on a tabletop or hung on the
Antenna wall ;
Place the baby monitor in a place where the air can
Light sensor
circulate freely;
Speaker
Do not place on so quilts or blankets or in the corners
Infrared LEDS
of cupboards, shelves, etc;
CMOS sensor
Place the baby monitor away from heat sources such as
radiators, chimneys, cookers and direct sunlight;
Power LED
Place the baby unit away from TV sets, microwave oven
Pair key
and radios. The intense radio signals generated by these
MIC
elements could cause noise or even sounds and images to
DC-Jack
appear on the monitor. If this occurs, move the camera to
Temperature
another loca on;
sensor
*Place the camera within 15 feet of the area being
monitored for best picture result.
* Baby monitors and cameras with power cords should
4.3 ICONS OVERVIEW:
never be hung on or near the crib as it is a strangula on
hazard. Power cords should be kept no less than 3 feet
------- Signal ------- Volume away from the crib and the baby's reach at all mes.
------ Alarm ------ Brightness
6. Using the baby monitor
6.1 TURN ON THE BABY UNIT:
------ Lullaby --------- VOX
*Only use the A/C adapter included in this package
(6V, 600mA);
Speaker
1. Locate the connector socket on the back of the baby unit;
------ Camera -------- Ba ery
DC-jack
2. Connect the adapter cable to the baby unit;
INPUT: DC6V 600mA
Use only power adapters listed in the 3. Plug the A/C adapter into the wall outlet.
user instructions.
Li-ion Battery 3.7V,950mAh
----- Zoom ------- Temperature
FCC ID: ****** 26℃ 4. Once the adapter connected , the power LED will light up.
IC ID:******
MADE IN CHINA
Shenzhen Videotimes Technology
Baby Monitor Model:J20PU
S/N:150800001PU
----- Talk to baby -------- Night vision
6.2 TURN ON THE PARENT UNIT:
Stand Reset key
*Only use the A/C adapter included in this package
(6V, 600mA);
*The parent unit is supplied with a built-in rechargeable
—6— —7—
