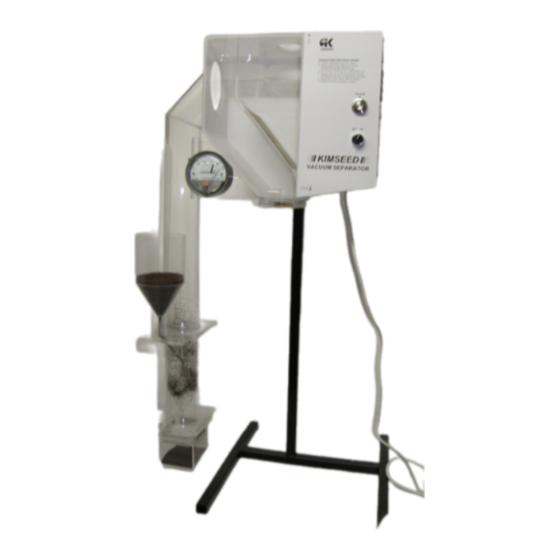

Vacuum Separator - Canola
So efficient is the Kimseed Vacuum
Separator that it is used by most
Seed Collectors and Processors
throughout Australia and
Worldwide
In:
o Government Organizations
o Flower, Grass, Shrub & Tree
producers.
o Agricultural Departments
o Seed Producers &
Processors
o Research Institutions
o Universities
Features of the Canola Model.
• Quick and Easy Separation of Lighter Impurities from Seeds or Lighter Seeds
from Heavy Impurities.
• Suited for Cleaning all kinds of Seeds
• Specially suited for Canola and Linseed testing at Grain Receival Centres.
• Quick cleaning of Research Quantities of Grains and Pasture Seeds.
• Cleans many other tree, Shrub and Flower seeds specially Eucalypts, for putting
through Automatic Pot Seeders.
• Portable – can be Free Standing or fixed to a Wall
• Greater adjustment of both: Fan Speed and vacuum Flow using speed control
knob or Sliding Suction Port.
• Optional Gauge for monitoring and setting air flow.
Sustainable Land Management and Practical Applications Since 1970
KS 2009
Kimseed International Pty Ltd
ACN 108 508 336
4/5 Collingwood St
Tel: 61-8-94464377
Western Australia
Operating Manual
ABN 37 108 508 336
Osborne Park 6017
Fax: 61-8-94463444
www.kimseed.com.au
Email:
kimseed@kimseed.com.au
Advertisement
Table of Contents
Summary of Contents for Kimseed Vacuum Separator
- Page 1 Western Australia www.kimseed.com.au Email: kimseed@kimseed.com.au Vacuum Separator - Canola Operating Manual So efficient is the Kimseed Vacuum Separator that it is used by most Seed Collectors and Processors throughout Australia and Worldwide o Government Organizations o Flower, Grass, Shrub & Tree producers.
- Page 2 Sustainable Land Management and Practical Applications Since 1970. KS 2009...
- Page 3 Check that gauge reads zero. (adjust see below ) 9. Plug the cord into the 240 V 10amp A.C mains electrical supply. 10. Vacuum Separator is ready for use. Stand Assembled 1) Venturi feed Funnel attachment 2) Clean Sample catchment tray...
- Page 4 Weigh and screen a 500 gram sample of Canola ready for cleaning. 9. SET AIR FLOW: With the Set Up complete, switch the Vacuum Separator on and adjust the fan speed until the air flow gauge reads at the Green line .
- Page 5 CLEANING IN ACTION with the Kimseed Venturi / Feed Funnel Funnel and down tube drops the sample at the tip of the cone Air accelerates around the cone flying off lighter particles. Cleaned Canola sample collects in the tray below.
- Page 6 Kimseed Vacuum Separator slide in collection trays Impurities collected in Trash tray Clean Sample collected in the bottom Sample Tray Sustainable Land Management and Practical Applications Since 1970. KS 2009...
- Page 7 Maintenance of Kimseed Vacuum Separator Warning: Disconnect Power Cable from the wall socket when cleaning this machine! Clean Funnel Drop Tube when required with supplied green pipe cleaner attached with this manual. Clean Main air flow screens when required to maintain good airflow.
