Logik LK212R Quick Start Manual

Wireless Keyboard
Quick Start Guide
LK212R/ LK212B/
LK212V/ LK212O
LK212P
Thank you
for purchasing your new Logik Wireless Keyboard.
Please familiarise yourself with this Quick Start Guide to enjoy all the exciting features o ered.
1 1
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it, please do so according to
the local regulations.
The following items are included:
F11 F12 scroll num prt sc pause
esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 lock sys rq break insert delete
_
! $ % ^ & 7 8 ( 9 ) +
- = Wireless Keyboard
1 2 3 4 C 5 6 7 8 9 0
4 5 6 { } - Quick Start Guide
Q W E R T Y U I O P [ ] # LK212R/ LK212B/
LK212V/ LK212O
1 2 3 : + LK212P
caps A S D F G H J K L @
lock ;
0 < . > ? /
shift Z X C V B N M , shift page
/ up
| page
ctrl fn \ alt gr ctrl down
home end

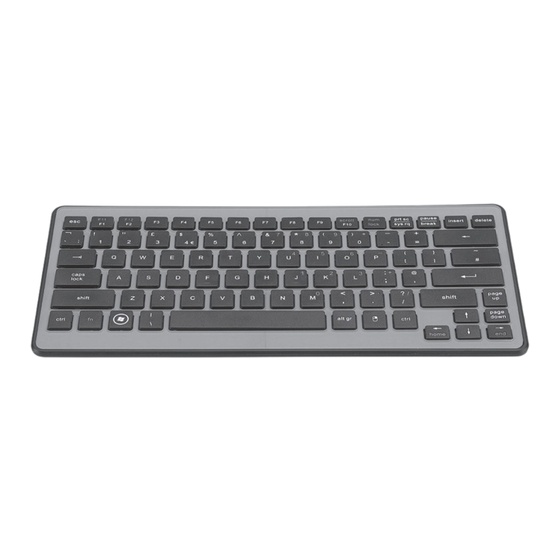

Keyboard Nano Receiver AAA Size Batteries x 2 Quick Start Guide
P.N.: MRN P.N.: AAABTY P.N.: LK212R_B_V_O_P-001
If items are missing or damaged, please contact Partmaster (UK only). Tel: 0844 800 3456 for assistance.
2 2
System Requirements
Operating Systems: Microsoft® Windows® XP/ Vista™ & Windows®7
Hardware: 1 available USB port.
3 3
Install the Batteries
1. Slide the battery compartment to the right and lift to remove.
2. Insert two AAA batteries, making sure battery and keyboard polarities ( + / - ) match.
3. Snap the battery cover back into place.
ON OFF
Battery Cover
USB Receiver
Please ensure the batteries' polarities
(+ / -) match the battery
compartment's polarities.
4 4
Connect the USB Nano Receiver
Step l: Switch on your computer.
Step 2: Slide the power switch of the keyboard to the ON position.
Step 3: Insert the RF receiver into a free USB slot.
USB
Step 4: The keyboard should connect automatically.
5 5
Activating the Keyboard
If the keyboard does not respond, perform the following:
Step l: Remove the RF receiver.
Step 2: Turn over the keyboard without pressing any key. If the power switch is in the OFF position, slideit to
the ON position rst. Press the connect Button.
Step 3: Re-insert the RF receiver into the USB slot.
ON/OFF Switch
ON OFF
ON OFF
Connect Button
Step 4: Then press any key. The keyboard should now be activated and ready for use.
