Flow Max
Galley Faucets
Installation and Owner's Manual
(For Aftermarket Applications)
Flow Max
Galley Faucets
Installation and
Owner's Manual
(For Aftermarket Applications)
2
2
2
2
3
3
3
3
4
5
5
6
7
7
8
1
CCD-0001241
TM
TM
Rev:04.10.18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

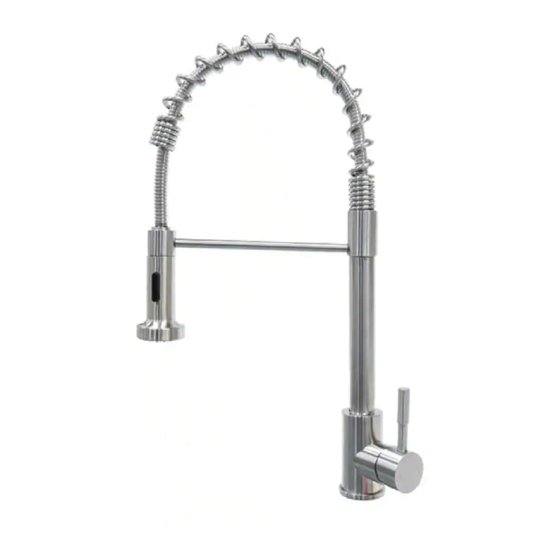

Summary of Contents for Lippert Components Flow Max 719323
-
Page 1: Table Of Contents
Flow Max Galley Faucets Installation and Owner’s Manual (For Aftermarket Applications) Flow Max Galley Faucets Installation and Owner’s Manual (For Aftermarket Applications) Table of Contents Introduction ..........Quick Facts . -
Page 2: Introduction
• Toggle for stream or spray options (Pull down only) Pull Down Installation • Easy DIY installation • Pairs well with stainless sink sets by Lippert Components. * * Items sold separately Safety Information THE “WARNING” SYMBOL ABOVE IS A SIGN THAT... -
Page 3: Resources Required
Flow Max Galley Faucets Installation and Owner’s Manual (For Aftermarket Applications) Resources Required 3. Place the faucet supply lines through the mounting • Phillips screw driver hole on the deck, making sure the black rubber washer • Adjustable wrenches and faucet base are seated firmly on the deck of the sink •... -
Page 4: Pull Down Faucet
Flow Max Galley Faucets Installation and Owner’s Manual (For Aftermarket Applications) Pull Down Faucet 6. Make sure the two screws on the coupler are evenly inserted and are flushed with the top of the coupler (Fig.4A). 1. Unscrew the black plastic coupler from the faucet base and slide off from the faucet assembly. -
Page 5: Operation
Flow Max Galley Faucets Installation and Owner’s Manual (For Aftermarket Applications) Operation 5. Slide the black plastic coupler back onto the supply Fixed Faucet lines, inserting one supply line at a time. 1. Pull the lever away from the faucet to turn it on (Fig.9A). NOTE: Make sure the inside threads of the black plastic coupler are at the top. -
Page 6: Pull Down Faucet
Flow Max Galley Faucets Installation and Owner’s Manual (For Aftermarket Applications) 3. Push the lever in towards the faucet to shut the water off 2. Move the lever towards you for hot water (Fig.14) and (Fig.12A). away from you for cold water (Fig.15). NOTE: Located on the front of the lever is a “H”... -
Page 7: Troubleshooting Chart
Flow Max Galley Faucets Installation and Owner’s Manual (For Aftermarket Applications) Maintenance 6. To shut the water off push the lever in towards the faucet Clean the faucet periodically with a soft cloth. Avoid (Fig.17). abrasive cleaners, steel wool and harsh chemicals as these will dull the finish and void the warranty. -
Page 8: Notes
(For Aftermarket Applications) Notes Notes Manual information may be distributed as a complete document only, unless Lippert Components provides explicit consent to distribute individual parts. All manual information is subject to change without notice. Revised editions will be available for free download at lci1.com.
