These lights use extremely bright, cool white, energy-efficient LEDs and are effective in directing the light to the work area. Light
strips are ideal for use on machines, in control panels, cabinets, enclosures, and for industrial work areas. Light strips are available
for environmental protection ratings of IP50, IP67, and IP68 and are offered as stand-alone light strips and cascading systems. Work
lights are ideal for compact industrial lighting where space is limited. The flexible arm has unlimited adjustment possibilities and directs
the light where needed.
Environmental Rating IP50
• Dustproof
Stand Alone
Cascading
Standard .............................pp. 2-5
Heavy-Duty .........................pp. 6-9
Copyright © 2017 by Rockford Systems, LLC. All rights reserved. Not to be reproduced in whole or in part without written permission. Litho in U.S.A.
4620 Hydraulic Road • Rockford, Illinois 61109-2695 • Toll-Free 1-800-922-7533 • Phone 815-874-7891
Fax 815-874-6144 • Web Site www.rockfordsystems.com • E-Mail sales@rockfordsystems.com
LED Light Strips
Environmental Rating IP67
• Dustproof
• Water resistant
Stand Alone
Cascading
Standard .........................pp. 10-11
Heavy-Duty .....................pp. 12-13
Work Lights
LED Work Lights . . . . . . . . . . pp. 16-17

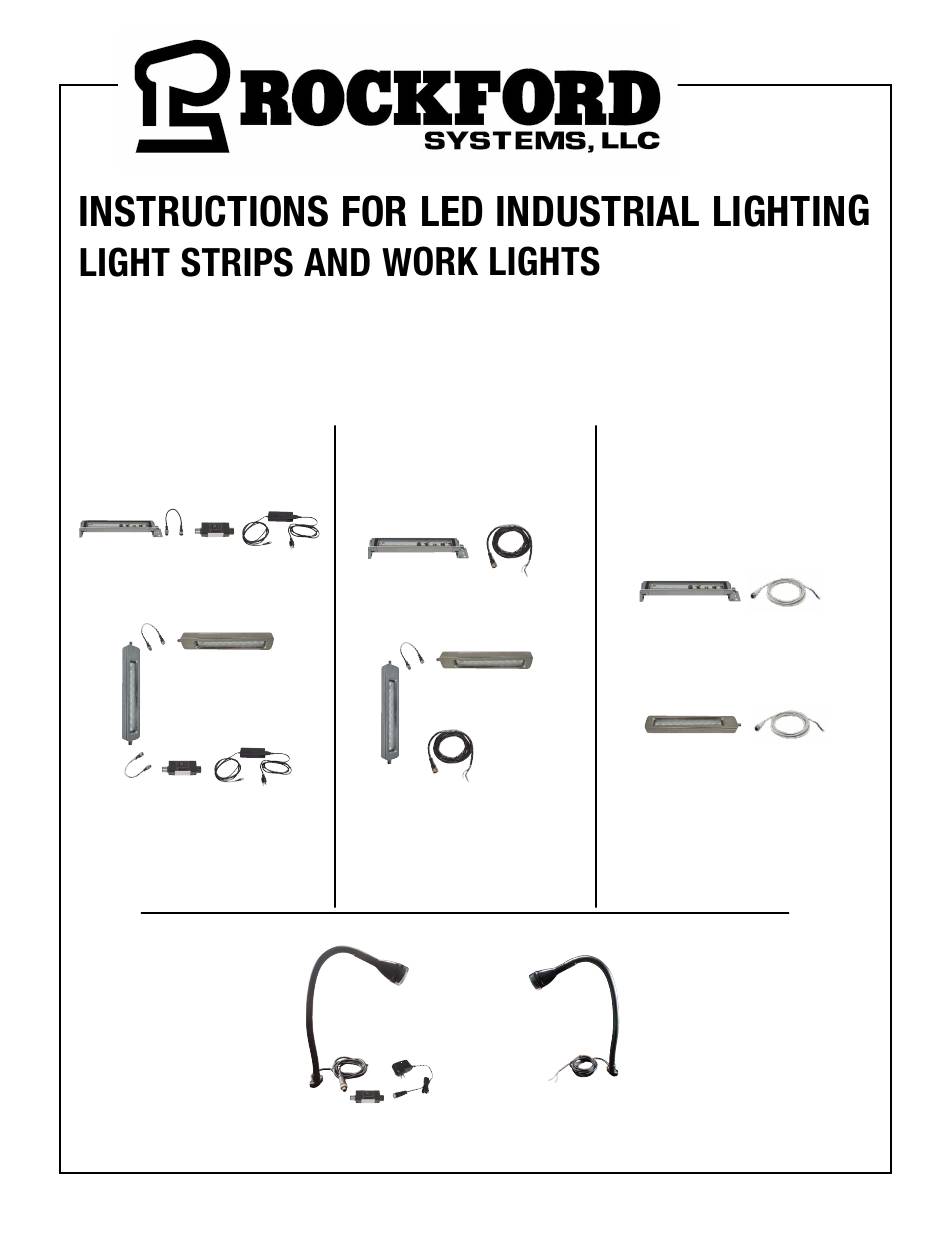

Instruction Manual No. KSL-289
Environmental Rating IP68
• Dustproof
• Suitable for harsh environments
• Protected up to 1200 PSI
Standard
Heavy-Duty
Standard .................................p. 14
Heavy-Duty .............................p. 15
