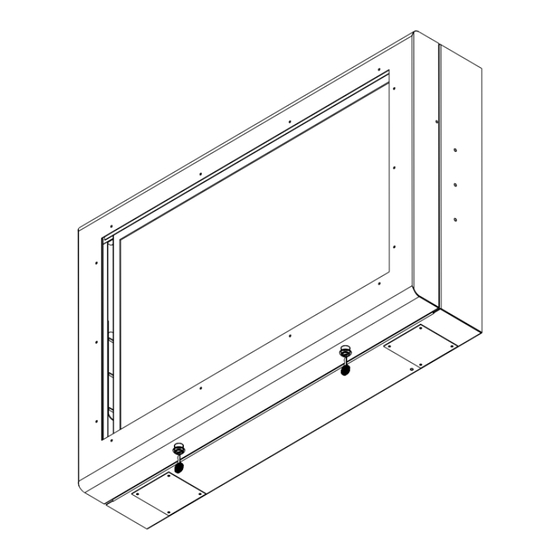

ARMAGARD PDS 32/42/46/47/52/55 – DISPLAY & WALL MOUNTING
INSTALLATION MANUAL
READ THIS MANUAL THROUGH BEFORE INSTALLING YOUR UNITS TO ENSURE CORRECT
INSTALLATION AND THAT YOU'RE COVERED UNDER WARRANTY.
The following manual details the vital
information and safety precautions needed
for a safe installation of the Armagard PDS
landscape enclosure.
Due to the weight of your enclosure and for
personal safety, it is recommended to refer
to your company's own health and safety
heavy lifting procedures before moving the
enclosure.
All power must be switched off until the
enclosure has been fully assembled and is
ready to use.
If your enclosure is for outdoor use, don't
attempt installation in bad weather; use
correct lighting for optimum viewing
conditions.
Tools required for installation, Phillips
Screwdriver, Drill and Sockets Kit or Wrench
YOUR WARRANTY AGREEMENT IS VOID
enclosure, for example, drilling or penetrating any additional holes into the enclosure.
FOR BEST PRACTICE
integrity.
www.Armagard.com
if you perform any modifications on the
mount the enclosure using the recommended brackets to ensure
32"-55"
Electrical plugs, display bracket screws and
wall plate bolts are not provided because of
different customer setups.
Armagard recommends that all enclosures
should be securely attached to the wall
before fitting the display to avoid any
damage during lifting.
Default thermostat settings can be found on
page eleven.
Because of its watertight seal, to lock an
enclosure you have to push firmly against
the door and then turn the key to lock.
Toll Free (US):
(ENGLISH)
PDS-32/42/46/47/52/55
Installation Manual Page |
1-866-434-0807
Call (UK):
0121-608-7210
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDS 32 and is the answer not in the manual?

Questions and answers

Summary of Contents for Armagard PDS 32

  • Page 1 ARMAGARD PDS 32/42/46/47/52/55 – DISPLAY & WALL MOUNTING (ENGLISH) 32”-55” INSTALLATION MANUAL READ THIS MANUAL THROUGH BEFORE INSTALLING YOUR UNITS TO ENSURE CORRECT INSTALLATION AND THAT YOU’RE COVERED UNDER WARRANTY.   Electrical plugs, display bracket screws and The following manual details the vital...
  • Page 2: Display Mounting

    20mm Grommets x3 Standard 15 deg enclosure enclosure wall Bracket LCD Mounting Single ceiling wall bracket (handed) bracket bracket x 1 Keys Keys x2 LCD Mou bracket PDS-32/42/46/47/52/55 Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
  • Page 3 STEP 6: Check all apparatus for the installation is correct (Figure2) LCD MOUNTING BRACKET X2 Figure 2 PDS-32/42/46/47/52/55 (NOTE: Screws not provided – depends on display type) 4-6 needed, customer supplied Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
  • Page 4 STEP 10: Using the diagram shown in Figure4, fasten the brackets with the 4 or 6 screws suited to your LCD Display type. Figure 4 (NOTE: All cabling should now be complete; access to the back is limited once the display is secured) PDS-32/42/46/47/52/55 Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
  • Page 5 Making sure all cables have been connected, lower the display into the enclosure and secure with drill (Figure8), proceed to Step 18. Fixture Holes Figure 7 Figure 8 PDS-32/42/46/47/52/55 Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
  • Page 6 To Lower: Loosen the fittings, rotate the bracket, lower and fasten to increase the distance between the display and the window (figure10). Figure 10 Figure 9 Rotate brackets to lower. Raise brackets to raise. PDS-32/42/46/47/52/55 Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
  • Page 7: Parts List

    STEP 17: Once the LCD fits correctly, remove the display, set down in a safe area and then lock the enclosure  NOTE: Armagard recommend that all enclosures should be securely attached to the wall before fitting the display, to avoid any damage during lifting. PROCEED TO WALL MOUNTING NOTE: For maintenance advice, see pages 14-15 for filters, thermostats and display cleaning.
  • Page 8 (Figure14). Making sure the mounting slots are fitted to the lower half of the unit, then equally space and secure the brackets with M8 washers and bolts. Figure14 Mounting slots on the lower half PDS-32/42/46/47/52/55 Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
  • Page 9: Wall Plate

    STEP 25: Finally use both M6 x 25 screws on the outward facing sides of both enclosures brackets then tighten with a Phillips screw driver until the bracket and wall plate are clamped together tightly (Figure17). Figure16 Figure17 PDS-32/42/46/47/52/55 Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
  • Page 10: Locking Bar

    STEP 29: Attach a padlock (Not Supplied) and once the locking bar is secure, open the enclosure and secure the cables then display, then lock up and power up. All done. Thank you... The Armagard Team PDS-32/42/46/47/52/55 Installation Manual Page |...
  • Page 11 To reconfigure the controller board, you’ll need the setup kit which is provided by Armagard as an optional extra. All controller boards are automatically set-up with default temperatures (below), if you want to change these settings then follow the below instructions.
  • Page 12 Now click connect, highlighted in figure 3 box 3 above. PDS-32/42/46/47/52/55 Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
  • Page 13 Centigrade) or ‘F’ (for (Fahrenheit) followed by the return key, such as 40C. NOTE: The menu will time out after 30 seconds if no commands are received and the system will switch back on. PDS-32/42/46/47/52/55 Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
  • Page 14: Maintenance

     Screws & Padlock – Check the safety screws are tight and padlock if the locking bar is secure and not been tampered with. PDS-32/42/46/47/52/55 Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
  • Page 15 3. Do not use enclosures in environments or sheltered areas where the average ambient temperature is higher than the operating temperature of your display without an air-conditioning module. PDS-32/42/46/47/52/55 Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
  • Page 16 For additional support, visit www.Armagard.com or call Free (US): 1-866-434-0807 PDS-32/42/46/47/52/55 Call Free (UK): 0121-608-7210 Installation Manual Page | Toll Free (US): 1-866-434-0807 www.Armagard.com Call (UK): 0121-608-7210...
