T i l t H e a d C B
Innovative Camera Supports

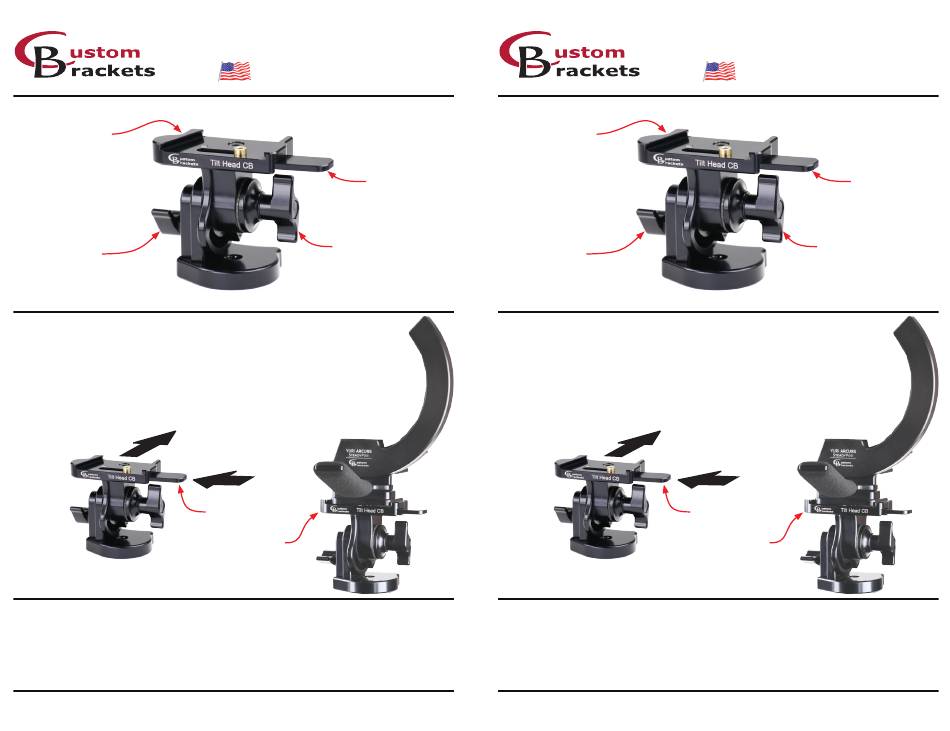

Tilt Head CB Features
Custom Brackets
style quick release
Tilt drag knob
(rotate clockwise
to tighten)
Attaching the bracket to the tilt head quick release
Attach the bracket to the quick release by pushing in the push bar, and while
holding the push bar in, slide the bracket into the quick release from the front.
Figure #2 shows the bracket in the quick release.
Figure #10
Attaching the Tilt Head CB to a monopod
Attach the Tilt Head CB to the monopod's ⅜"-16 mounting stud and tighten until firmly attached.
* * * * * Caution * * * * *
If you are using a monopod with a ¼"-20 mounting stud, you will need to purchase a ⅜" to ¼" reducer
bushing and install it in bottom of the Tilt Head's base.
If you are attaching the Tilt Head CB to the Manfrotto 685B monopod and would like to prevent the
Tilt Head from twisting on the monopod, see the accessory ATP (Anti-twist Pins).
I N S T R U C T I O N S
Cleveland, Ohio 44143
phone: 446-446-0819
toll free: 800-530-2289
website: www.custombrackets.com
email: info@custombrackets.com
Made in USA
Quick Release
push bar
Tilt lock knob
(rotate counter-clockwise
to tighten)
Front View
Quick Release
push bar
Custom Brackets
style quick release
Figure #11
T i l t H e a d C B
32 Alpha Park
Innovative Camera Supports
Custom Brackets
style quick release
Tilt drag knob
(rotate clockwise
to tighten)
Attaching the bracket to the tilt head quick release
Attach the bracket to the quick release by pushing in the push bar, and while
holding the push bar in, slide the bracket into the quick release from the front.
Figure #2 shows the bracket in the quick release.
Attach the Tilt Head CB to the monopod's ⅜"-16 mounting stud and tighten until firmly attached.
If you are using a monopod with a ¼"-20 mounting stud, you will need to purchase a ⅜" to ¼" reducer
bushing and install it in bottom of the Tilt Head's base.
If you are attaching the Tilt Head CB to the Manfrotto 685B monopod and would like to prevent the
Tilt Head from twisting on the monopod, see the accessory ATP (Anti-twist Pins).
I N S T R U C T I O N S
Made in USA
Tilt Head CB Features
Front View
Quick Release
push bar
Custom Brackets
style quick release
Figure #10
Attaching the Tilt Head CB to a monopod
* * * * * Caution * * * * *
32 Alpha Park
Cleveland, Ohio 44143
phone: 446-446-0819
toll free: 800-530-2289
website: www.custombrackets.com
email: info@custombrackets.com
Quick Release
push bar
Tilt lock knob
(rotate counter-clockwise
to tighten)
Figure #11
