WaveNet Site Survey Tool User's Manual

Document: UM-1000

Revision Level B

INSTRUCTION MANUAL

R.C. SYSTEMS CO. INC.

WaveNet Site Survey Tool

Warning: Read & understand contents of this manual prior to

operation. Failure to do so could result in serious injury or death.

PH. 409-986-9800 FAX 409-986-9880

8621 HWY 6 HITCHCOCK, TX 77563

Website:

http://www.rcsystemsco.com

Table of Contents

Need help?

Do you have a question about the WaveNet and is the answer not in the manual?

Questions and answers

Summary of Contents for RC System WaveNet

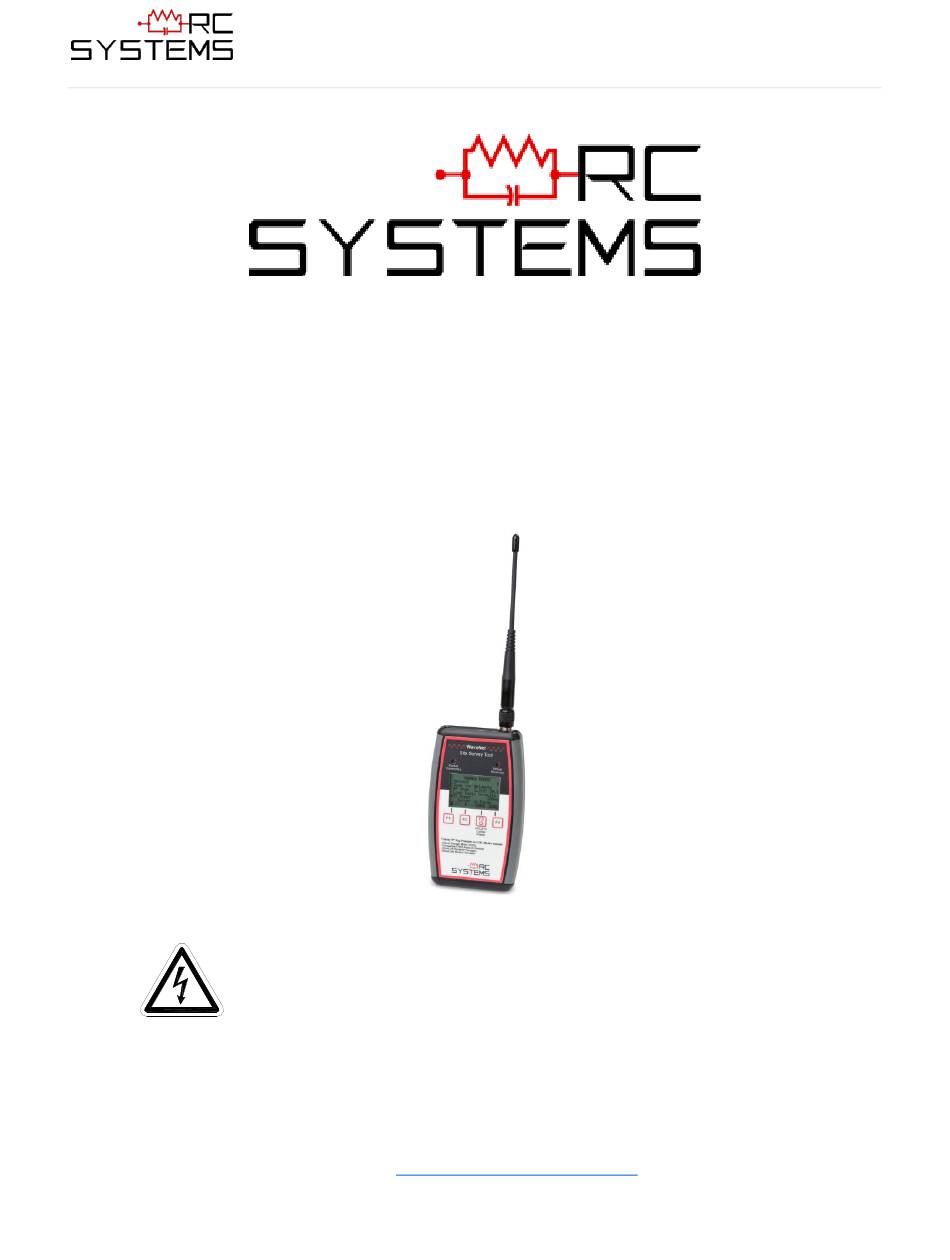

Page 1 WaveNet Site Survey Tool User's Manual Document: UM-1000 Revision Level B INSTRUCTION MANUAL R.C. SYSTEMS CO. INC. WaveNet Site Survey Tool Warning: Read & understand contents of this manual prior to operation. Failure to do so could result in serious injury or death.
Page 2 WaveNet Site Survey Tool User's Manual Document: UM-1000 Revision Level B (Page intentionally left blank)
Page 3: Table Of Contents
WaveNet Site Survey Tool User's Manual Document: UM-1000 Revision Level B Table of Contents WaveNet Site Survey Toolkit (SST) General Description ................4 Operator Interface and Menus ........................5 Function Keys: ............................5 Power Up and Network Discovery Scan: ....................6 Main Menu: ...............................
Page 4: Wavenet Site Survey Toolkit (Sst) General Description
 Spare 9V Lithium non-rechargeable battery.  Carry case. The hand-held WaveNet Site Survey Tool (SST) is designed with modes of operation for simulating R. C. Systems WaveNet products including WaveCast Monitors (WCM’s), WaveLink Receivers (WLR’s) and WaveNet Relayers (WNR’s). SST’s are supplied with either a 900MHz or...
Page 5: Operator Interface And Menus
However, it is highly recommended that two SST’s be used to survey sites and approve WaveNet device locations prior to installation. One SST may be set as a SERVER in Rx (receive) mode while another may be set as a CLIENT in Tx (transmit) mode. The SERVER SST simulates either a WLR or WNR location while the CLIENT simulates WCM locations.
Page 6: Power Up And Network Discovery Scan
(A through Z), and firmware version. The SST then scans each of the possible 26 WaveNet networks to discover if any Servers already exist and within range. Only one Server is allowed per network and the SST has built in protection to avoid itself operating as a Server that might interfere with an existing network.
Page 7: Simulate Rx Mode
SST discovers another Server it will not function as Server for this network and another network may need to be selected. The Simulate Rx mode is also recommended and very useful for simulating WaveNet Relayer locations during a site survey since Relayers have identical radio settings as WaveLink Receivers.
Page 8: Simulate Tx Mode
WaveNet Site Survey Tool User's Manual Document: UM-1000 Revision Level B  Remote Status – Pathway to screen displaying the following for a given channel: o Remote Id = The Channel # the other data displayed on this screen is for.
Page 9 The Simulate Tx Mode allows the SST to simulate a WaveCast Monitor (WCM) and transmit data to WaveLink Receivers and WaveNet Relayers. The Radio Setup menu will only allow operation as a Client in this mode. To avoid accidental transmission to an active channel, the default channel for this mode is diagnostic channel 33.
Page 10: Radio Setup
This menu is for configuring the SST’s 900MHz or 2.4GHz radio. Network – WaveNet devices utilize the Network setting to assign up to 26 unique hopping patterns. To simplify system setup, Network is entered using letter designators A through Z where A = [Hop Channel 1, System ID 1] and Z = [Hop Channel 26, System ID 26].
Page 11: Setup Utilities
WaveNet Site Survey Tool User's Manual Document: UM-1000 Revision Level B Setup Utilities: S E T U P U T I L I T Y ► B a c k l i g h t T i me r A u t o...
