Intova Supernova Quick Start Manual

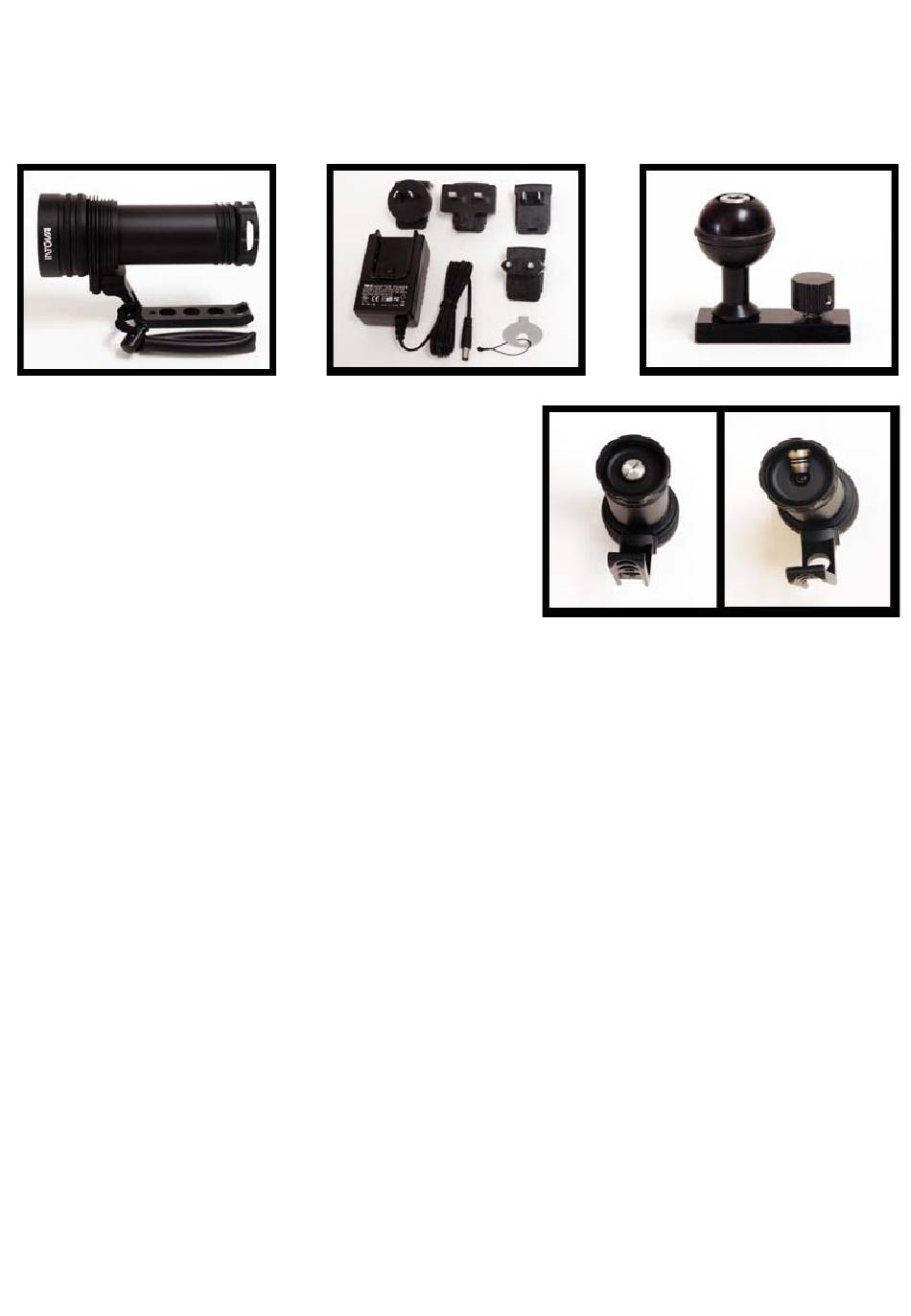

INCLUDED IN PACKAGE: Supernova torch, AC charger set, Video mount.

CHARGE TORCH FULLY BEFORE USE:

1) Unscrew charger port cover on back of torch
body (battery comaprtment) with supplied key.
2) Attach appropriate plug version to charger.
3) Plug AC charger into electrical outlet.
4) Plug adapter into charging port on back of
torch body (battery compartment).
5) Charge 2.5 to 3 hours until the red light on
charger turns to green.
6) Before use, make sure to tighten both the charger port cover (using supplied key) to
charger port and the body (battery compartment) to torch firmly. Leakage through
charger port or body due to improper usage or O-ring maintenance WILL NOT be
covered by warranty.
7) Recharge as needed. When charging, do not use the torch.

SWITCH OPERATION:

1) Depress power switch once for full power output.
2) Depress power switch twice for 30% power output.
3) Depress power switch 3 times for OFF.
4) Depress power switch and hold for few seconds for strobe function.

MAINTENANCE AND STORAGE:

1) Rinse thoroughly in cold water after every use.
2) After rinsing torch, be sure to wipe off any remaining water.
3) Remove charger port cover and make sure it is clean. Lightly lubricate O-rings with
silicon grease before reinstalling.
4) If body (battery compartment) is to be removed (such as for international transport)
from torch, make sure screw threads and O-rings are clean and lightly lubricate the
O-rings before reinstalling.
5) Store in a cool, dry environment.
6) Do not disassemble torch or warranty will be voided.

Quick Start Guide
